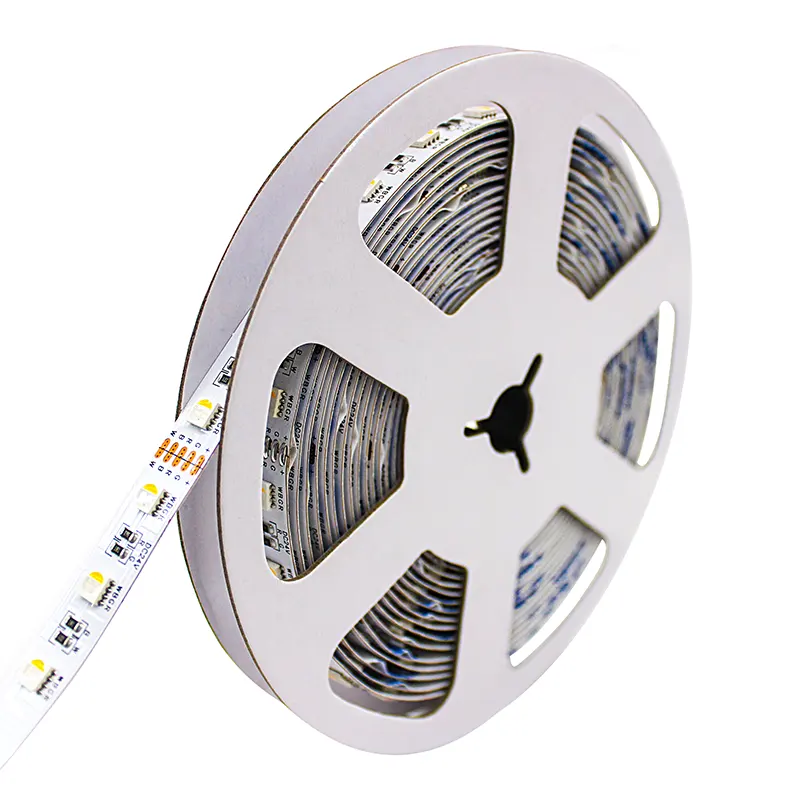

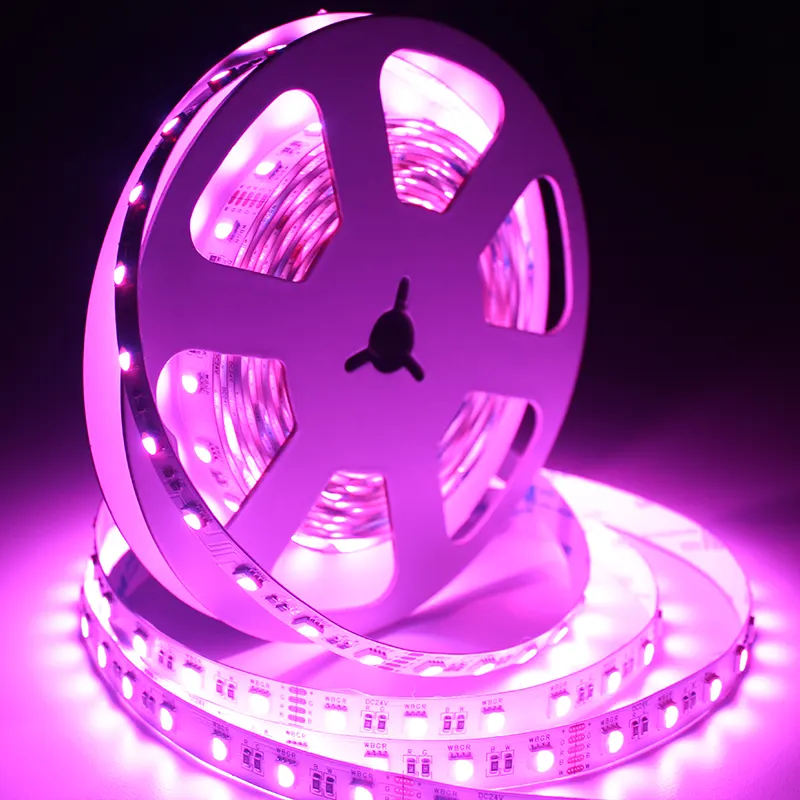

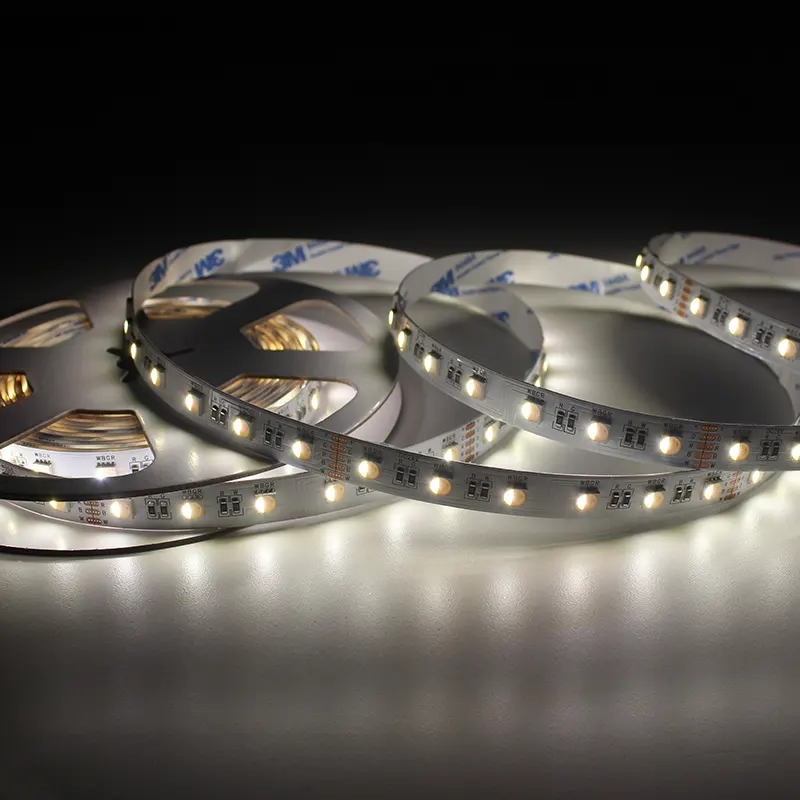

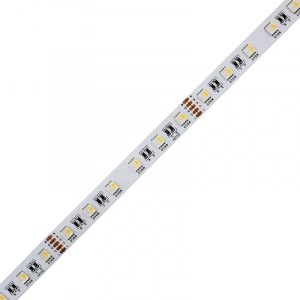

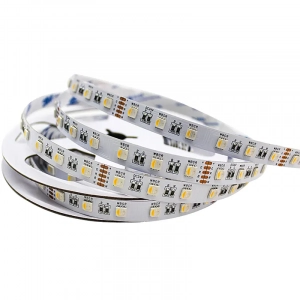

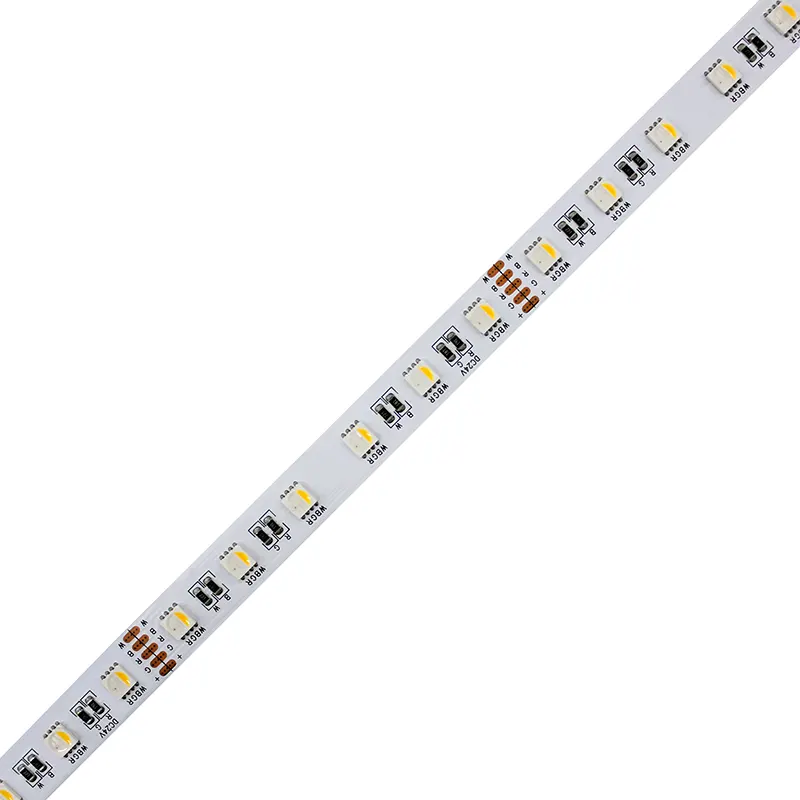

RGBW LED Strip Light with SMD5050 60LEDs/M

Need white and RGB colour changing light within one single strip, no problem! This Unitop RGBW LED Strip Light is with 4-in-1 LEDs. There are four colors in one single chip: Red, Green, Blue, White(2700K or 4000K or 6000K). Our RGBW LED Strip is ideal to use when a colour changing light and white light is required in one location from one LED strip. Previously to achieve the same lighting effect, two separate LED strips would need to be used. Now you only need one LED strip.

Model No.UTFS-MC6060-2412RGBW
LED Qty:60pcs/m
Voltage:DC24V
Wattage:16W/M
Color:RGBW

RGBW LED Strip Light with SMD5050 60LEDs/M from Unitop

Four channel flexible led strip with RGB+W/NW/CW, 4 in1 chip SMD.

Six leds per unit can be cut according to printing marks.

CRI 90Ra available for White color.

Offer different IP ratings for different applications.

Unitop RGBW LED Strip Light has different colors as below:

color options RGB LED flexible strip
LED Flexible Strip CCT options

Our RGBW LED Strip comes with below IP rating options:

LED Flexible Strip IP Rating Options

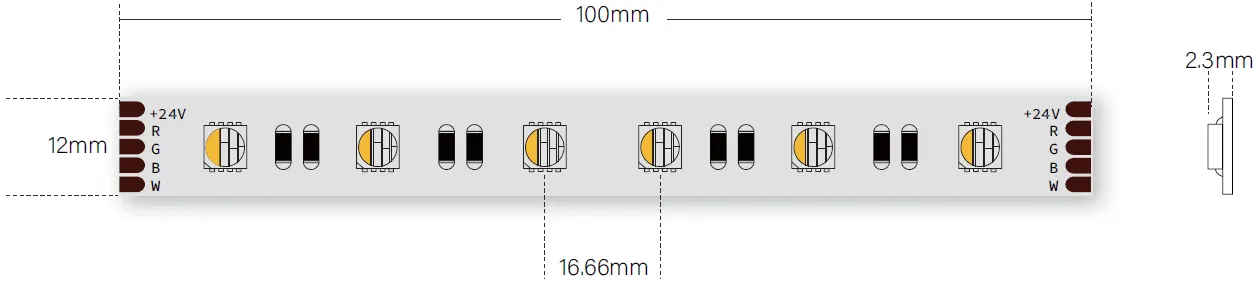

The cutting size of Unitop RGBW LED Lighting Strip:

cutting size RGBW LED Strip Light

This Unitop LED Light Strip RGBW is with below lumen:

  • Color
  • RGBW2700K
  • RGBW3000K
  • RGBW4000K
  • RGBW6000K
  • Efficacy
  • 36.11lm/W
  • 36.11lm/W
  • 38.32lm/W
  • 38.32lm/W
  • Lumen/M
  • 587.2lm/m
  • 587.2lm/m
  • 611.7lm/m
  • 611.7lm/m

How to install our RGBW Flex LED Ribbon? You can find the wire diagram as below:

LED Flexible Strip wiring

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our RGBW LED Strip Light:

Do not install these RGBW lighting strips in a wet area.

Do not install RGBW flexible strip near heat sources or sensitive areas.

Do not bend the RGBW flexible LED tape excessively.

Do not place heavy items on the multi color flex LED strips.

RGBW LED Strip Light with SMD5050 60LEDs/M has a variety of applications.

A. decorative lighting

B. mood lighting

C. signage

D. architectural lighting

E. security lighting

Listed below you will find some examples of the applications:

LED strip light used in bathroom (11)

Bathroom Lighting

LED flex tape used in bedroom (17)

Bedroom Lighting

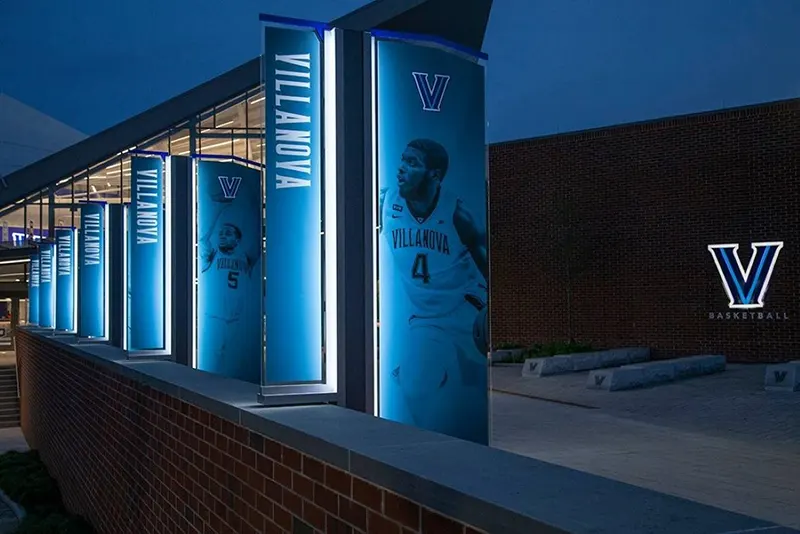

Flex LED ribbon used in commercial and architectural (13)

Commercial Lighting

flexible LED strip lighting used in restaurant (13)

Restaurant Lighting

FAQ of Unitop RGBW LED Strip Light with SMD5050 60LEDs/M:

What is the difference between RGBW and RGB+W?

RGBW is 4 chips in one SMD LEDs, RGB+W is two LEDs, one is RGB SMD5050, the other is white color LEDs.

What is RGBW?

We call it 4-in-1 LEDs, there are 4 chips in one LEDs: Red, Green, Blue and White.

Can I leave the RGBW LED strip lights on all night?

Yes,well-manufactured LED lights are extremely long-lasting and also can be left on 24 hr, 7 days a week. This is because, unlike standard types of light, LEDs generate minimal quantities of heat, which indicates they are unlikely to get too hot or set ablaze.

Specification:

RGBW LED Strip Light with SMD5050 60LEDs/M

IES/LDT Files:

Red | Green | Blue | White 3000K | RGB | RGBW3000K

Spectrum Test Reports:

RGB3000K
