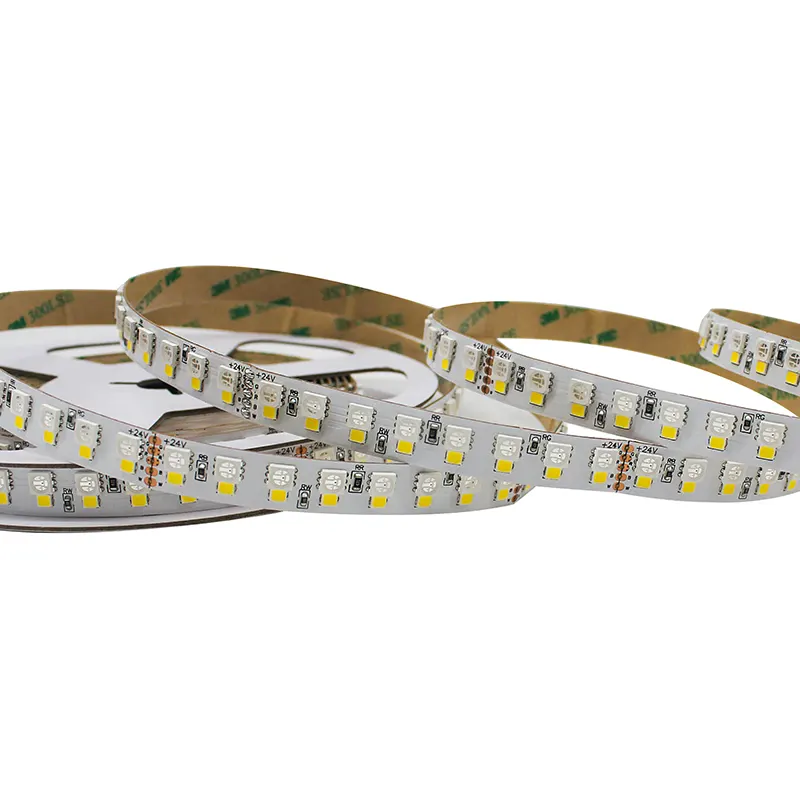

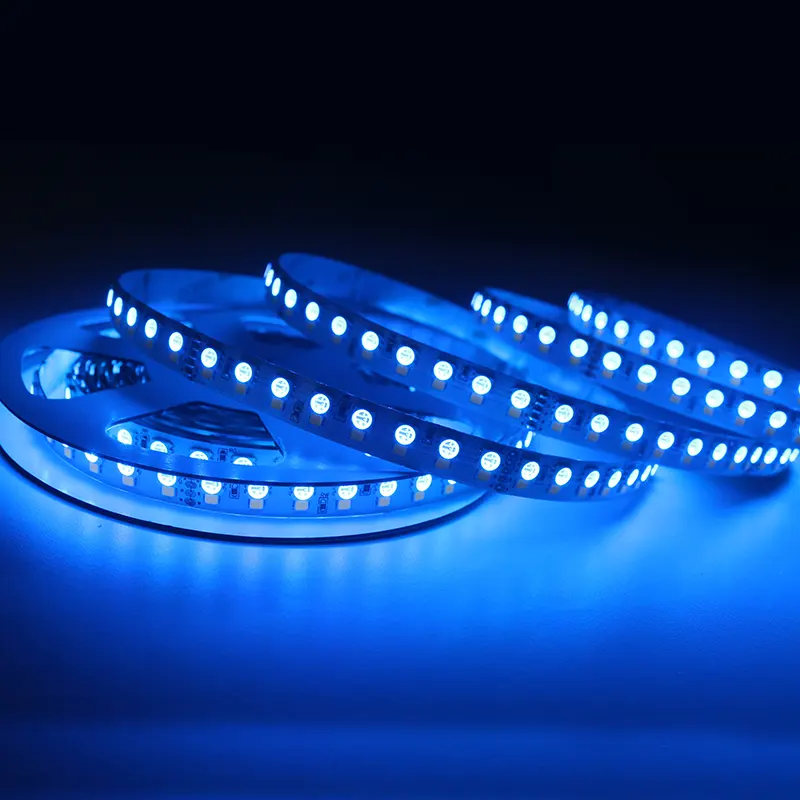

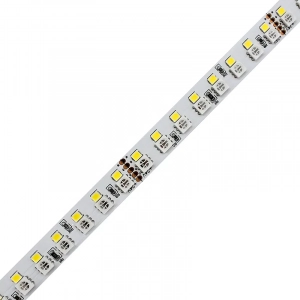

RGB+W LED Flex Ribbon with SMD5050/2835 192LEDs/M

This special designed RGB+W LED Flex Ribbon is with both SMD5050 and SMD2835LEDs. There are two rows of LEDs on the strip. One is SMD5050 which is 3-in-1 RGB color changing, the other is SMD2835, you can choose warm white, natural white or cool white. With this type of LED combination, it will give you more color variations to exceed your expectation.

Model No.UTFS-MC9192-2412RGB+W
LED Qty:192pcs/m
Voltage:DC24V
Wattage:24W/M
Color:RGB+W
GET FREE QUOTE
DescriptionSpecificationApplicationFAQDownloads

RGB+W LED Flex Ribbon with SMD5050/2835 192LEDs/M from Unitop

5050 3in1 RGB and 2835 W/NW/CW combined together, one line is SMD5050 and other is SMD2835.

RGB color plus extra White color means the color variations will be two times more.

192pcs SMD5050+SMD2835 LEDs/M means you do not need to worry about the brightness, it will make the flex ribbon perfectly for some projects which requires highest lumen.

Unitop RGB+W LED Flex Ribbon with SMD5050/2835 192LEDs/M has different colors as below:

color options RGB LED flexible strip
LED Flexible Strip CCT options

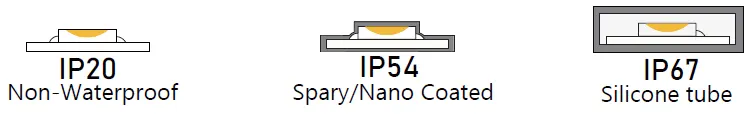

Our RGB+W LED Flex Ribbon with SMD5050/2835 192LEDs/M comes with below IP rating options:

IP Options RGBW

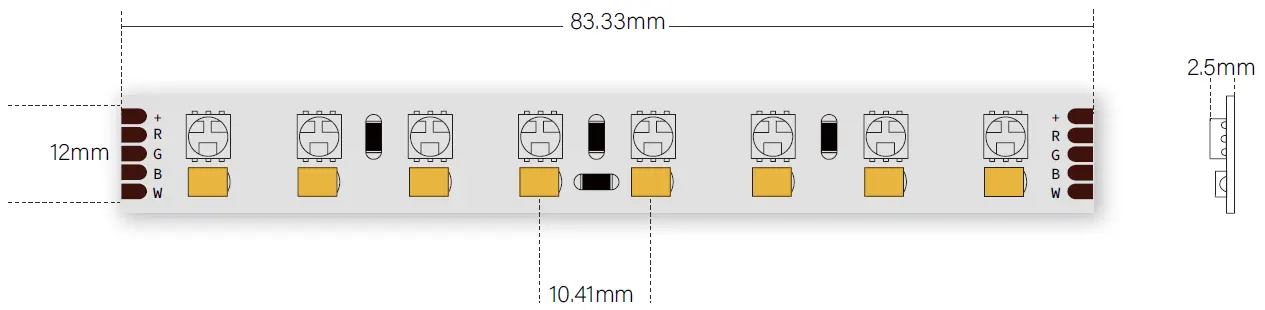

The cutting size of Unitop Flex Strip RGB+W:

cutting size RGBW LED Flex Ribbon

This Unitop LED Light Strip RGB+W is with below lumen:

  • Color
  • RGB+W2700K
  • RGB+W3000K
  • RGB+W4000K
  • RGB+W6000K
  • Efficacy
  • 77.16lm/W
  • 77.16lm/W
  • 79.21lm/W
  • 79.21lm/W
  • Lumen/M
  • 1853lm/m
  • 1853lm/m
  • 1902lm/m
  • 1902lm/m

How to install our RGB Flex LED Ribbon? You can find the wire diagram as below:

LED Flexible Strip wiring

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our RGB+W LED Flex Ribbon with SMD5050/2835 192LEDs/M:

Do not apply extreme heat onto the RGB + W LED strip.

Do not pull hard this multi-color LED flexible strip.

Avoid installing these RGB+W flex LED ribbon lights in a humid environment.

In order to avoid damaging or breaking the RGB+W LED strip, please make sure that your power supply is rated as a 24VDC power supply.

RGB+W LED Flex Ribbon with SMD5050/2835 192LEDs/M has a variety of applications.

The RGB+W LED flex ribbon can be used in many different applications. One of the most common applications is in LED strips that are used to light up the interior of cars. These LED strips are often used to light up the dashboard or other areas that are dark or hard to see. The RGB LED flexible strip can also be used to create unique lighting effects in homes, offices, and other commercial spaces.

Listed below you will find some examples of the applications:

flexible LED strip lighting used in restaurant 2

Restaurant Lighting

LED flexi strip used in Kitchen (77)

Kitchen Lighting

Flex LED ribbon used in commercial and architectural (17)

Commercial Lighting

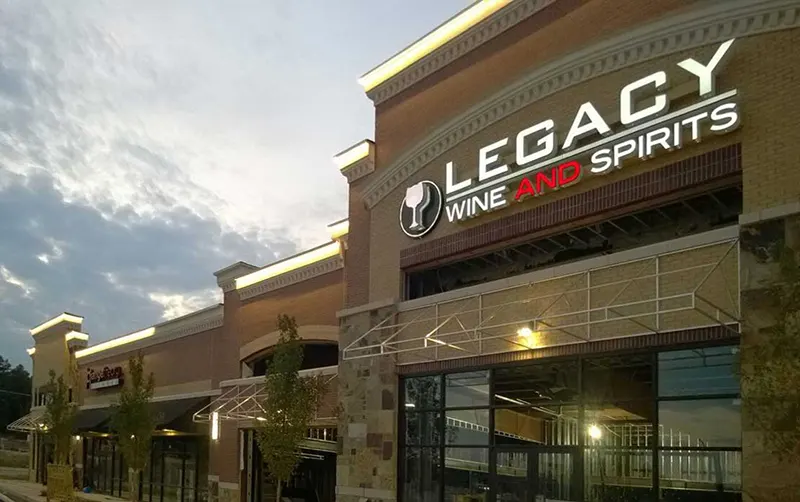

Flex LED ribbon used in commercial and architectural (15)

Signage Lighting

FAQ of Unitop RGB+W LED Flex Ribbon with SMD5050/2835 192LEDs/M:

What is the meaning of RGB+W?

RGB stands for Red, Green, and Blue. W means White.

Do RGB+W LED strip lights require a driver?

Yes, you need LED driver plus a controller to control the color changes.

Are RGB+W LED strip lights water resistant?

No, while you can get water resistant and also splashproof strip lighting from us. Our water resistant strip lighting is tightly sealed within a silicone tube, so they can be used securely pretty much anywhere you want.

Specification:

RGB+W LED Flex Ribbon with SMD5050/2835 192LEDs/M

IES/LDT Files:

RGB+3000K

Spectrum Test Reports:

RGB+3000K
