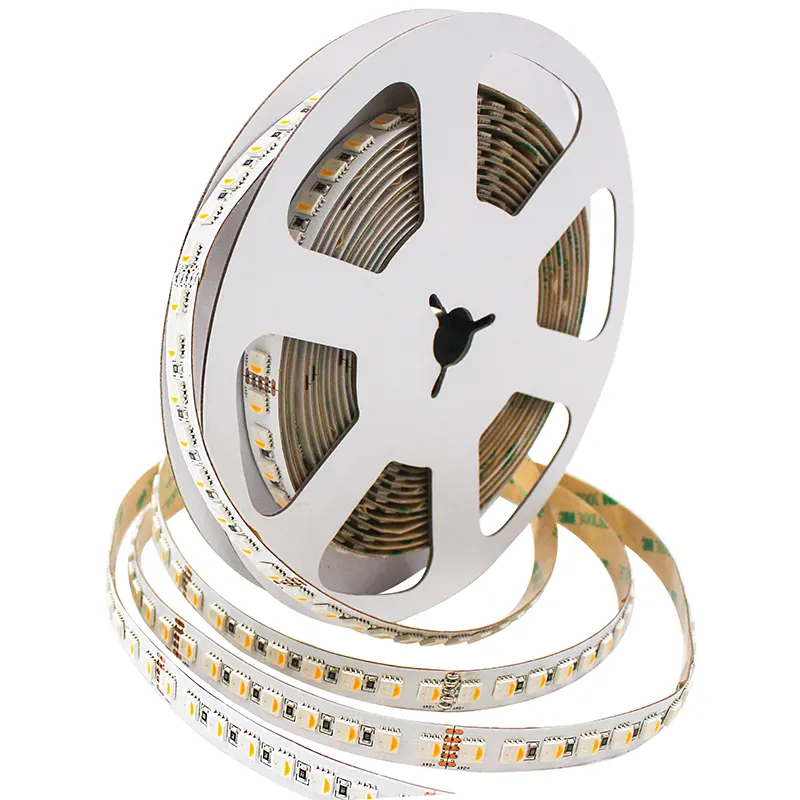

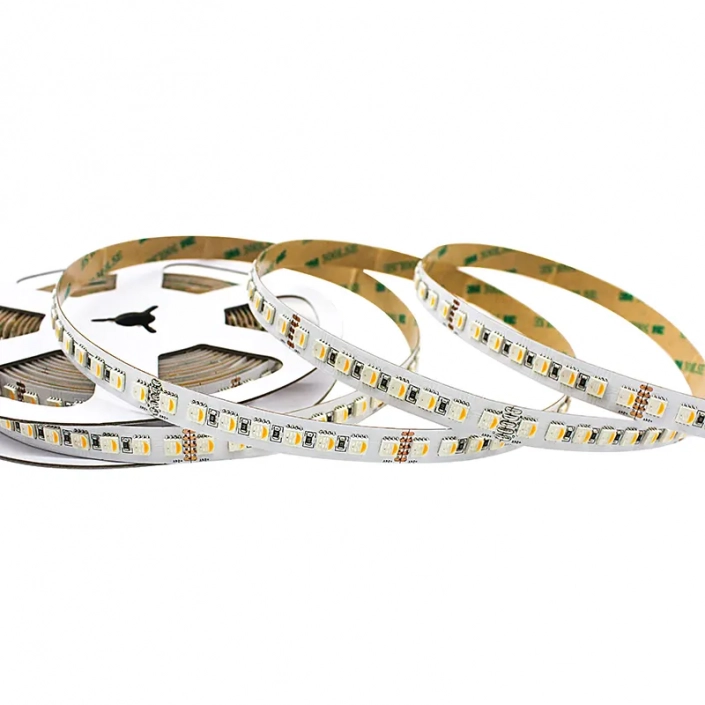

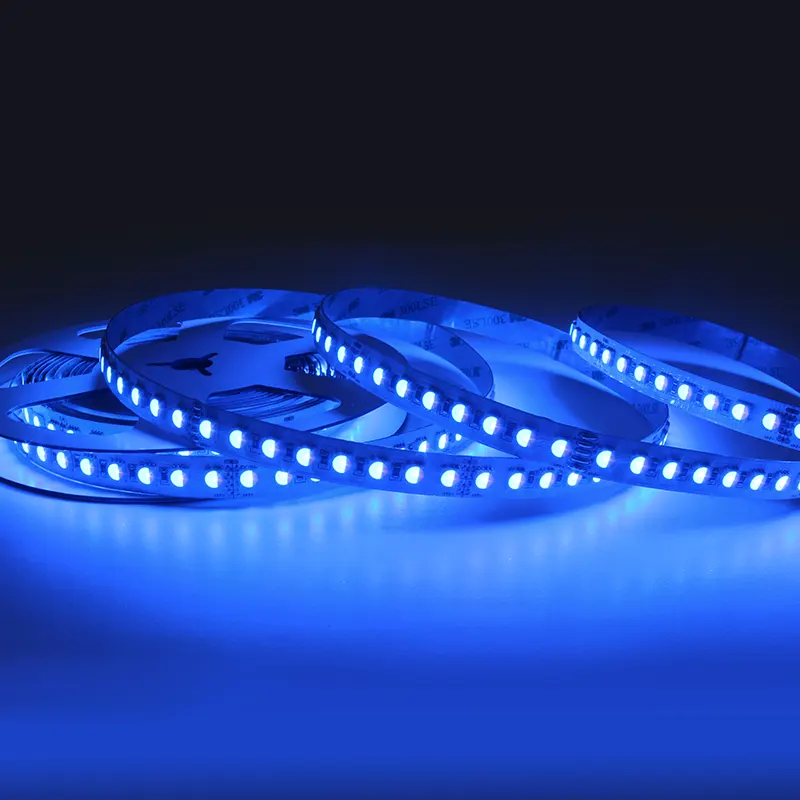

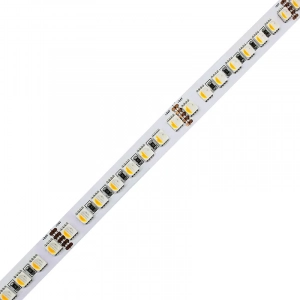

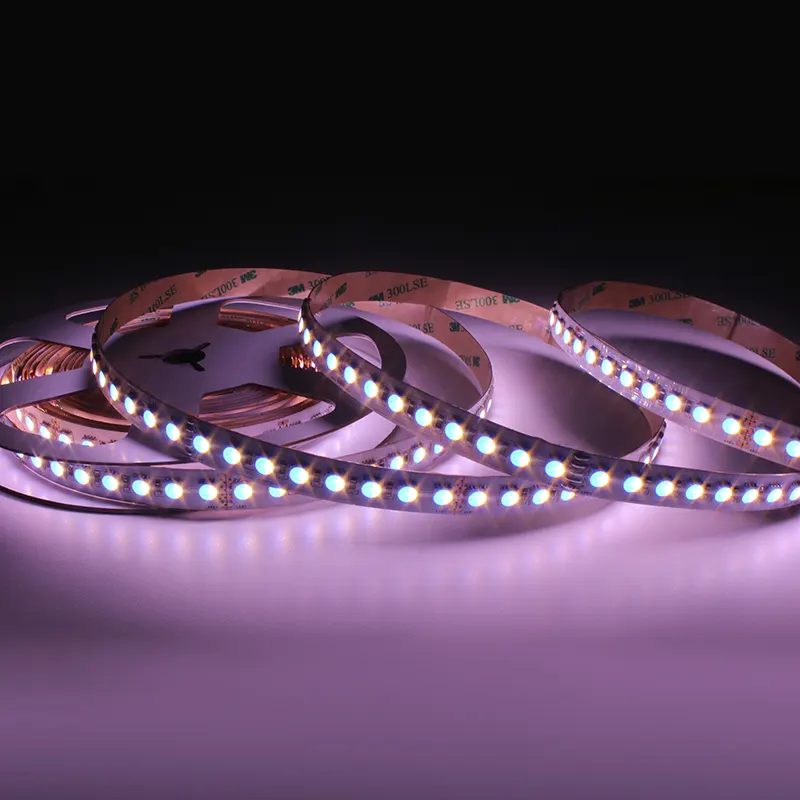

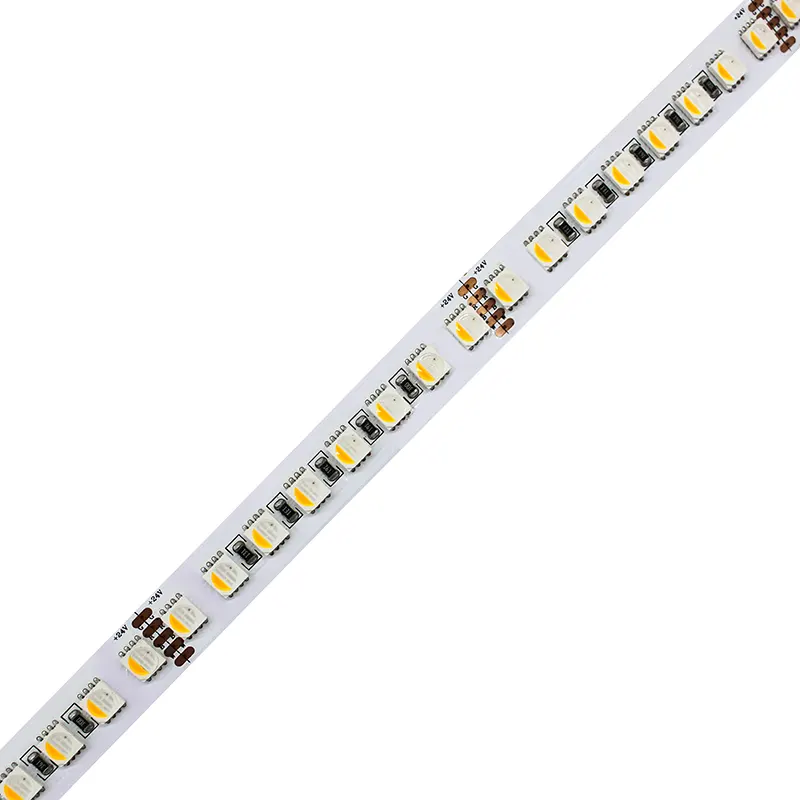

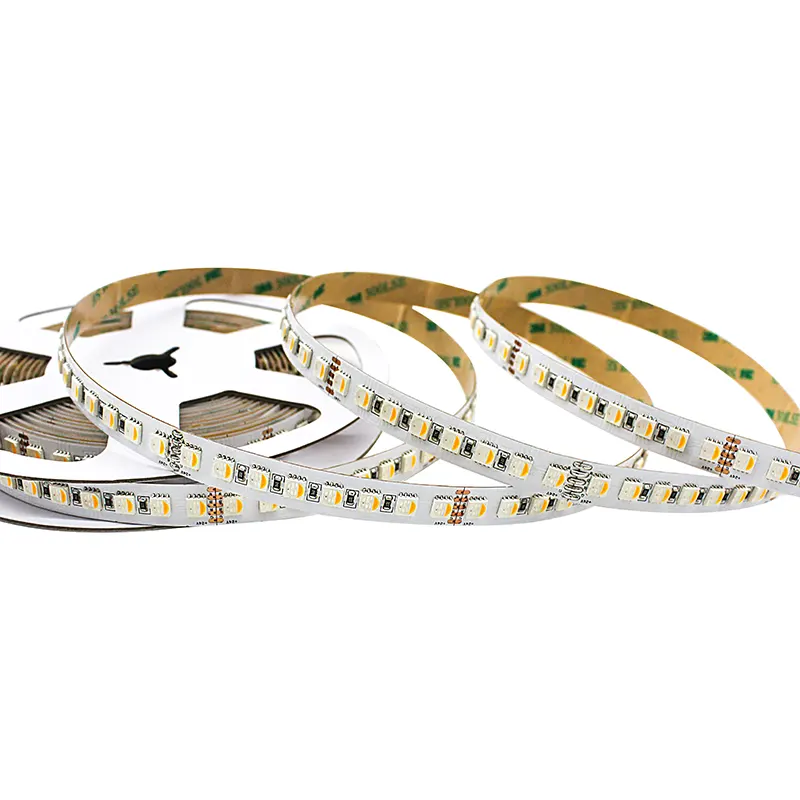

RGBW 4 in 1 LED Strip with SMD5050 112LEDs/M

Perfect for your home and office decor, this RGBW 4-in-1 LED strip is a great way to brighten up your space and show off your personality. It’s the perfect solution for those who want to add a little more vibrancy to their home or workplace without spending too much.

Model No.UTFS-MC6112-2412RGBW
LED Qty:112pcs/m
Voltage:DC24V
Wattage:22W/M
Color:RGBW

RGBW 4 in 1 LED Strip with SMD5050 112LEDs/M from Unitop

RGBW 4 different color chips in one LEDs: Red, Green, Blue, and White. More color variations available.

112LEDs/M means the RGBW LED strip is high density. If your installation is very high, this maybe the suitable solution for you.

Standard white CRI is 80Ra, we also have 90Ra or even more for choice.

Standard IP rating is IP20, we also have IP54, IP65, IP67 or IP68 for your different requirements.

Unitop RGBW 4 in 1 LED Strip has different colors as below:

color options RGB LED flexible strip
LED Flexible Strip CCT options

Our RGBW LED Flexible Strip comes with below IP rating options:

LED Flexible Strip IP Rating Options

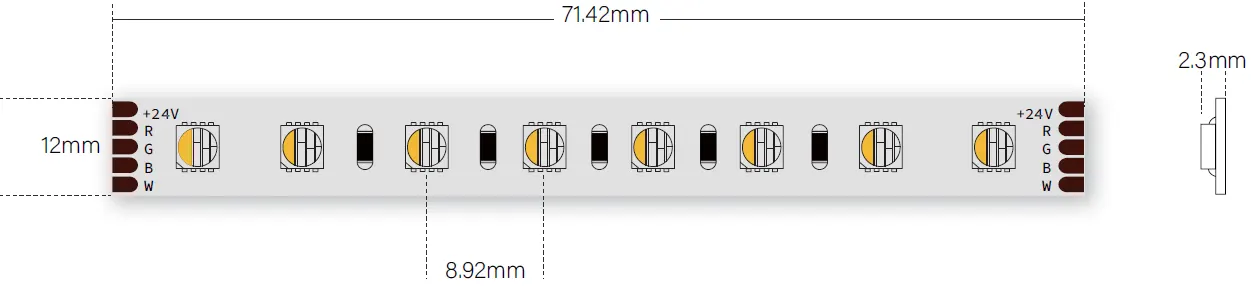

The cutting size of Unitop RGBW 4 in 1 LED Strip:

cutting size RGBW 4 in 1 LED Strip

This Unitop LED Light Strip RGBW is with below lumen:

  • Color
  • RGBW2700K
  • RGBW3000K
  • RGBW4000K
  • RGBW6000K
  • Efficacy
  • 60.04lm/W
  • 60.04lm/W
  • 61.59lm/W
  • 61.59lm/W
  • Lumen/M
  • 1321lm/m
  • 1321lm/m
  • 1384lm/m
  • 1384lm/m

How to install our RGBW Flex LED Ribbon? You can find the wire diagram as below:

LED Flexible Strip wiring

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our RGBW 4 in 1 LED Strip:

Do not place this RGBW LED strips near water or moisture.

Do not expose this flexible strip RGBW to extreme temperatures.

Do not exceed the max voltage specified on the power supply.

To prevent any damage to the RGBW flex LED strip, please do not puncture, or incinerate the product.

RGBW 4 in 1 LED Strip with SMD5050 112LEDs/M has a variety of applications.

Some possible application areas of RGBW 4 in 1 LED strip are as follows:

– Illumination

– Artwork

– Ambient Lighting

– Decoration

– Mood Lighting

Listed below you will find some examples of the applications:

LED strip light used in bathroom (11)

Bathroom Lighting

LED flex tape used in bedroom (17)

Bedroom Lighting

Flex LED ribbon used in commercial and architectural (17)

Commercial Lighting

flexible LED strip lighting used in restaurant (14)

Restaurant Lighting

FAQ of Unitop RGBW 4 in 1 LED Strip with SMD5050 112LEDs/M:

Do Unitop RGBW LED strips have a sticky on the backs of the strips?

Unitop LEDs strip lights have a 3M adhesive tape that enables a really simple and safe installment.

How do LEDs produce light?

In the middle of the LED SMD there is an N-type and also a P-type semiconductor. The N-type has electrons and also the P-type has holes. The holes and also electrons rapidly cross the gap and then merge with each other. As they integrate, it produces photons which finally generates bits of light.

Specification:

RGBW 4 in 1 LED Strip with SMD5050 112LEDs/M

IES/LDT Files:

Red | Green | Blue | White 4000K | RGB | RGBW4000K

Spectrum Test Reports:

RGBW4000K
