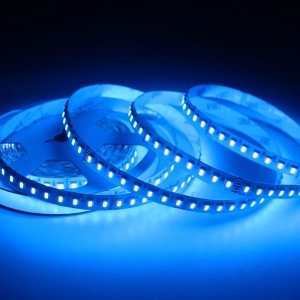

RGBWW 5 in 1 LED Lighting Strip with SMD5050 112LEDs/M

RGBWW 5 in 1 LED Lighting Strip is already the latest multi-color LED strip light, what if your project requires even brighter LED strips? Here it is, this RGBWW flex LED strip is using 112pcs SMD5050 LEDs which makes the lumen as high as around 2280lm/M. Try immediately please!

Model No.	UTFS-MC6112-2412RGBWW
LED Qty:	112pcs/m
Voltage:	DC24V
Wattage:	32W/M
Color:	RGBWW

Description Specification Application FAQ Downloads

RGBWW 5 in 1 LED Lighting Strip with SMD5050 112LEDs/M from Unitop

High density version RGBWW LED lighting strip with 2280lm/M.

RGBWW means 5 in 1: 5 different colors LED chips in one single LEDs.

24VDC working voltage means it is quite safe for DIY projects.

IP20~IP68 IP rating options provides more installation conditions.

Unitop RGBWW 5 in 1 LED Lighting Strip has different colors as below:

Our RGBWW 5 in 1 LED Lighting Strip comes with below IP rating options:

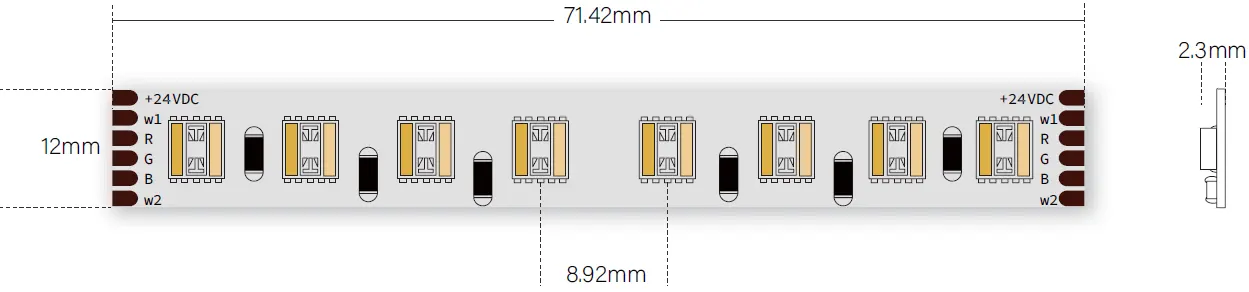

The cutting size of Unitop Flexible Strip RGBWW:

cutting size RGBWW 5 in 1 LED Lighting Strip

This Unitop RGBWW 5 in 1 LED Lighting Strip is with below lumen:

Color
RGBWW(1800K+6500K)

Efficacy
69.74lm/W

Lumen/M
2282lm/m

How to install our RGBWW LED Ribbon Strip? You can find the wire diagram as below:

Want to know the packing information? See below:

Below two cautions need your highest attention:

Please also pay attention to below issues while installing our RGBWW 5 in 1 LED Lighting Strip:

DO NOT mount the RGBWW LED strip entirely on or around a sharp edge.

The RGBWW LED flexible strip is very thin and fragile, so please do not bend the LED strip more than 180 degrees around the strip.

Do not connect the RGBWW LED strip to a power supply that is less than 24V.

Do not touch the LED lighting strip RGBWW while it is powered on.

RGBWW 5 in 1 LED Lighting Strip with SMD5050 112LEDs/M has a variety of applications.

The applications of RGBWW LED flexible strip are limitless. This product can be used for decoration, such as under furniture, stairs, and cabinets.

The RGBWW 5 in 1 LED flexible lights can also be used to light up a room with ambient light and change the mood of the room.

Many people use this product for decorative purposes since it can be placed in hard to reach areas and light up a dark space. The bright colors and customizable options make this product a perfect addition to any home.

Listed below you will find some examples of the applications:

Kitchen Lighting

Restaurant Lighting

Commercial Lighting

Architectural Lighting

FAQ of Unitop RGBWW 5 in 1 LED Lighting Strip with SMD5050 112LEDs/M:

What is the difference between RGB and RGBW and RGBWW?

RGB is 3 in 1, RGBW is 4 in 1, and RGBWW is 5 in 1. The latter has more color variations.

Can you cut RGBWW Flexible LED strip lights?

Due to the fact that they are versatile, LED Strip Lighting are one of the most flexible types of lighting offered as well as this is not just. They can also be cut to custom lengths, which means they can be potentially made to satisfy the demands of any type of installation whether big or small.
