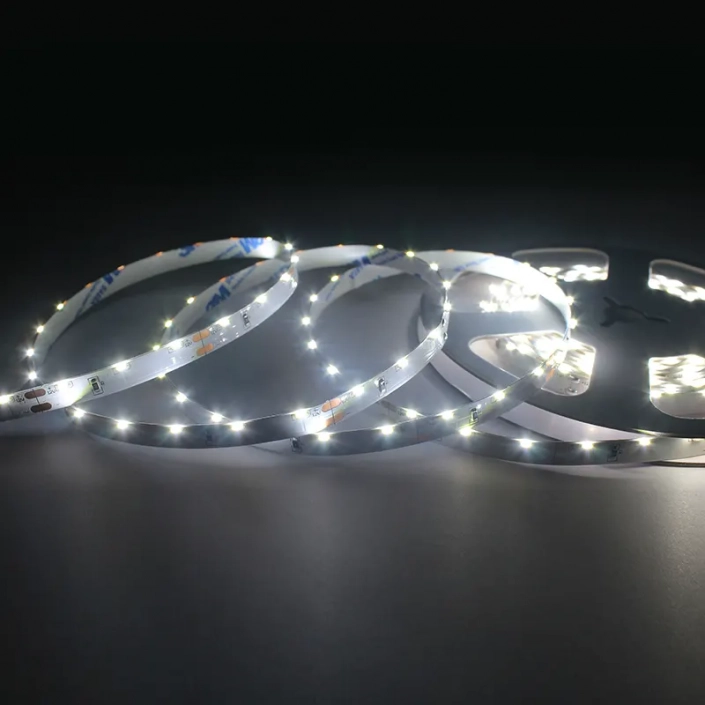

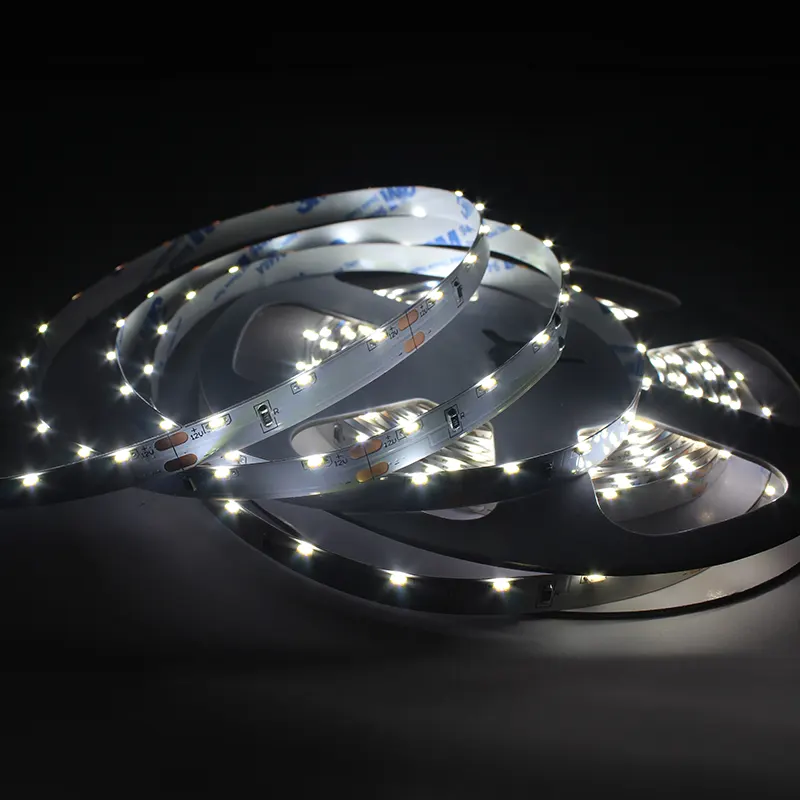

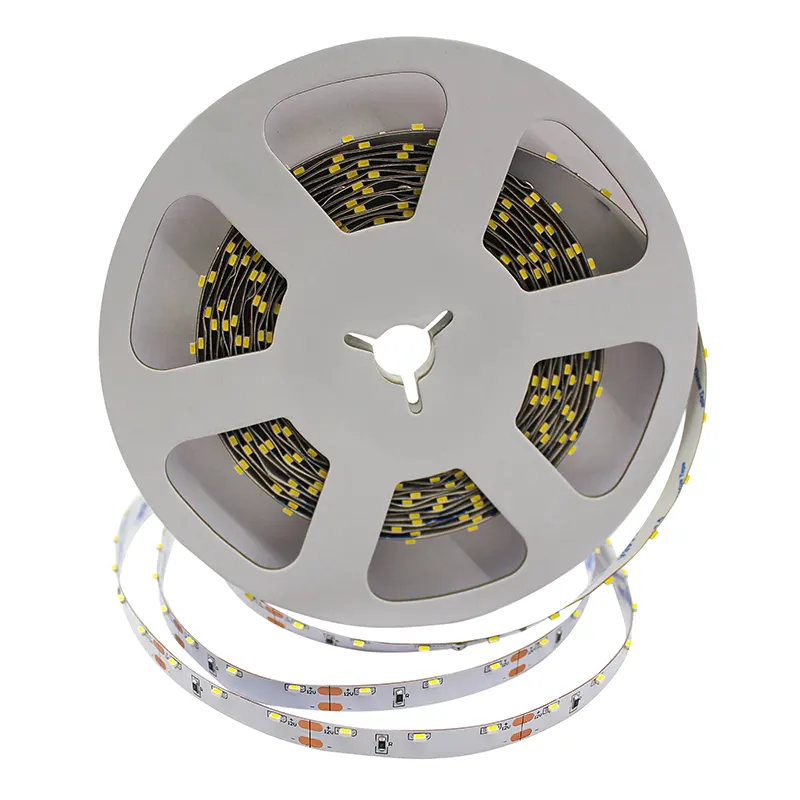

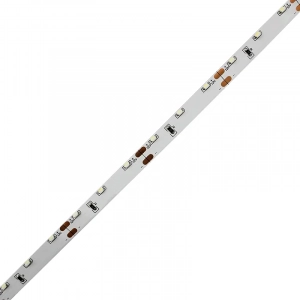

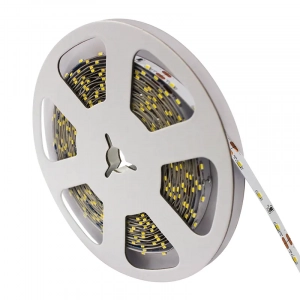

Side Emitting LED Strip with SMD3014 60LEDs/M

With an even, side-emitting light on both sides, this Side-Emitting LED Strip is perfect for illuminating spaces under cabinets, bars, workbenches, or stairs. The high-efficiency design uses low voltage and provides a powerful light that’s easy to install. You can cut this strip to the length you need, so it’s perfect for any application.

Model No.UTFS-SE4060-1208
LED Qty:60pcs/m
Voltage:DC24V
Wattage:4.8W/M
CCT:2700K/3000K/4000K/6000K
CRI:>80Ra

Side Emitting LED Strip with SMD3014 60LEDs/M from Unitop

With energy-efficient SMD3014 side view LEDs.

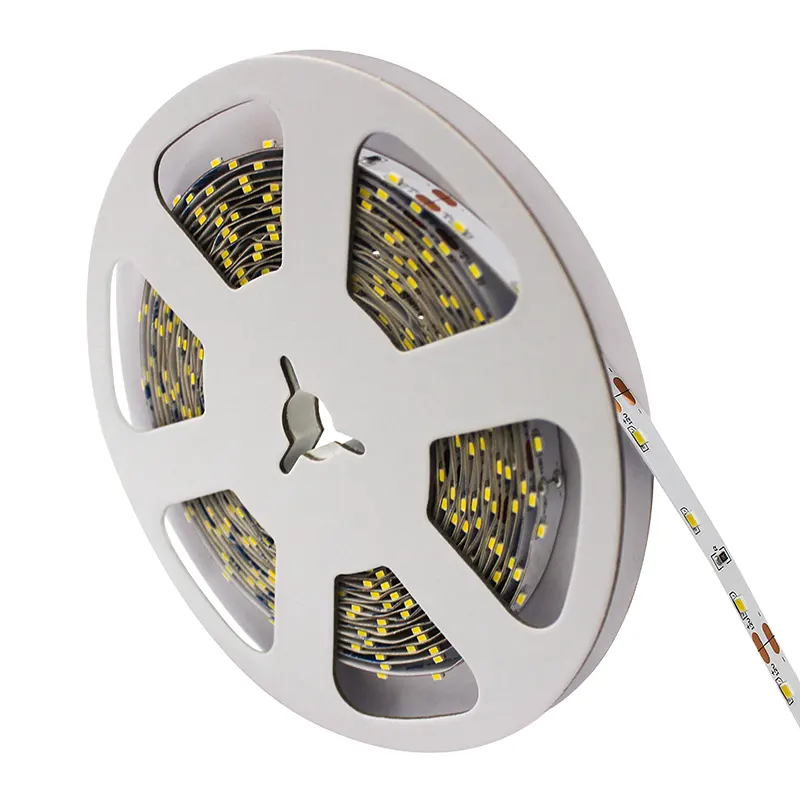

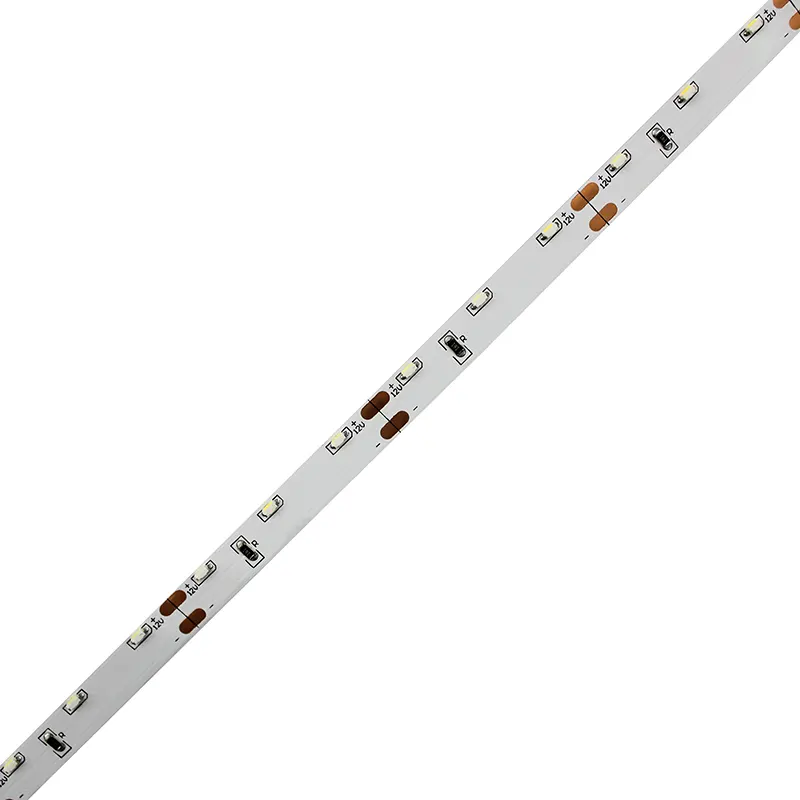

Uses only 8mm width PCB, with a length of 5 meters per reel.

Highly flexible and easy to cut as it is as super thin.

The LED strip consumes very low power, 4.8W for the one meter, and lasts up to 15-20 years.

Unitop Side Emitting LED Strip has below CCT options:

LED Flexible Strip CCT options

Our Side Emitting LED Strip comes with below IP rating options:

IP Options Side Emitting LED Strip

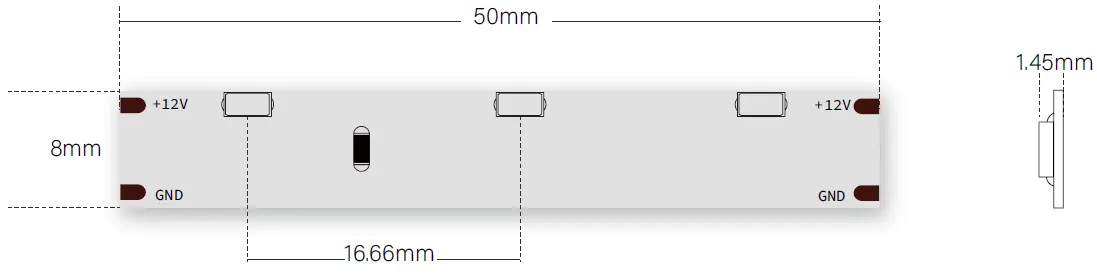

The cutting size of Unitop Side Emitting LED Lighting Strip:

Cutting size Side Emitting LED Strip

This Unitop Side Emitting LED Strip Light is with below lumen:

  • CCT (°K)
  • 2700K
  • 3000K
  • 4000K
  • 6000K
  • Efficacy
  • 91.08lm/W
  • 91.08lm/W
  • 101.29lm/W
  • 101.29lm/W
  • Lumen/M
  • 437.6lm/m
  • 437.6lm/m
  • 486.2lm/m
  • 486.2lm/m

How to install our Side Emitting LED Ribbon? You can find the wire diagram as below:

LED Flexible Strip wiring

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our Side Emitting LED Strip:

Do not install the side-emitting LED strip in a location with high temperatures.

Do not install the side-view LED ribbon in a location with high air humidity.

Do not install the side emitting flex LED in a location with corrosive gas.

Do not install the Side view LED tape where it is wet or in direct contact with water.

Side Emitting LED Strip with SMD3014 60LEDs/M has a variety of applications.

The most common application of the side-emitting LED flexible strip is in advertising. Lighting can be seen from all angles.

Another application is in the automotive industry. It can be used to create an outline of a vehicle on a building or wall for a showroom.

Still another application is in a retail display.

Listed below you will find some examples of the applications:

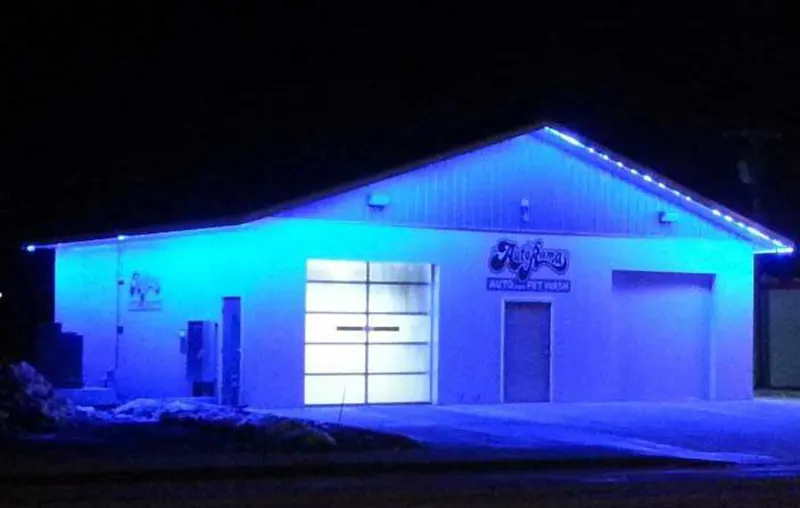

Flex LED ribbon used in commercial and architectural (25)

Commercial Lighting

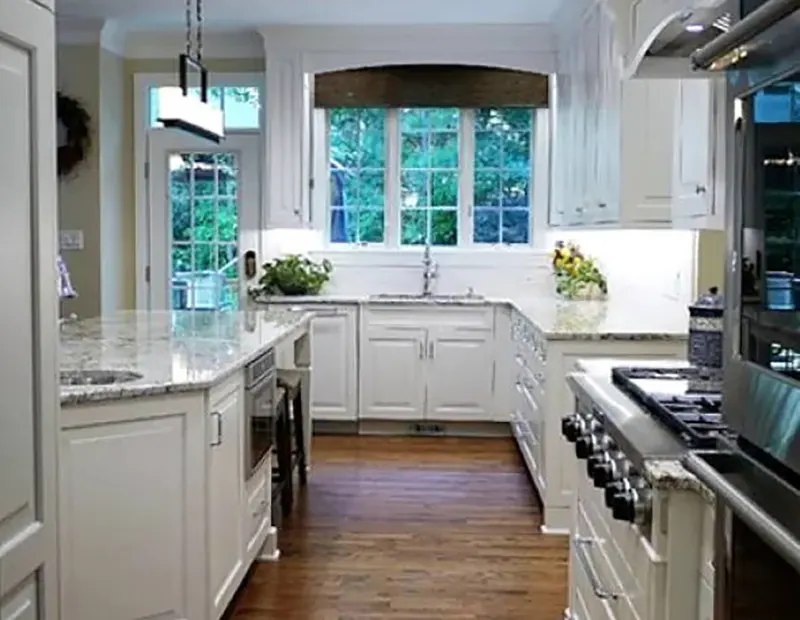

LED flexi strip used in Kitchen (25)

Kitchen Lighting

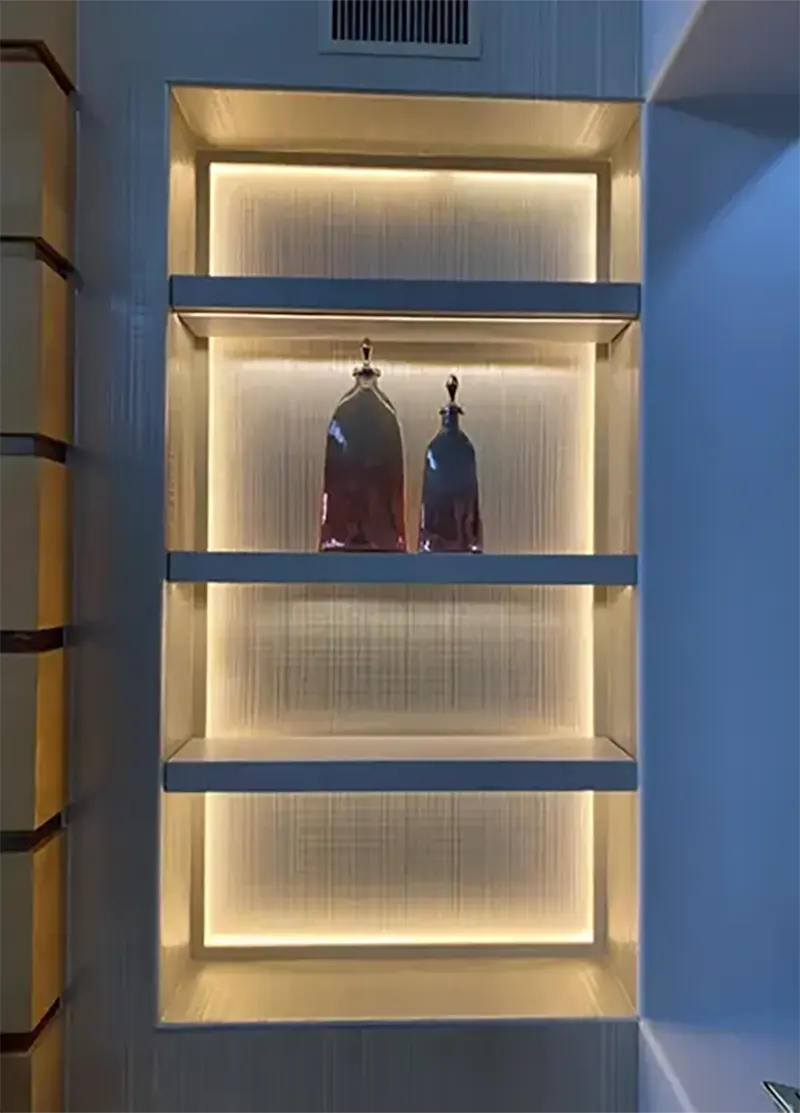

LED strip light used in living room (1)

Commercial Lighting

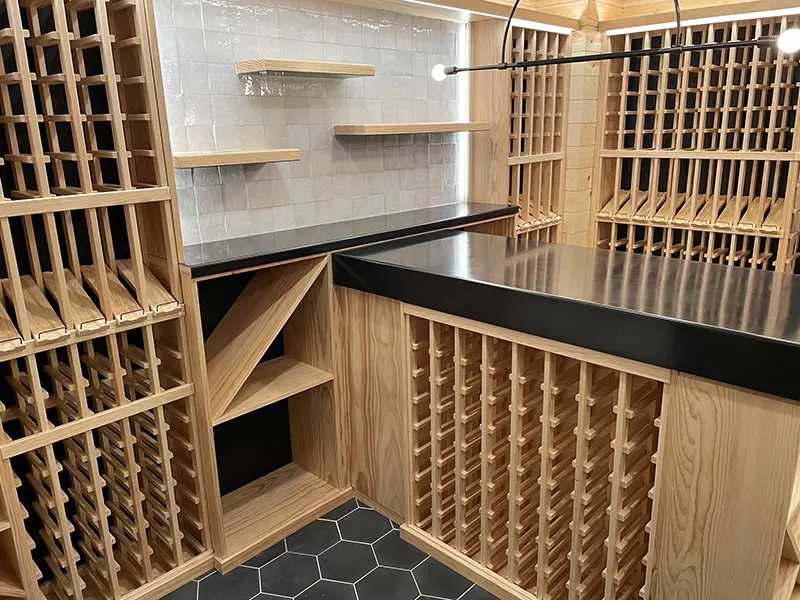

LED strip lights other applications (2)

Decoration Lighting

FAQ of Unitop Side Emitting LED Strip with SMD3014 60LEDs/M:

What is the difference between normal flexible LED strip and Side Emitting LED strip?

The light of normal LED flexible strip is vertical to the surface of PCB while the light of side-emitting LED strip is horizental to the surface of PCB.

How wide is this side emitting LED strip?

The width of this side view LED flexible strip is 8mm.

What is the power consumption?

The running power consumption is 4.8W per meter.

Specification:

Side Emitting LED Strip with SMD3014 60LEDs/M

IES/LDT Files:

2700K

Spectrum Test Reports:

2700K
