Although the list above we have shown some existing dimensions Top Bend LED Neon Flex, you still can bring up your specific requirements regarding the dimension requirements. Our standard length of LED Neon Flex is 5M/Reel. As different projects require unique dimensions and lengths. Just tell us directly!
What is Top Bend LED Neon Flex Lighting?

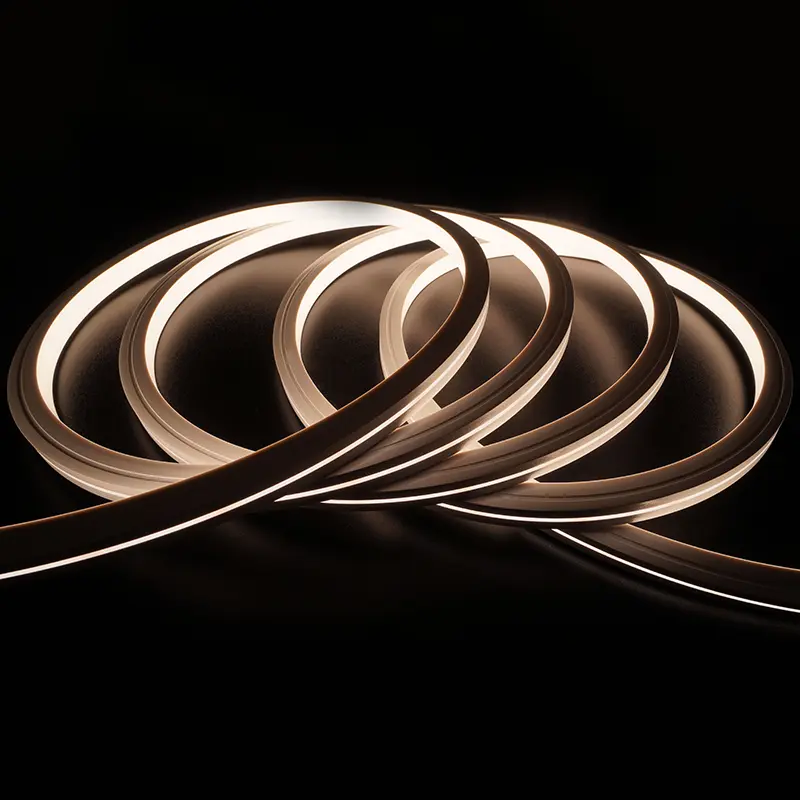

Top Bend LED Neon Flex is a type of LED neon flex that you can bend vertically toward the lighting direction. We also call it Top View LED Neon Flex or Vertical Bending LED Neon Flex.
LED Neon Flex is also called LED Neon Light, LED Neon Strip, or LED Flex Neon, LED Neon Flex Strip Lighting.
LED Neon Flex is a type of dot-free flex linear light. In contrast to mass-produced rope lighting and low-cost knockoffs, LED Neon Flex is made to last a long lifetime. We spent years shaping the production process to develop a solution that houses the most recent advances in light engine technology in an impact and weather-resistant housing. With our product line’s extensive range of characteristics, lighting designers and specifiers may choose the ideal LED Neon Flex for the task. We are sure that we have everything you require for LED Neon Flex.
Various Size & Colors
Our Top bend LED neon flex is available in sizes 1005, 1208, 1313, 1616, etc. White color with a full range of CCT options as 2100K, 2700K, 3000K, 3500K, 4000K, 5000K, tunable white, RGB, RGBW. You can get almost all sizes & colors you want.
1-bin LEDs, 7 LEDs/group
LEDs with big chips of high efficiency and stable quality. All LEDs used are from 1-bin to keep the consistency of colors. 7 LEDs/group, constant current IC unique circuit design to improve the light efficiency. You can trust the brightness.
3OZ FPCB, Quality Silicone
3Oz FPCB reduces voltage drop, max 10m single run. Anti-break design improves reliability. High-quality gas silica gel, which is yellow resistance, UV resistance, salt and alkali resistance, high-temperature resistance, and flame retardant.
Various Installation Method
You never have to worry about the installation anymore. You can choose installation with aluminum profiles, mounting clips, or bendable profiles with all accessories. This LED neon flex comes with end caps with cable outlets from the top, bottom, or side.
Wholesale Top Bend LED Flex Neon Light By Series
Want to learn more about any of our Top Bend LED Neon Flex? Click on Model No. on the sheet below. We are among China’s top manufacturers, suppliers, and factories of LED Neon Flex. We provide the following full range of Top Bend LED Neon Flex:
|Model No.||Dimension||Standard Length||Color||CRI||Angle||Voltage||Wattage||Lumen||IP Options||Spec. & Reports|
|UTNF-TB1005||10.6×4.5mm||5M/30M||2700K, 3000K, 4000K, 5000K||≥90Ra||110°||DC24V||8W/M||78lm/W 626lm/M||IP67||Download|
|UTNF-TB1208||12x8mm||5M/30M||2100K, 2700K, 3000K, 3500K, 4000K, 5000K||≥90Ra||110°||DC24V||10W/M||58lm/W 580lm/M||IP67||Download|
|UTNF-TB1313||13x13mm||5M/30M||2100K, 2700K, 3000K, 3500K, 4000K, 5000K, 2700K+5000K, RGB, RGBW||≥90Ra||110°||DC24V||12W/M||57lm/W 678lm/M||IP67||Download|
|UTNF-TB1313B||13x13mm||5M/30M||2100K, 2700K, 3000K, 3500K, 4000K, 5000K, 2700K+5000K, RGB, RGBW||≥90Ra||160°||DC24V||12W/M||81lm/W 977lm/M||IP67||Download|
|UTNF-TB1616||16x16mm||5M/30M||2100K, 2700K, 3000K, 3500K, 4000K, 5000K, 2700K+5000K, RGB, RGBW||≥90Ra||110°||DC24V||12W/M||49lm/W 588lm/M||IP67||Download|
|UTNF-TB1616B||16x16mm||5M/30M||2100K, 2700K, 3000K, 3500K, 4000K, 5000K, 2700K+5000K, RGB, RGBW||≥90Ra||110°||DC24V||12W/M||45lm/W 535lm/M||IP68||Download|
Important! Model No. Definition:
Take Model No. UTNF-TB1208 as an example:
“UT” stands for “Unitop”.
“NF” stands for “LED Neon Flex”.
“TB” stands for “Top Bend”.
“1208” stands for “Dimension of the Neon Flex is 12x8mm.”
Below is a display of our entire selection of Top bend LED Neon Flex. Simply click on any of them to see more information!
Suppose you see that our Top Bend LED Neon Flex has passed a number of tests below to guarantee better performance, dependability, and a long lifespan, without which we would never be able to put any items into mass production. You will be glad to buy from us.
Needle Flame Test
Test flame duration is 30S±1S, flame is applied to a vertical or horizontal edge.
Constant Temperature and Humidity Test
Light on and under 60±5℃ and RH90% humidity for 168h(7 days).
IP67, and IP68 tests compliance with IEC60529:2013.
Salt Spray Test
Sodium chloride: 50g/L±5g/L, pH: 6.5 to 7.2 for 48h.
Low-Temperature Storage Test
168 hours in a sealed environment at -45°C.
Thermal Shock Test
100 rounds cycle test at -40°C for 30 minutes and +60°C for 30 minutes.
Fix on the test machine and light it on, test 1000rpm, speed 60rpm/min.
UV Weather Resistance Test
0.89w/(m²·nm@340nm, 8h UV at 60(±3)℃, 4h Condensation at 50(±3)℃ for 72h.
Have Particular Requirements?
The product range mentioned above doesn’t have what you’re looking for? Be at ease. We would accept any OEM & ODM. Sending us your particular requests would be greatly appreciated. We’ll check and get back to you right away.
The following are only a few of the numerous applications of Top Bend LED Neon Flex. You will then have further opinions about using our LED Neon Flex in other applications.
Articles that Will Help You Choose Silicone LED Neon Flex
Are you having trouble deciding which LED Neon Flex Lighting to buy? Or do you need additional information about technical specifics, product knowledge, reviews, comparisons, or something else? Just have a look at the articles below.
Frequently Asked Questions
Are you curious about the typical questions people always ask? Alternatively, are you looking for answers to your questions? I urge you to pay attention to this section.
What are the features of LED Neon Flex lights?
1. DC24V Low Voltage:
Low power consumption of only 8W-12W, super energy saving.
You can bend LED Neon Flex Light a minimum 5cm diameter.
3. IP67 or IP68:
With the silicone extrusion process, it is IP67 or IP68.
4. Long lifetime: Compared with traditional glass neon light, LED neon flex adopts LEDs with a lifetime of 50000~80000hrs.
Will Top Bend LED Neon Flex get hot after a long run?
Top Bend LED Neon Flex is safe to use in places with many direct touches because it doesn’t emit heat. It is safe to use in practically any application.
How much power does Top Bend LED Neon Flex use?
Unitop Top Bend LED Neon Flex is quite energy-saving. It only consumes 8W-12W/M. With this advantage, it consumes much less electricity than traditional standard glass neon.
Is LED Neon Flex Easy To Install?
Although we suggest the installation is done by qualified electricians and experts in this field. The Installation of LED Neon Flex is quite simple and easy to DIY.
Can I dim your Top Bend LED Neon Flex? Which dimming device can I use?
It is possible to dim (0–100%) the single-color LED Neon Flex using a PWM controller. We provide three dimming options for our products: 0-10V, DMX512, and the Dali system.
Can I use a controller with Top Bend LED Neon Flex?
Although our single-color products are dimmable, you can not use a controller for single-color products. However, you can use a controller on our tunable white, RGB, or RGBW products to adjust the colors, speed, flash, etc.
Which colors/CCT do you have for your Top Bend LED Neon Flex?
Unitop Top Bend LED Neon Flex comes with below colors:
2100K, 2700K, 3000K, 3500K, 4000K, 5000K, 2700K+5000K, RGB, RGBW.
How flexible is Unitop Top Bend LED Neon Flex?
The minimum bending radius of our Top Bend LED Neon Flex usually is 30mm or 60mm, depending on different items.
Can Top Bend LED Neon Flex be used outdoors?
Definitely, our LED Neon Flex is IP67. We also have IP68 for choice. So please rest assured to use them outdoors.
What is the lifetime of your LED Neon Flex?
A neon glass tube has a 10,000-hour life expectancy on average. On the other side, LED neon flex lights provide illumination for up to 50,000 hours or more.
Can LED Neon Flex be cut?
To maximize creativity and personalization, LED Neon Flex can be cut at any cutting point(clearly printed already on the neon flex) and used individually.
How to connect LED Neon Flex Lights to power supply?
There are two ways to connect LED Neon Flex Lights to Power Supply:
- Single-end wiring.
- Double-end wiring.
Single-end wiring example as below:
Double-end wiring example as below:
For more details, please kindly refer to each product’s page.
How to install Top Bend LED Neon Flex?
There are different installation methods for our Top Bend LED Neon Flex, including a. Aluminum profile installation. b. Bendable profile installation. and c. Installation by mounting clips. You can choose whatever you want according to your using condition.
Get Free Quote Within 24 Hrs
Hopefully, you now comprehensively understand our Top Bend LED Neon Flex. Want to try collaborating with us? Simply complete the form below and press the RED button. Within 24 hours, we’ll provide you with a free quotation.
