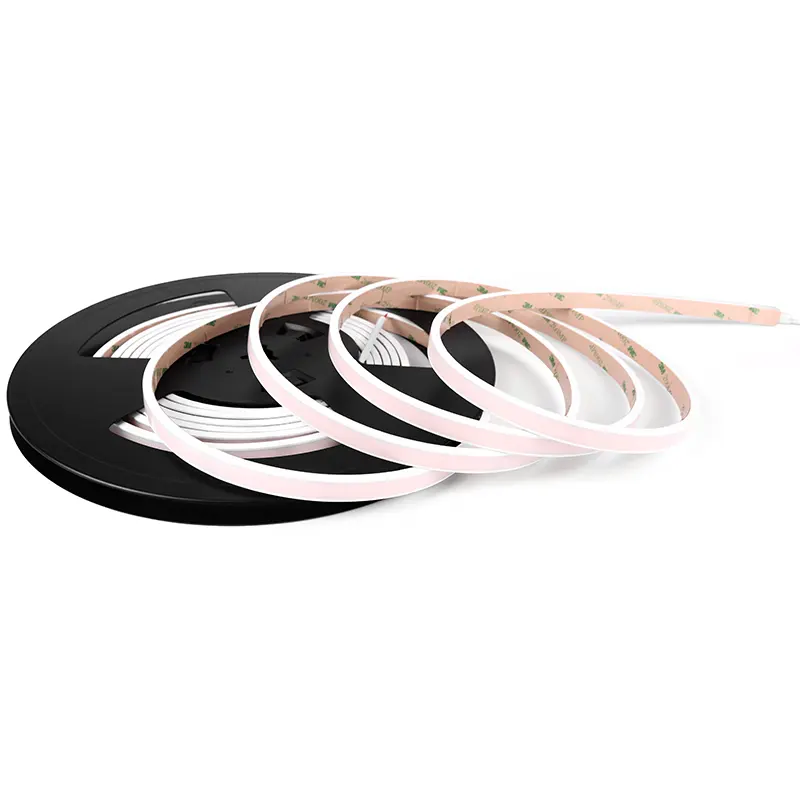

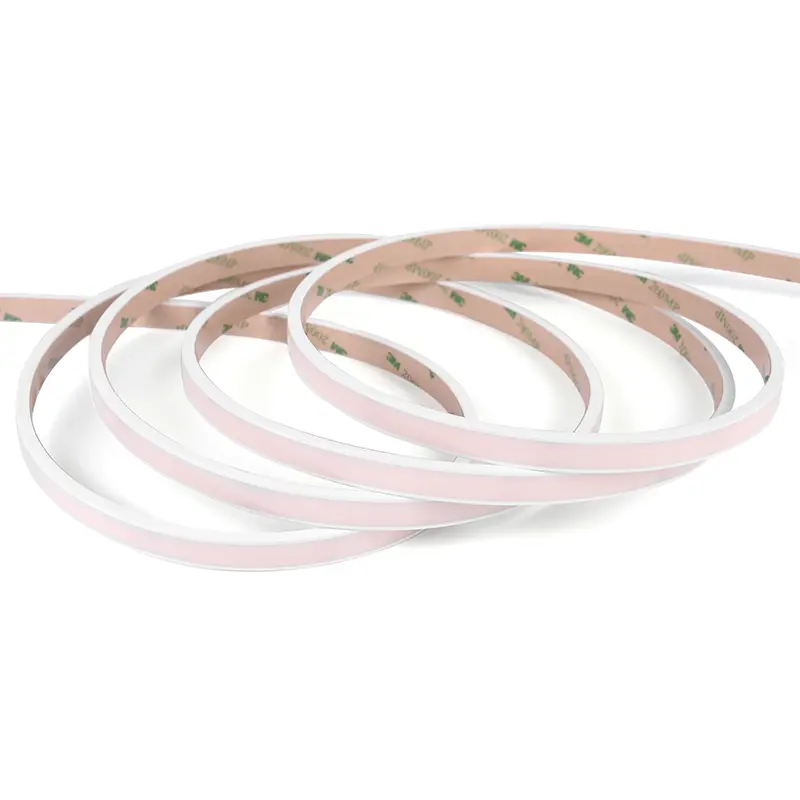

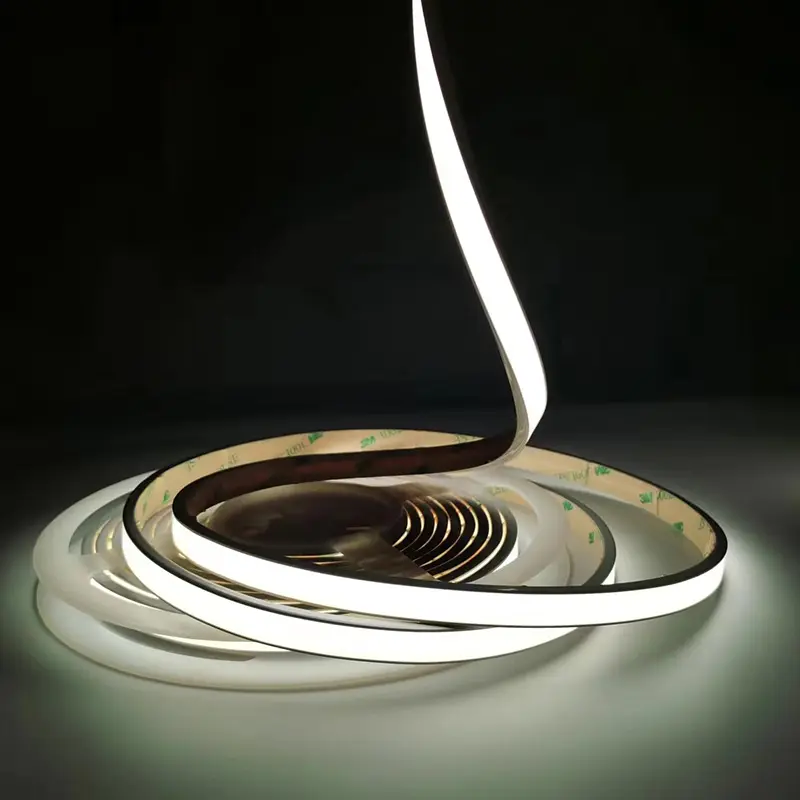

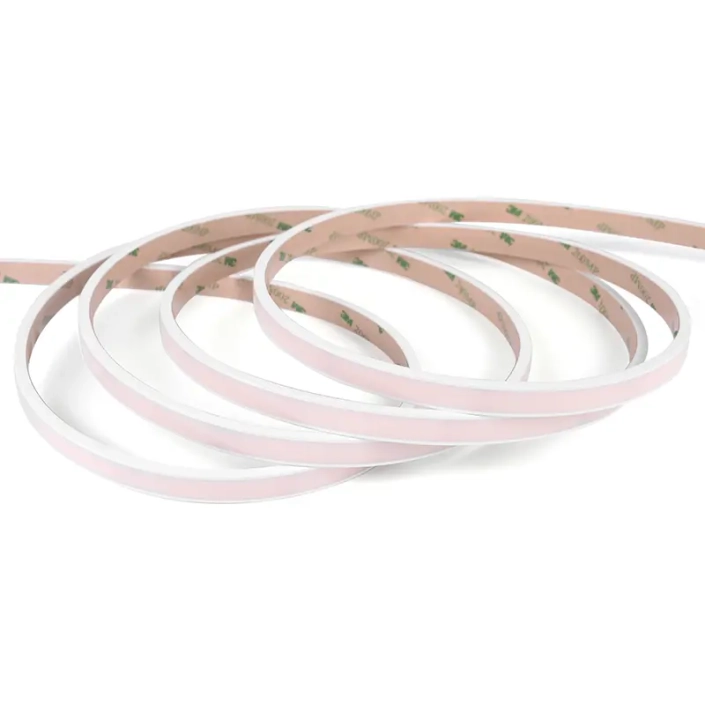

Top Bend LED Neon Flex Lighting 1005 IP67 24VDC 8W/M

This Mini Top Bend LED Neon Flex Rope Light is super thin at 5mm. It has different CCT options, including 2700K, 3000K, 4000K, and 5000K. With excellent vertical bending flexibility, it is super bright and easy installation. Moreover, it is IP67 suitable for both indoor & outdoor decorative lighting and outdoor building outline lighting, etc.

Model No.:UTNF-TB1005

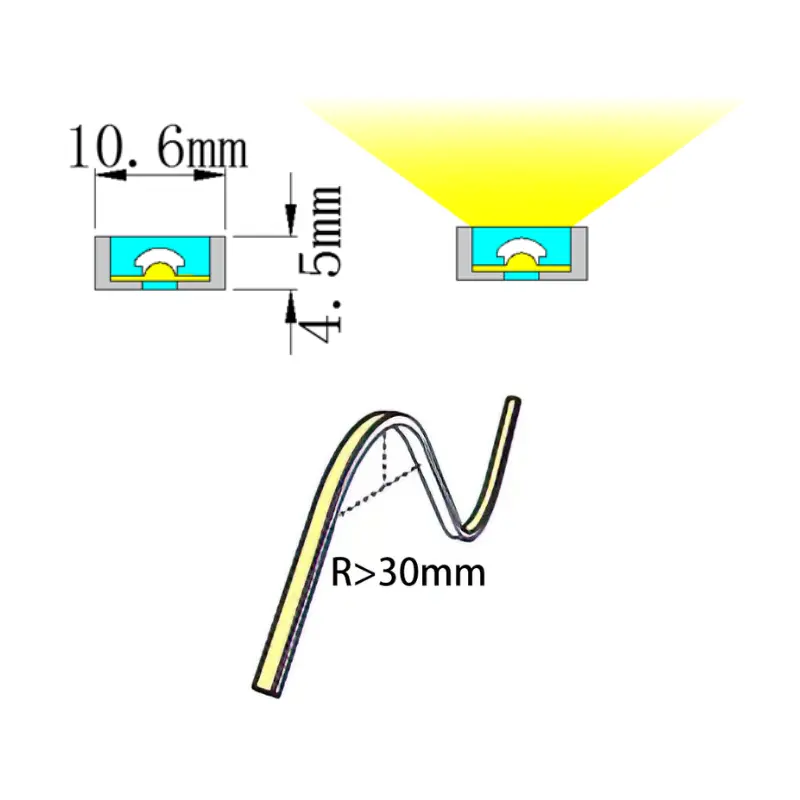

Dimension:10mm(W)x5mm(H)
Voltage:DC24V
Wattage:8W/M
CCT:2700K, 3000K, 4000K, 5000K
CRI:≥90Ra
Angle:110°
IP Rate:IP67
TB1005 Top Bend LED Flex Neon

Unitop Top Bend LED Neon Flex Lighting 1005 has so many unique features, including but not limited to below:

Super Thin:

This fantastic LED Neon Flex is only 5mm in height. It is suitable to use in very narrow areas. So you will never have to worry that it is not easy to use in particular conditions requiring such thin neon flex.

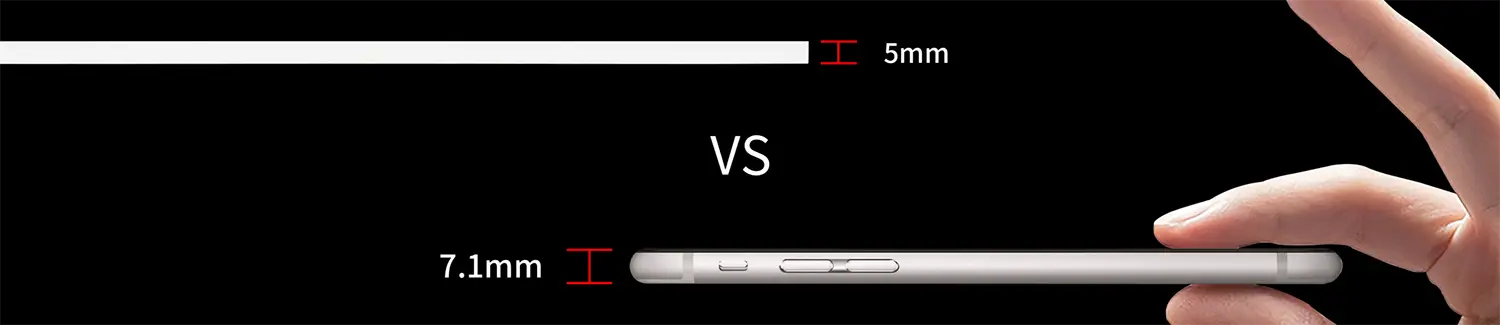

Super thin

High CRI More Than 90Ra:

The CRI of the LEDs we are using is all more than 90Ra. Thus we also call our LED Neon Flex: High CRI LED Neon Flex. Generally speaking, CRI(color rendering index) values of 90 and above are considered excellent; however, values below 80 are generally considered not good.

CRI comparison

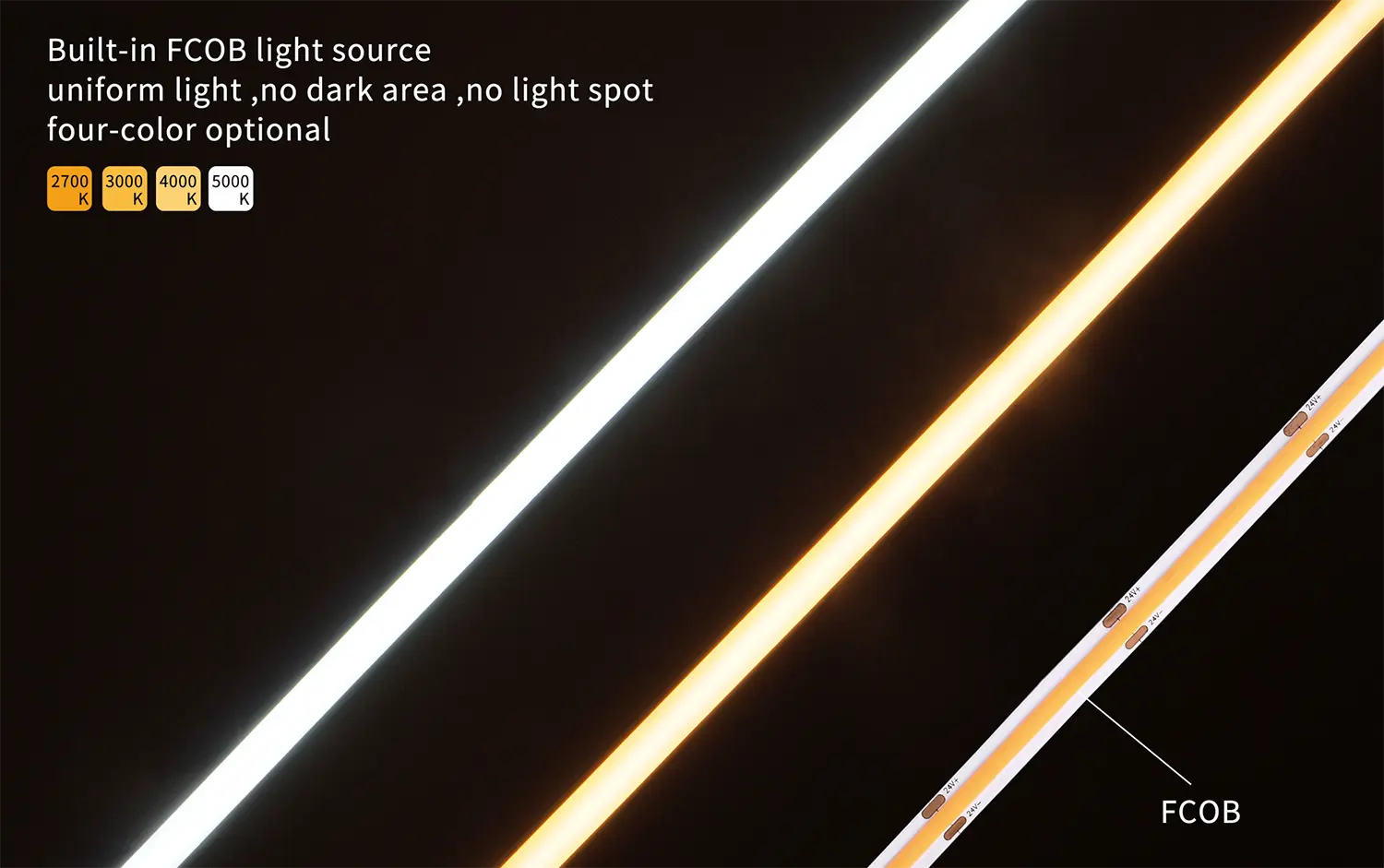

Using COB LEDs as Light Source:

This LED flex neon uses COB LEDs as the light source. There are so many advantages of COB LEDs, including more efficiency, less heat, uniform brightness, no lighting spot, no dark area, etc.

COB LED light source

High-Quality Silicone:

Our LED Neon Flex uses high-quality gas silica gel, which is yellow resistance, UV resistance, salt and alkali resistance, high-temperature resistant, and flame retardant.

Silicone extrusion

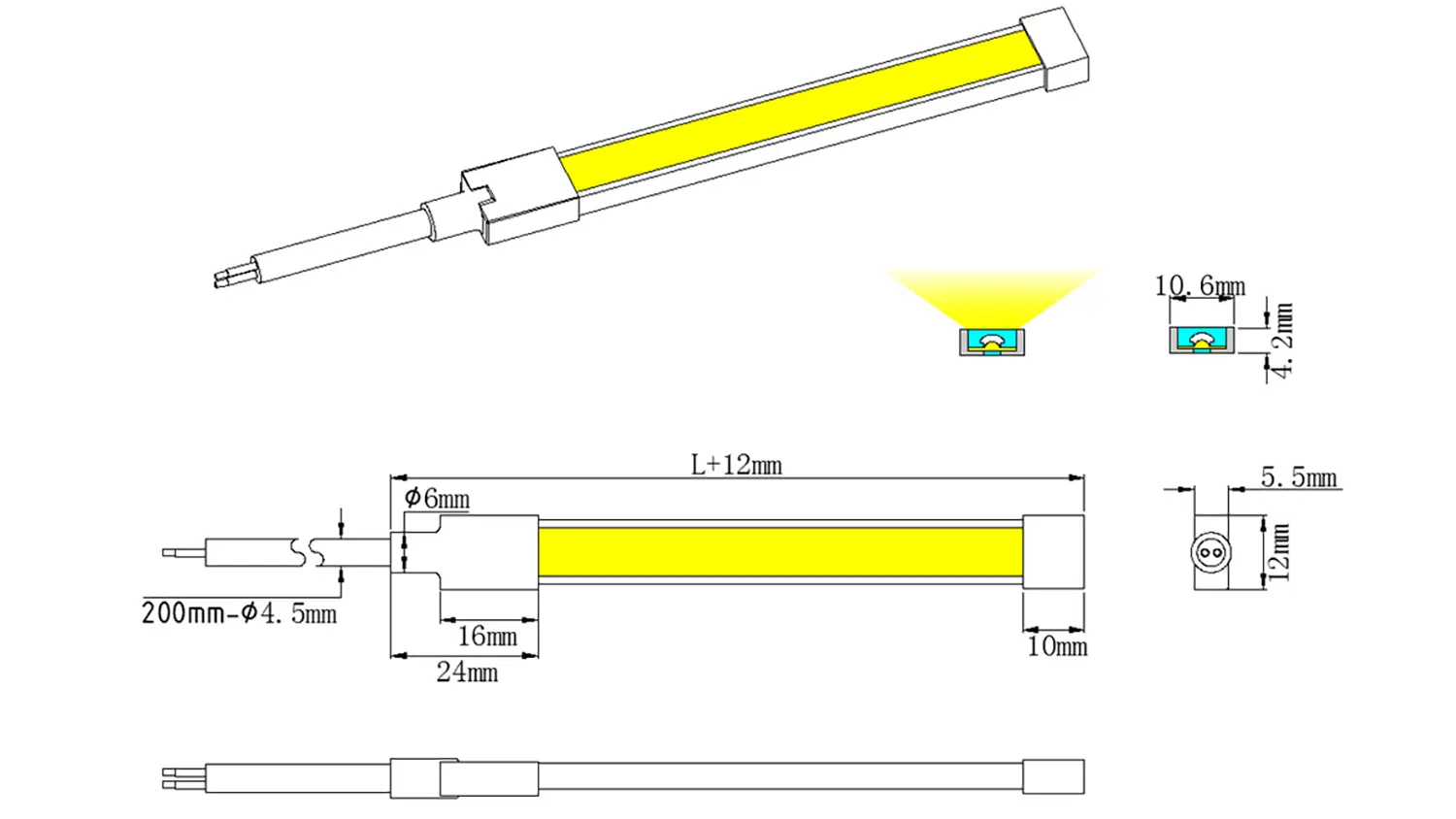

Dimension and Length:

Note: The length of “L” is the length of the Neon Flex, which is the integer multiple of the minimum cutting length.

Top bend LED neon flex 1005 Dimension and Length

Electrical and Lumen Data:

Unitop Model No.ColorCCTCRIView AngleLumen
LM/M
Efficacy LM/WWorking VoltagePowerMinimum Cutting LengthIP Rate
UTNF-TB1005WWWarm White2700K≥90Ra110°4745924VDC8W/M50mmIP67
UTNF-TB1005WWWarm White3000K≥90Ra110°4916124VDC8W/M50mmIP67
UTNF-TB1005NWNatural White4000K≥90Ra110°5406824VDC8W/M50mmIP67
UTNF-TB1005DWDaylight White5000K≥90Ra110°6267824VDC8W/M50mmIP67

Wiring Diagram:

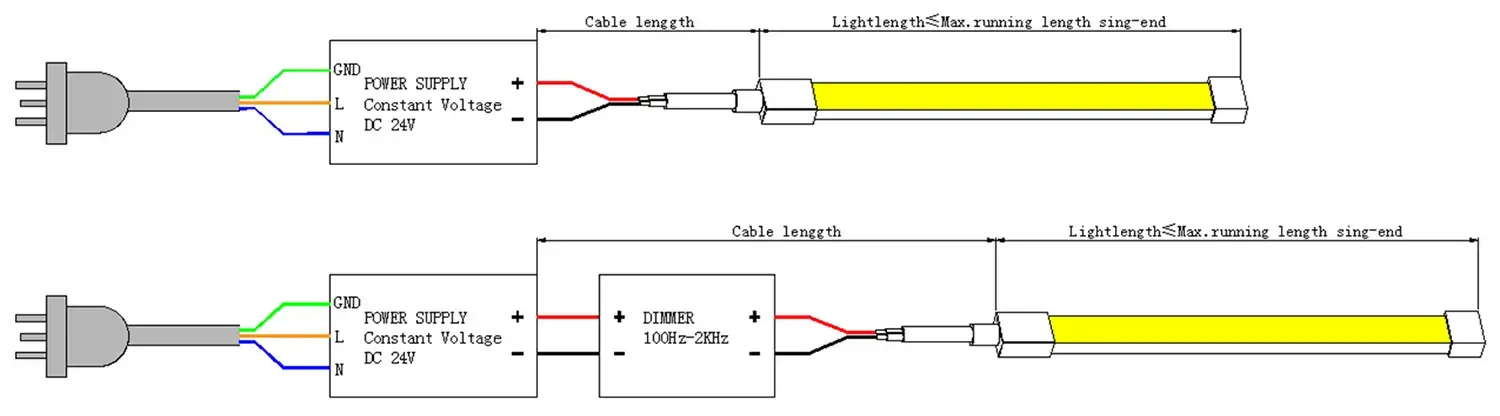

1. Single-end Wiring:

Please use a constant voltage power supply with corresponding output voltage, and the rated wattage of the power supply shall be 25% more than the actual power consumption of light to increase its life expectancy.
This wiring diagram uses the mains of AC220-240V with brown and blue wires as an example, and please connect with the corresponding live and neutral wires for other electricity mains.

Dimming frequency ranges from 100Hz to 2000Hz, and 500Hz is recommended.

Light Length:
The length of the longest single light in parallel connection or sum of LED Neon Flex in series connection.

Cable Length:
The length of an electrical cable between the power output end and light input end and the wires for serial interconnection are included.

How to minimize voltage drop?
1. Please ensure the cable length is not more than the table “Max. Cable Length” according to light length and its wire gauge.
2. Please ensure the light length is less than the cable “Max. Running Length Single-end Wiring”.

Top bend LED neon flex 1005 Single-end Wiring

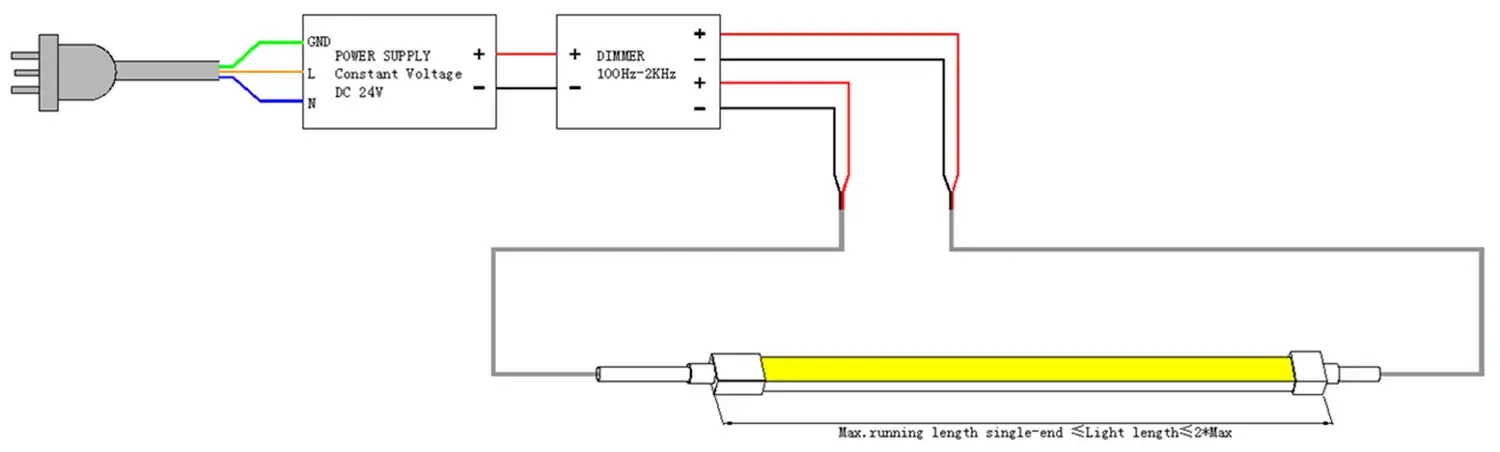

2. Double-end Wiring:

The below wiring diagram with double-end wiring to run length longer than the max running length for single-end wiring but less than twice the value.

Please ensure the polarity connection is correct on both ends, and a short circuit might occur if powering the light from both ends with reverse polarity. It is not recommended to connect both ends of the neon flex with two separate power supplies, which would lead to overloading and overheating problems if either power supply is failed.

Light Length:
The length of the longest single light in parallel connection or sum of neon flex in series connection.

Cable Length:
The length of an electrical cable between the power output end and light input end and the wires for serial interconnection are included.

How to Minimize Voltage Drop:
1. It is optimal to position the power supply in the middle of a single light or multiple lines in a daisy chain to keep the equivalent cable length on both ends for double-end wiring.
2. Please ensure the cable length is not more than the table “Max. Cable Length” according to half of the light length and its wire gauge.
3. Please ensure the light length is less than the table “Max. Running Length Double-end Wiring”.

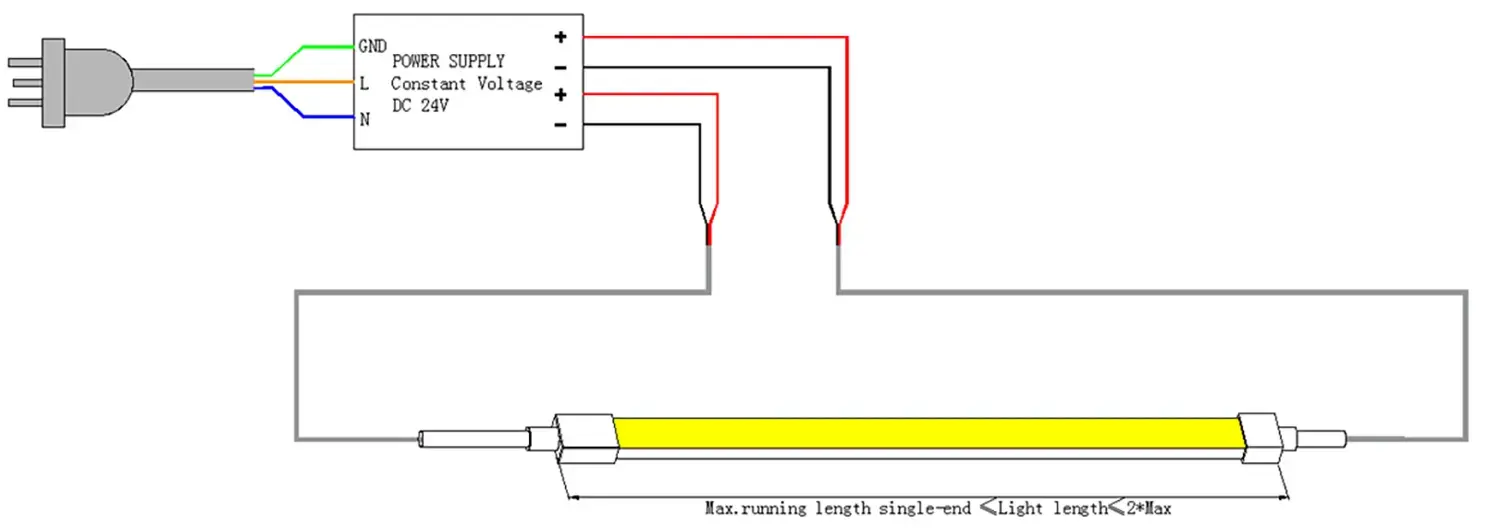

Top bend LED neon flex 1005 Double-end Wiring 1
Top bend LED neon flex 1005 Double-end Wiring 2

Note:

1. Please go to the Download Section for more details.

2. Suggested the installation of Top Bend LED Neon Flex to be made by the manufacturer, agent, or other qualified people.

3. Please study the above specification before installation.

4. The above data is based on our standard product. Please subject to your actual product data if there is a slight difference.

5. The above schematic diagrams are from our standard product. Please subject to your existing product if there is a slight difference.

6. The LED driver wattage must be at least 1.2 times the overall wattage of the LED Flex Neon used for the power supply.

7. Do not connect the strips directly to the AC for safety.

8. Any acidic or alkaline substance is forbidden.

9. No prior notice in case this product or specification is updated.

10. Unitop reserves the final right of explanation of the above specification.

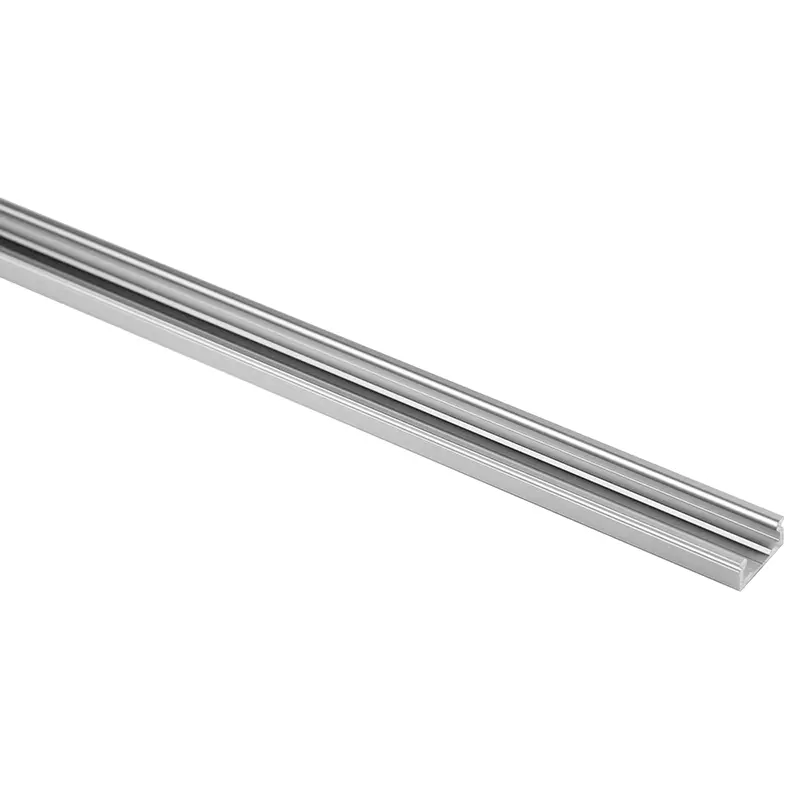

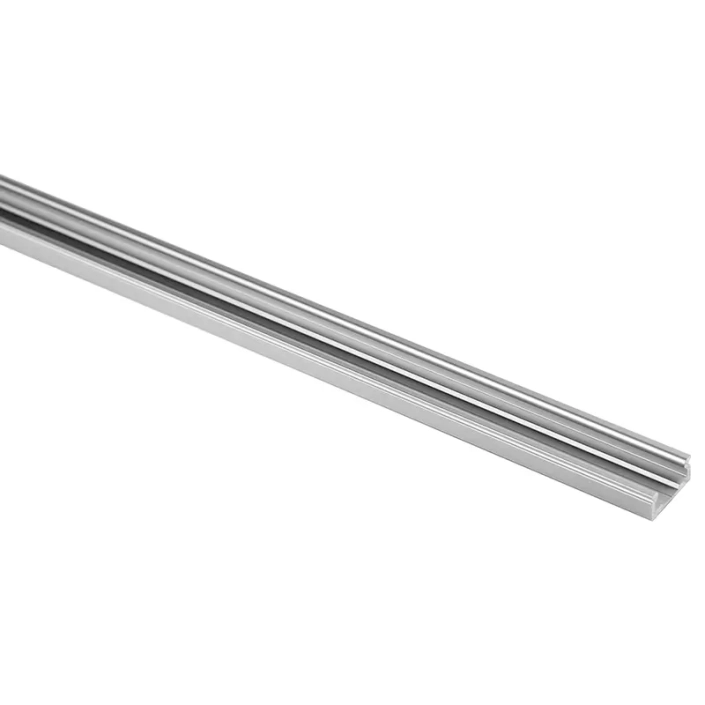

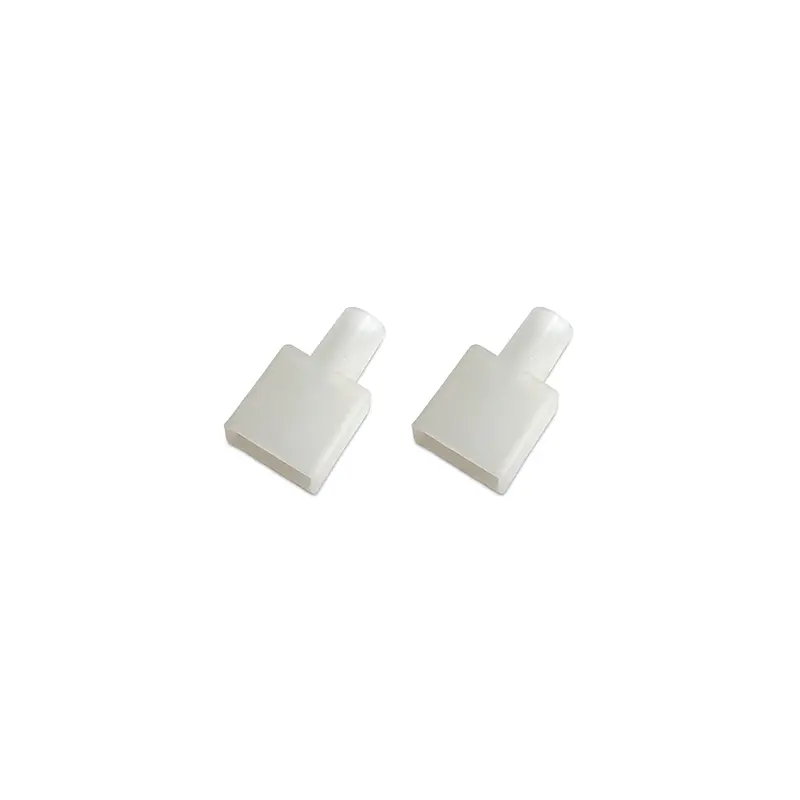

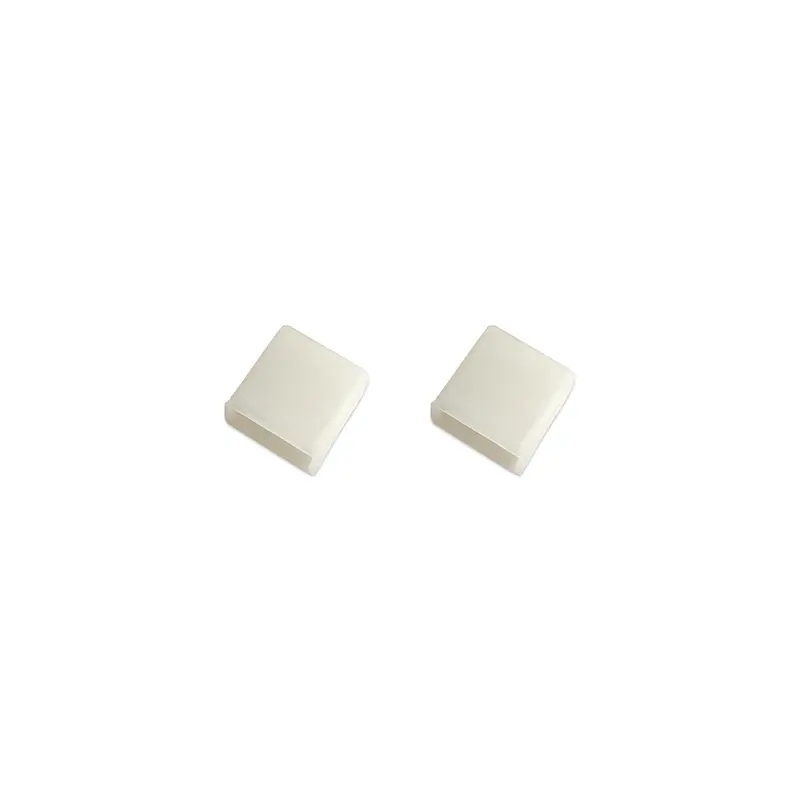

Please use the aluminum profile and end caps listed below with this Top Bend LED Neon Flex.

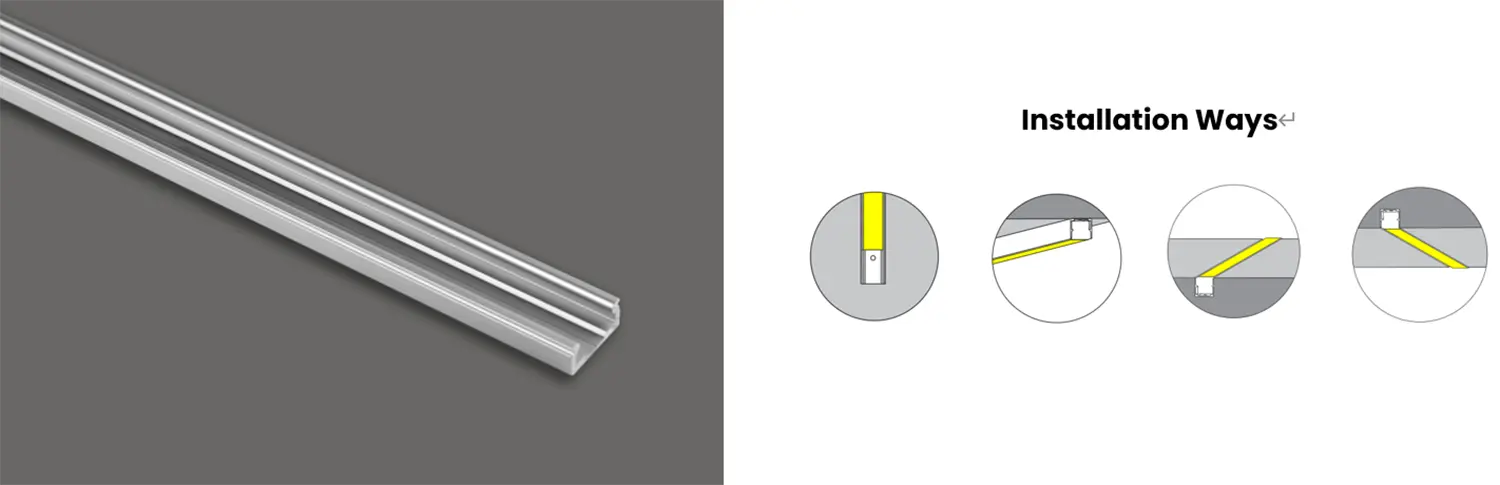

Aluminum Profile & Installation

If you want more details about the accessories, please refer to our Specification.

Please feel free to let us know if you need any unique accessories.

How do you cut and glue the Top Bend Mini LED Flex Neon Light?

1. Cut Silicone LED Neon Flex.

2. Pass the wire through the end cap.

3. Solder the wire.

4. Seal the head end cap.

5. Seal the tail end cap.

6. Curing time.

How do you install the aluminum profile?

How do you connect the aluminum profiles?

How do you install Top Bend Neon Flex LED strip lights?

How do you uninstall Top Bend LED Neon Flex?

It’s not recommended to uninstall and reinstall the LED Neon Flex repeatedly.

Specification:

Top Bend LED Neon Flex 1005 IP67 24VDC 8W/M

IES Files:

2500K/2700K/3500K/5000K

Spectrum Test Reports:

2500K/2700K/3500K/5000K
