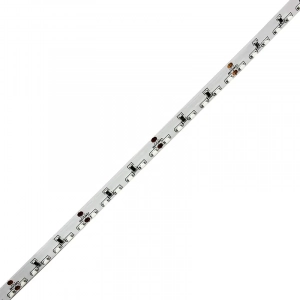

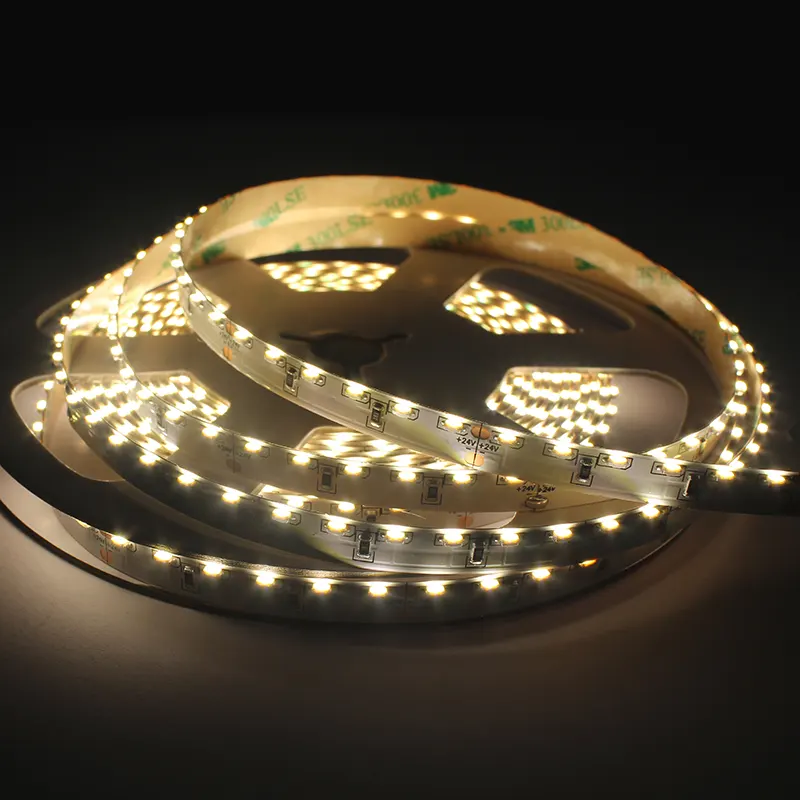

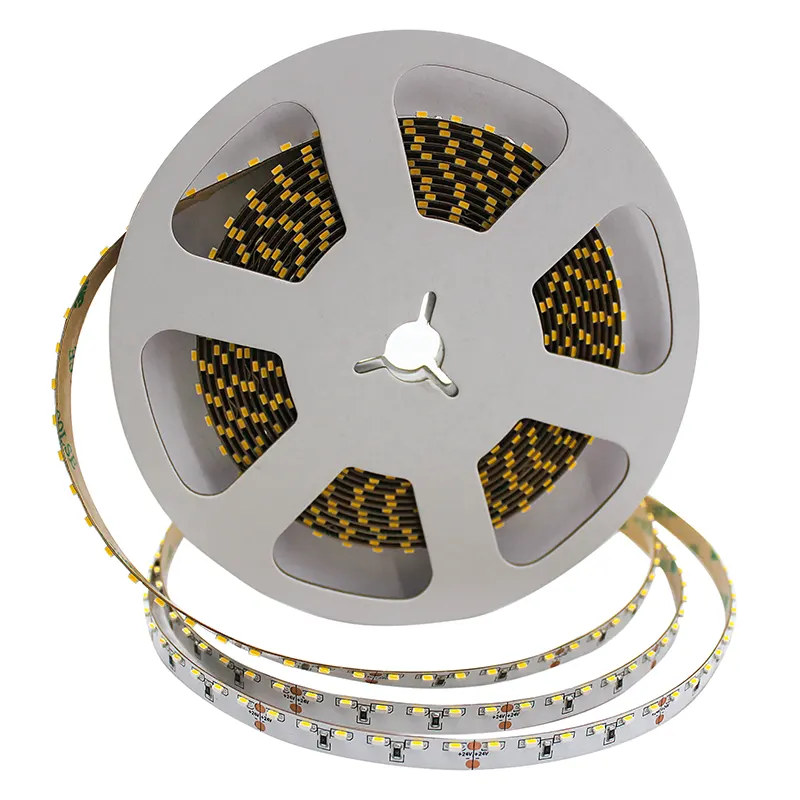

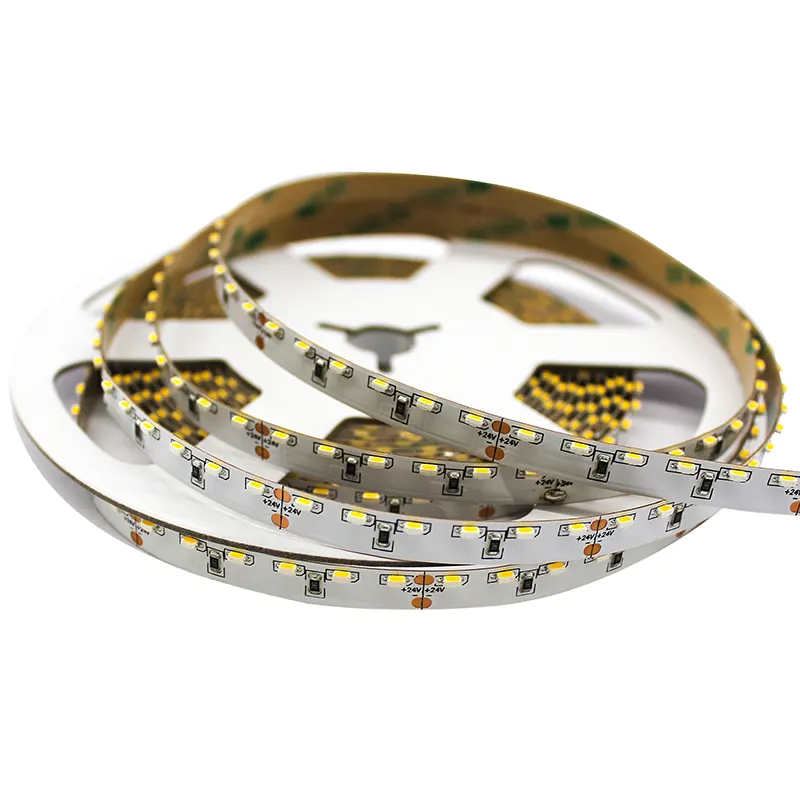

24V Side Emitting LED Strip Light with SMD3014 120LEDs/M

This 24V Side Emitting LED Strip Light is perfect for indoor use, with a luminous efficacy of 85lm/W. It has a wide viewing angle of 120° in the horizontal direction, making it ideal for illuminating staircases, walkways, and curved walls. With a lifespan of more than 50,000 hours and no mercury or lead content, this strip light is environmentally friendly and very energy efficient.

Model No.	UTFS-SE4120-2408
LED Qty:	120pcs/m
Voltage:	DC24V
Wattage:	9.6W/M
CCT:	2700K/3000K/4000K/6000K
CRI:	>80Ra

Description Specification Application FAQ Downloads

24V Side Emitting LED Strip Light with SMD3014 120LEDs/M from Unitop

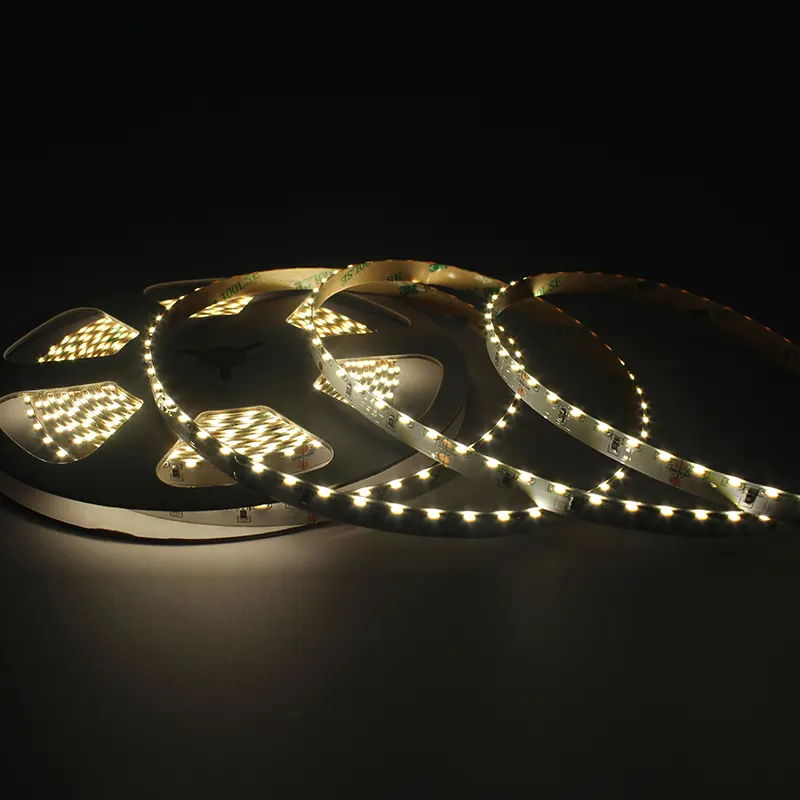

The SMD3014 side view LEDs are eye-catching, offering a clean & crisp light output.

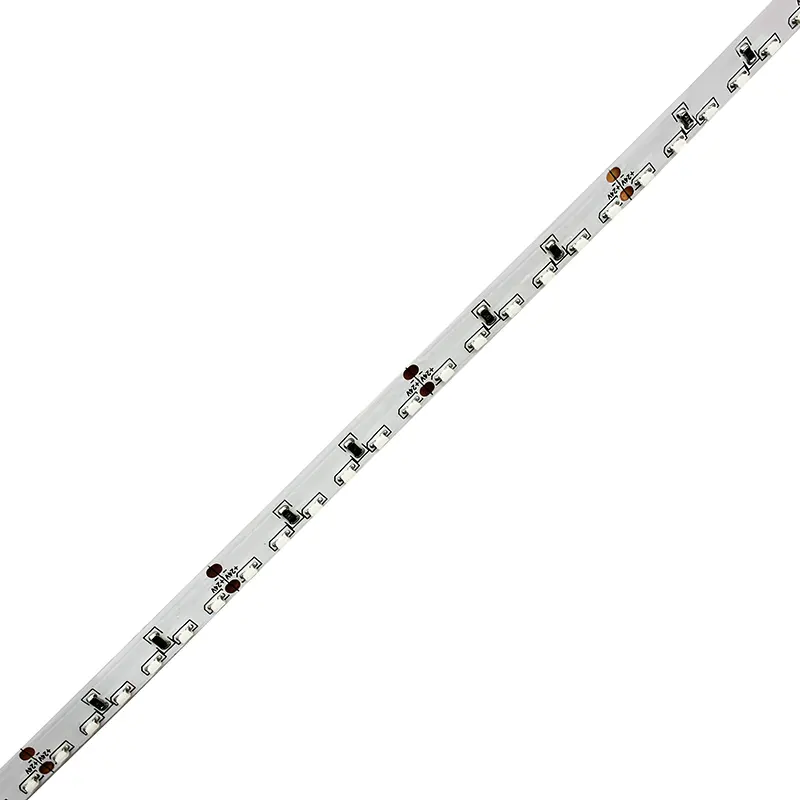

With an 8mm width, this LED side emitting LED strip is the perfect solution to illuminate applications for your home.

The flexible design allows for this product to be twisted into any shape you want.

Extremely energy efficient, it does not consume much power and is low in cost.

Unitop 24V Side Emitting LED Strip Light has below CCT options:

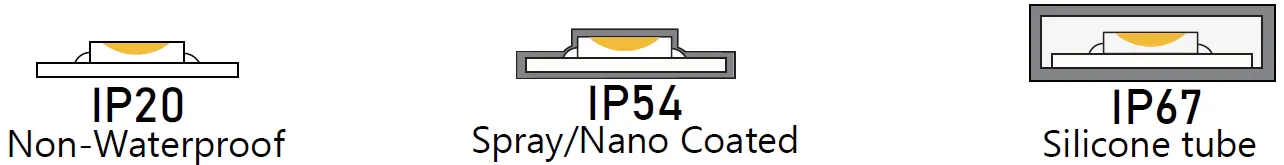

Our Side Emitting LED Ribbon Strip comes with below IP rating options:

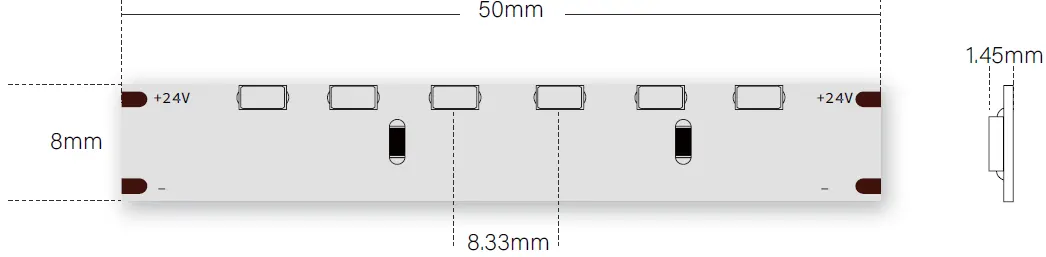

The cutting size of Unitop Side Emitting LED Lighting Strip:

cutting size 24V Side Emitting LED Strip Light

This Unitop Side Emitting LED Strip Light is with below lumen:

CCT (°K)
2700K
3000K
4000K
6000K

Efficacy
81.19lm/W
81.19lm/W
90.44lm/W
90.44lm/W

Lumen/M
805.9lm/m
805.9lm/m
895.4lm/m
895.4lm/m

How to install our Side View LED Tape? You can find the wire diagram as below:

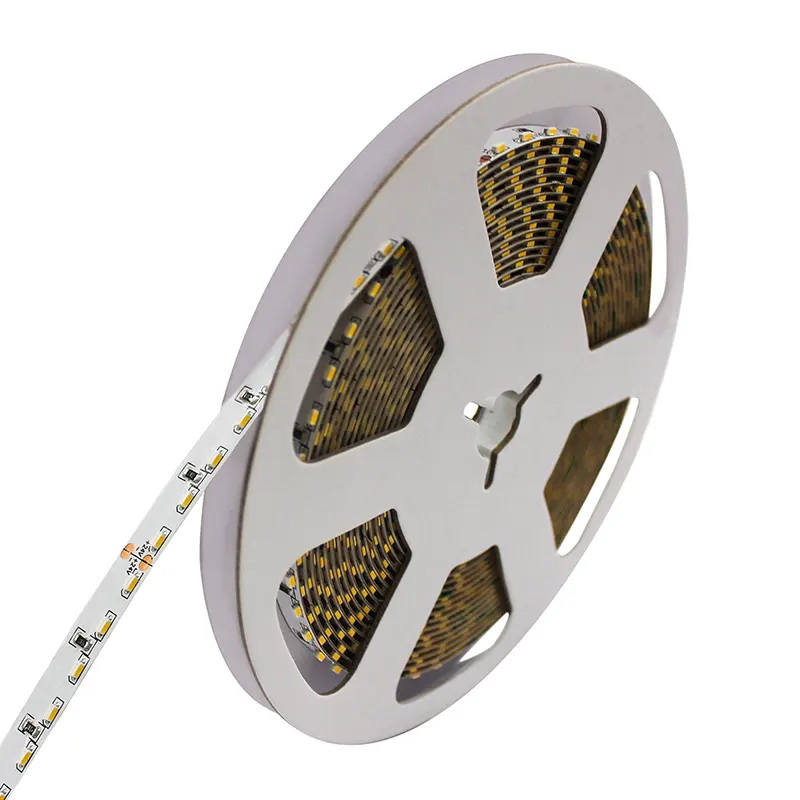

Want to know the packing information? See below:

Below two cautions need your highest attention:

Please also pay attention to below issues while installing our 24V Side Emitting LED Strip Light:

Side emitting LED flexible strip with wire lead is an easy to install product, but it is also the most susceptible to being damaged by over-bending.

The installation surface must be a flat and dry surface.

The installation surface cannot have a slope greater than 1/8 inch per foot or have a slope in either direction of more than 1/4 inch per foot.

The installation surface cannot have any protrusions that may damage the product.

24V Side Emitting LED Strip Light with SMD3014 120LEDs/M has a variety of applications.

The side emitting LED flexible strip is primarily used in the decoration of event, exhibition, showroom. But also can be applied in the decoration of exterior of commercial building with lighting effect.

The side emitting flex LED strip is used in lighting applications such as under cabinet lighting, cove lighting, and cove lighting.

The side view LED lighting strip is used in architectural and interior design applications such as in structural and decorative elements, accent lighting, and stage and theater lighting.

Listed below you will find some examples of the applications:

Commercial Lighting

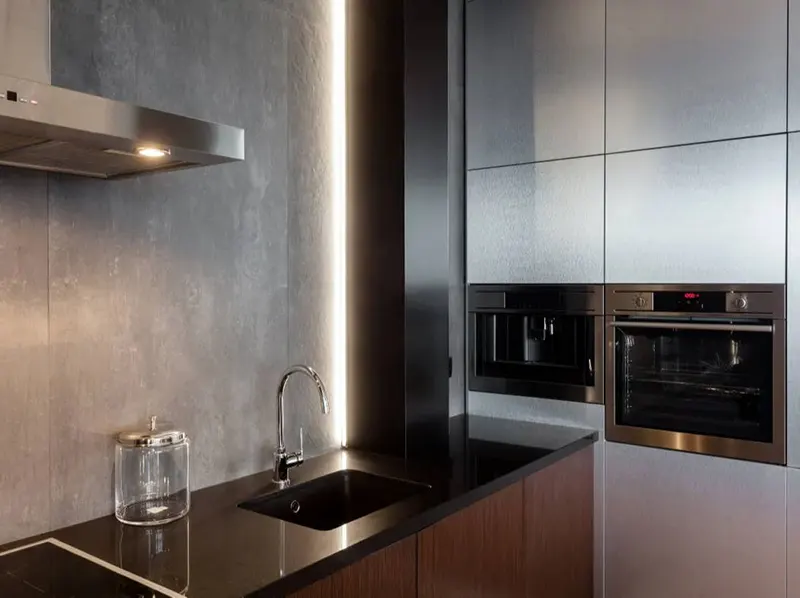

Kitchen Lighting

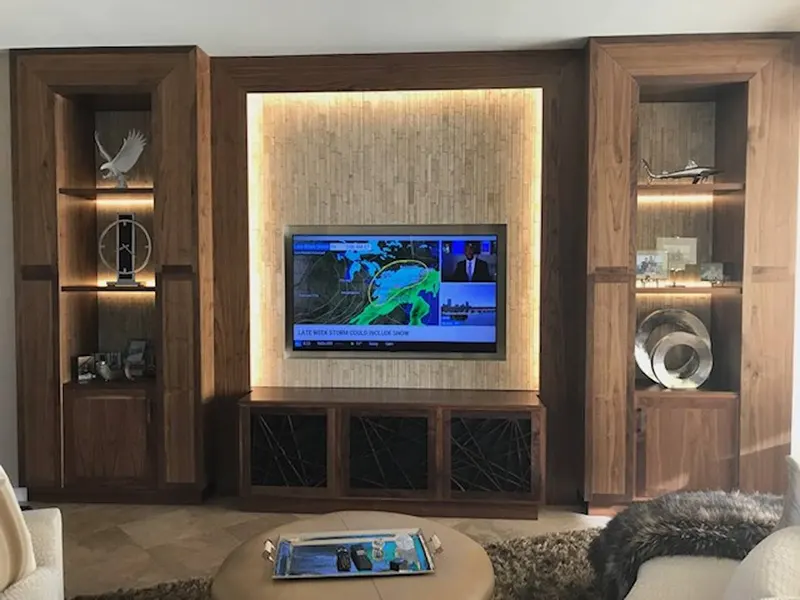

Livingroom Lighting

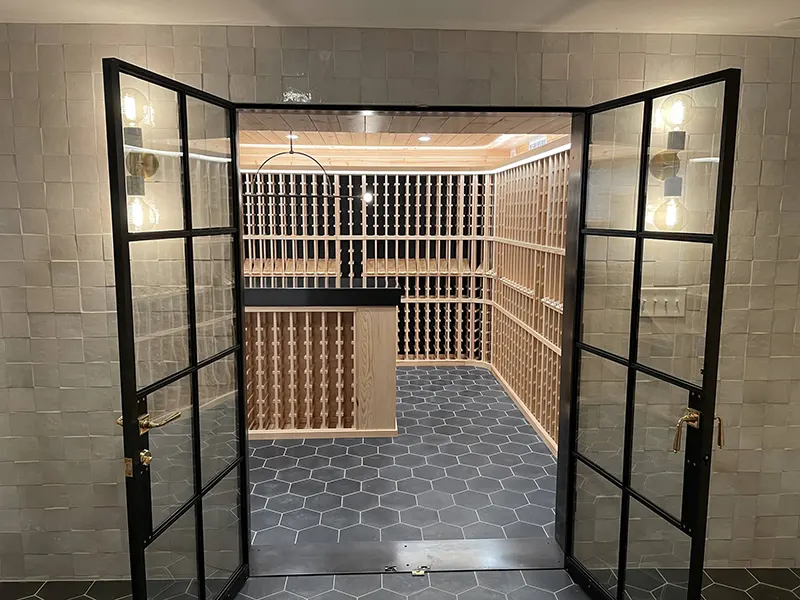

Other Lighting

FAQ of Unitop 24V Side Emitting LED Strip Light with SMD3014 120LEDs/M:

Are these side emitting LED strips waterproof?

No, our standard products are not waterproof. If you need water proof, you can contact us directly.

What is the best way to fasten side emitting flexible LED strip lights?

For best results, We have used 3M double sided adhesive tapes on the back of strips to keep the lights firmly in place.

What is the warranty?

We offer 3 year warranty for all of our LED strip lights.

24V Side Emitting LED Strip Light with SMD3014 120LEDs/M

24V Side Emitting LED Strip Light with SMD3014 120LEDs/M from Unitop

Unitop 24V Side Emitting LED Strip Light has below CCT options:

Our Side Emitting LED Ribbon Strip comes with below IP rating options:

The cutting size of Unitop Side Emitting LED Lighting Strip:

This Unitop Side Emitting LED Strip Light is with below lumen:

How to install our Side View LED Tape? You can find the wire diagram as below:

Want to know the packing information? See below:

Below two cautions need your highest attention:

Please also pay attention to below issues while installing our 24V Side Emitting LED Strip Light:

24V Side Emitting LED Strip Light with SMD3014 120LEDs/M has a variety of applications.

Listed below you will find some examples of the applications:

FAQ of Unitop 24V Side Emitting LED Strip Light with SMD3014 120LEDs/M:

Are these side emitting LED strips waterproof?

What is the best way to fasten side emitting flexible LED strip lights?

What is the warranty?

Specification:

IES/LDT Files:

Spectrum Test Reports:
