LED Flexible Lighting Strip

Unitop LED flexible lighting strip is a skinny and flexible led light designed to be curved around corners and fit into tight spaces. They are perfect for use in signs, under cabinets, or any creative lighting project. White color high CRI LED flexible strip lights are available in a wide variety of CCTs.

Model No.UTFS-TS1240-2410
LED Qty:240pcs/m
Voltage:DC24V
Wattage:15W/M
CCT:2700K/3000K/4000K/6000K
CRI:>90Ra

LED flexible lighting strip with high CRI LEDs from Unitop

Standard features:

– LED flexible lighting strip is energy efficient.

– LED flexible lighting strips are durable and long-lasting.

– LED flexible lighting strips have a low profile design.

Emotional benefits:

– LED flexible lighting strip can be used for various applications, such as backlighting, under cabinet lighting, etc.

– LED flexible lighting strip is a great way to set the mood and create an inviting atmosphere.

– LED flexible lighting strip is perfect for task lighting because it provides a focused light source.

– LED flexible lighting strip is also great for highlighting artwork or architectural features.

Unitop LED flexible lighting strip with high CRI LEDs has various CCT options as below:

LED Flexible Strip CCT options

Our 24V LED flexible lighting strip comes with various IP rating options:

LED Flexible Strip IP Rating Options

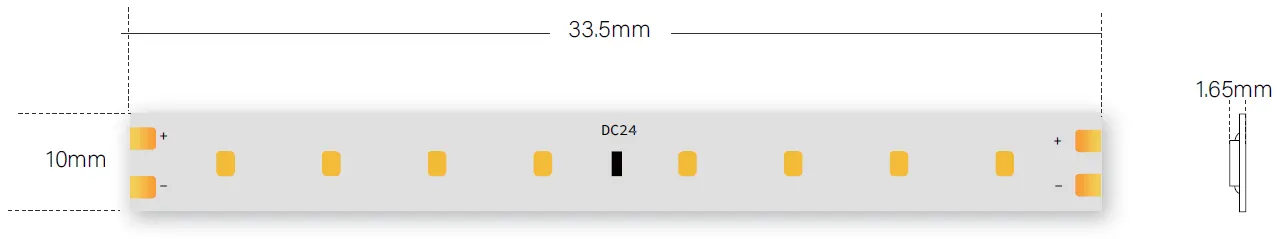

The cutting size of our Unitop LED flexible lighting strip:

cutting size of LED flexible lighting strip

This Unitop LED flexible lighting strip is with below lumen information:

CCT (°K)EfficacyLumen/M
2700K94.4lm/W1416lm/m
3000K94.4lm/W1416lm/m
4000K111lm/W1666lm/m
6000K111lm/W1666lm/m

How to install our 24V LED flexible lighting strip? You can find the wire diagram as below:

LED Flexible Strip wiring

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our LED flexible lighting strips:

Installing LED flexible lighting strips is a straightforward process and can be done by anyone. We will show you how to install Unitop LED flexible lighting strip in just a few easy steps.

– Choose a spot for the flex led strips.

– Use a pencil to measure and mark the LED flexible lighting strip against the wall it will be mounted.

– Remove the backing from the mounting tape and attach it to the LED flexible lighting strip’s adhesive side.

– Stick the led flexible strip onto the desired area.

– Use even pressure when pressing it in place.

– Mount flexible led strip’s light controller if necessary.

– Connect LED flexible lighting strip to a power supply.

Unitop LED flexible lighting strip has a wide range of applications, which include:

– LED flexible lighting strip can be used as an under cabinet light

– LED flexible lighting strip can be used as a task light

– LED flexible lighting strip can be used to highlight artwork or architectural features

– LED flexible lighting strip can be used to set the mood and create an inviting atmosphere.

– LED flexible lighting strip is perfect for backlighting.

Listed below, you will find some examples of the applications:

led strip back lighting

Back Lighting

led strip cove lighting

Cove Lighting

led strip under cabinet lighting

Under Cabinet Lighting

led strip under counter lighting

Under Counter Lighting

Below you will find the FAQ of Unitop LED flexible lighting strip with high CRI LEDs:

What are lumens?

Lumens are the SI derived unit of measure for the luminous flux of a light source. A lumen is defined as the amount of light emitted in 1 second by a perfect radiator at a temperature of 1 candela. LED flexible lighting strip come in different wattages, and each LED flexible strip has a particular lumen output.

Can I cut the LED flexible lighting strips by myself?

Yes, you can cut the LED flexible strip by yourself. Using sharp scissors, you can cut this strip by following the cut marks printed on the surface of the strip.

How to set up LED flexible lighting strips?

The LED flexible lighting strip can be attached in many ways, and the most popular of which is by using the self-adhesive tape on the back of the strip. You can then stick this tape to a clean and dry surface.

Specification:

LED Flexible Lighting Strip

IES/LDT Files:

4000K: IES | LDT | PDF

Spectrum Test Reports:

4000K
