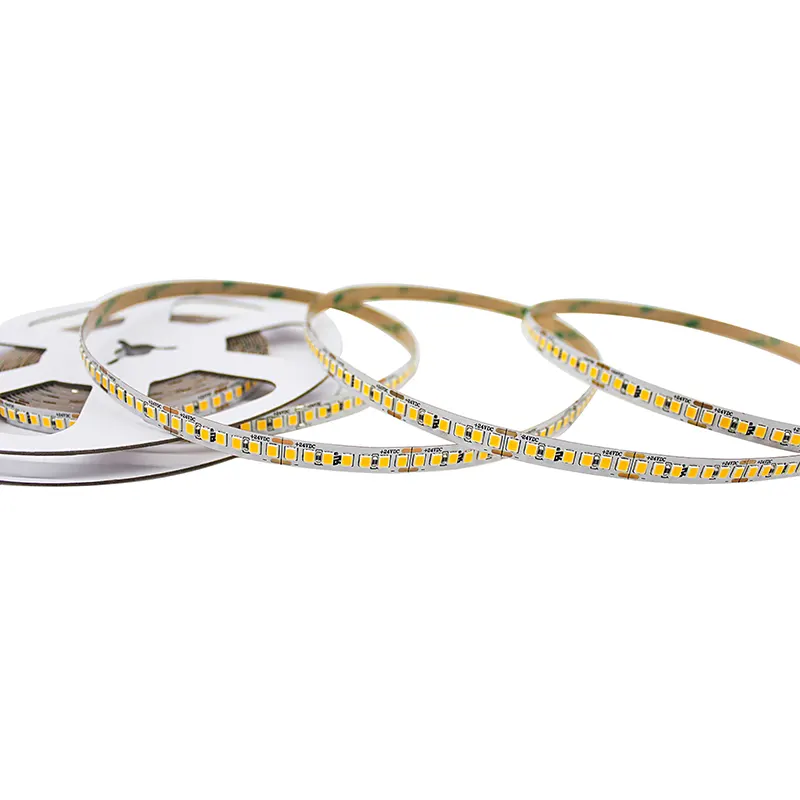

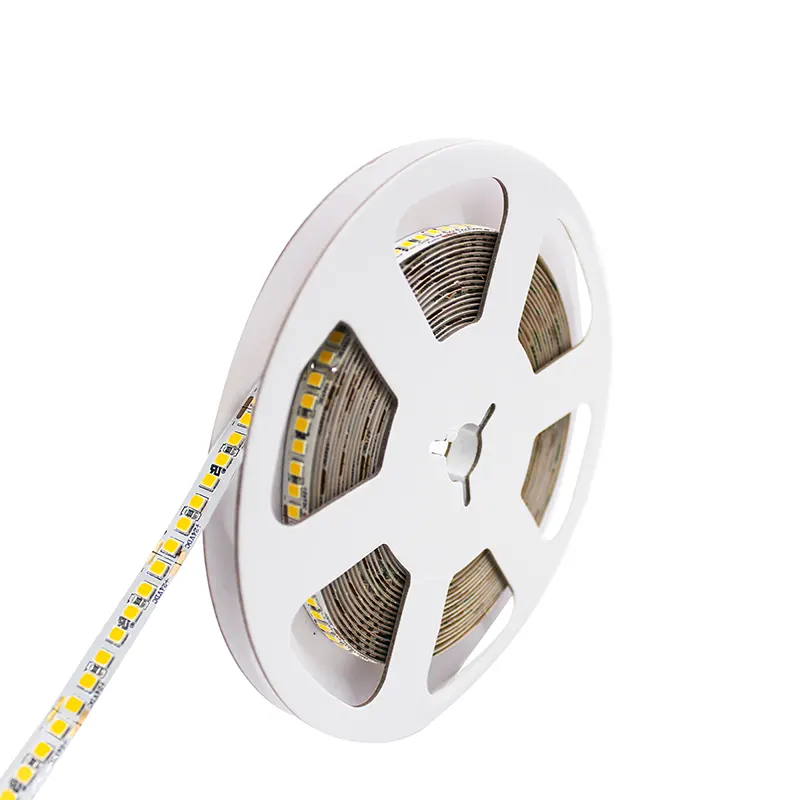

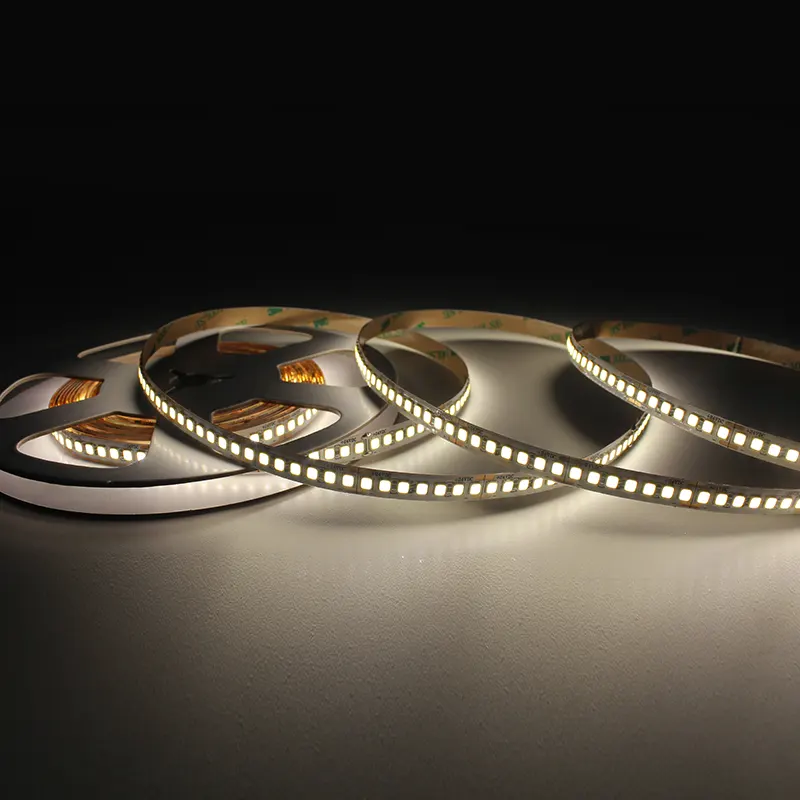

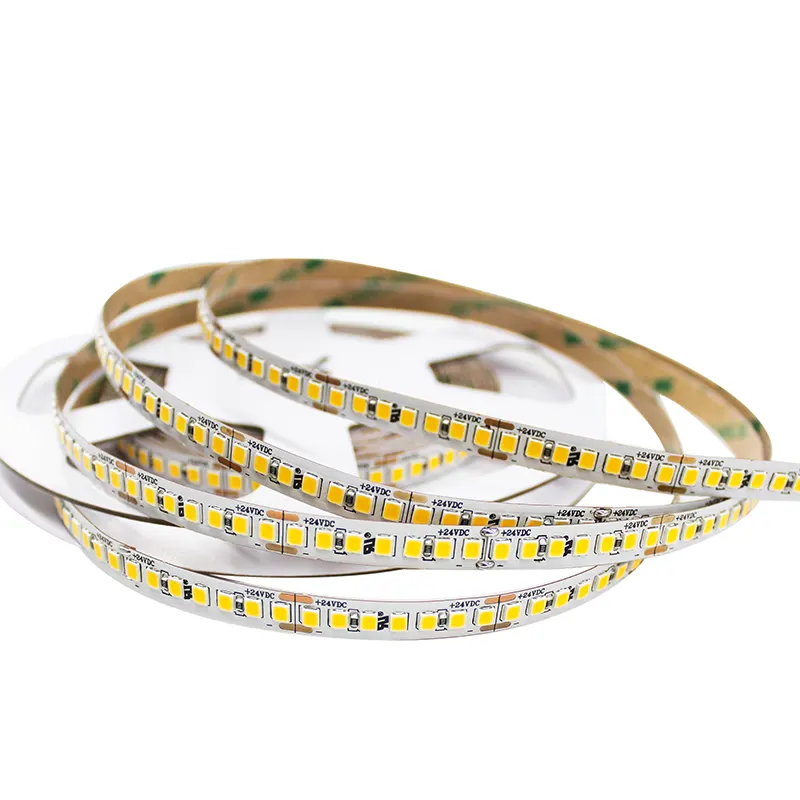

Flex LED Strip Light

24V flexible led strip light makes it possible to stick led lighting anywhere in your home, office, or art installation, freeing you from the constraints of wiring and cords. You can stick led strip lights on the back of your TV, along your hallway, or in any led light niche. The led strip lights come with an adhesive back, so they are easy to install.
Model No.UTFS-TS1210-2408
LED Qty:210pcs/m
Voltage:DC24V
Wattage:18W/M
CCT:2700K/3000K/4000K/6000K
CRI:>90Ra

Flex LED strip lights with high CRI LEDs from Unitop

– Low Voltage: flex led strip light can be powered by a 24-volt power supply, which makes them perfect for use in boats, cars, and other places where low voltage is required.

– Cut to Size: flex led strip light can be cut to size to fit any desired location.

– Brightness: flex led strip light can be made in various brightness levels. Led strip led lights can be dimmed and brightened to adjust led strip led lights to the desired brightness levels.

– Can Be Cut: flex led strip light can be cut to shape led lighting led strip to create the desired effects.
Flexible: The led flex is highly flexible and durable, making the led flexible strip perfect for all types of led lighting applications.

Unitop flex LED strip light with high CRI LEDs has various CCT options as below:

LED Flexible Strip CCT options

Our 24V flex LED strip light comes with various IP rating options:

LED Flexible Strip IP Rating Options

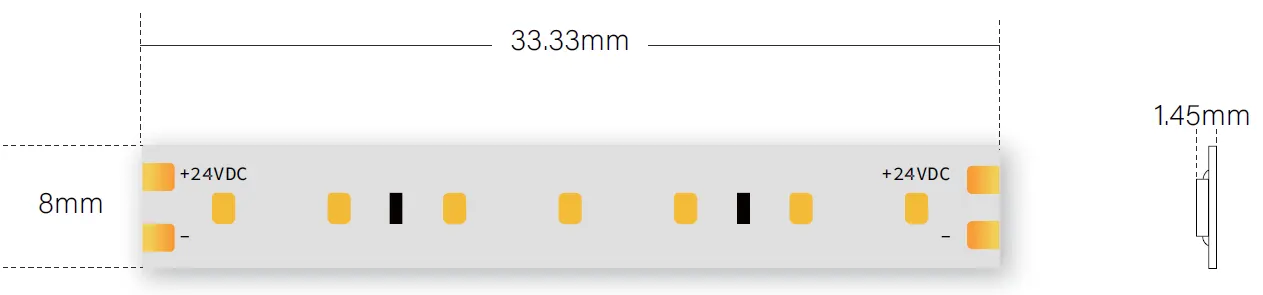

The cutting size of our Unitop flex led strip light:

cutting size of flex led strip light

This Unitop 24V flex led strip light is with below lumen information:

CCT (°K)EfficacyLumen/M
2700K114.72lm/W2141lm/m
3000K114.72lm/W2141lm/m
4000K120.76lm/W2254lm/m
6000K120.76lm/W2254lm/m

How to install our 24V flex led strip light? You can find the wire diagram as below:

LED Flexible Strip wiring

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our 24V flex led strip light:

Installing flex led strip light is a straightforward process and can be done by anyone. We will show you how to install Unitop flex LED strip lights in just a few easy steps.

1. Determine where you want to install the flex LED strip light.

2. Make sure that the surface is clean and dry.

3. Remove the adhesive backing from the LED strip.

4. Align the LED flex strip light with the desired location and press down firmly.

5. Connect the power supply to the LED flexible strip light.

6. Turn on the power supply and enjoy your new 24V LED light strips!

Unitop flex LED strip light has a wide range of applications, which include:

– Cove Lighting: flex led strip light can be used to create a cove lighting effect around the top edge of a room. By using led flexible strip in a color that matches the wall color, led flexible strip will create a subtle and elegant lighting effect.

– Sign Lighting: flex led strip light can be used to create illuminated signs. The led lights can be put in any shape or letter, and the led flexible strip can be cut to size to fit the desired sign.

– Under Cabinet Lighting: flex led strip light is perfect for under cabinet lighting. The soft and even light that led flexible strip provides is perfect for highlighting countertops and cabinets.

– Car Lighting: flex led strip light can be used to create lighting effects in cars. The led lights can be put in any shape, and the led flexible strip can be cut to size to fit the desired location.

– Christmas decorations. The led lights can be put in any shape, and the led flexible strip can be cut to size to fit the desired decoration.

– Boat Lighting: flex led strip light can be used to create lighting effects on boats. The led lights can be put in any shape, and the led flexible strip can be cut to size to fit the desired location.

Listed below, you will find some examples of the applications:

led strip back lighting

Back Lighting

led strip cove lighting

Cove Lighting

led strip under cabinet lighting

Under Cabinet Lighting

led strip under counter lighting

Under Counter Lighting

Below you will find FAQ of Unitop flex LED strip light with high CRI LEDs:

What are lumens?

Lumens are the SI derived unit of measure for the luminous flux of a light source. A lumen is defined as the amount of light emitted in 1 second by a perfect radiator at a temperature of 1 candela. Flex led strip lights come in different wattages, and each LED flexible strip has a particular lumen output.

Can I cut the flex led strip lights by myself?

Yes, you can cut the LED flexible strip by yourself. Using sharp scissors, you can cut this strip by following the cut marks printed on the surface of the strip.

How can I install the flex led strip lights?

The 3M double-sided adhesive on the back of the LED strip allows you to install the lights in most locations. Before mounting the strip, be sure to thoroughly clean the surface to remove all dust and particulate matter. Certain surfaces may require you to take additional measures to secure the flex led strip light into place.

Specification:

Flex LED Strip Light with

IES/LDT Files:

3000K: IES | LDT | PDF

Spectrum Test Reports:

3000K
