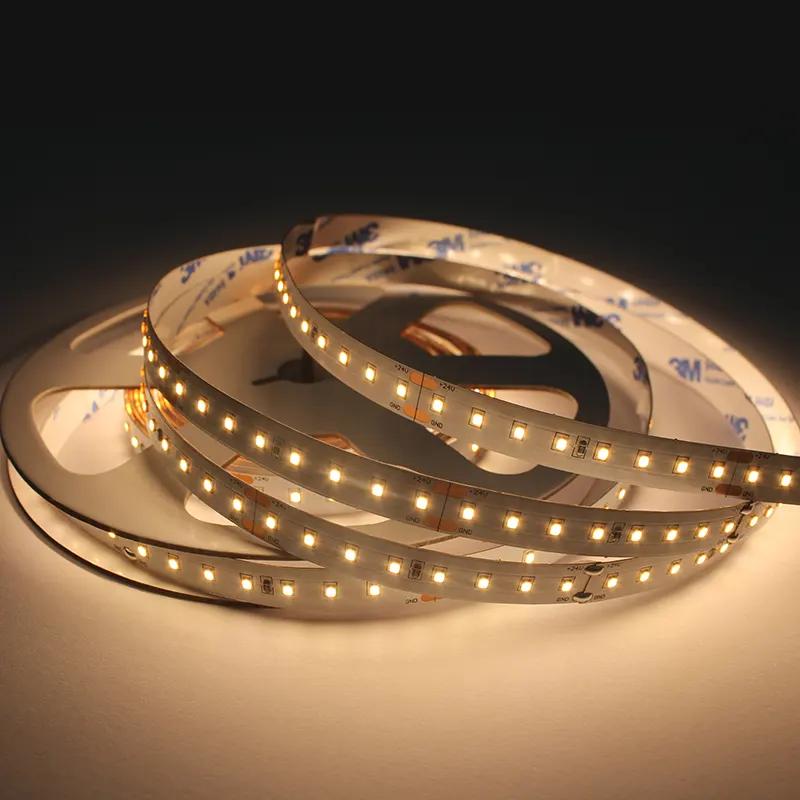

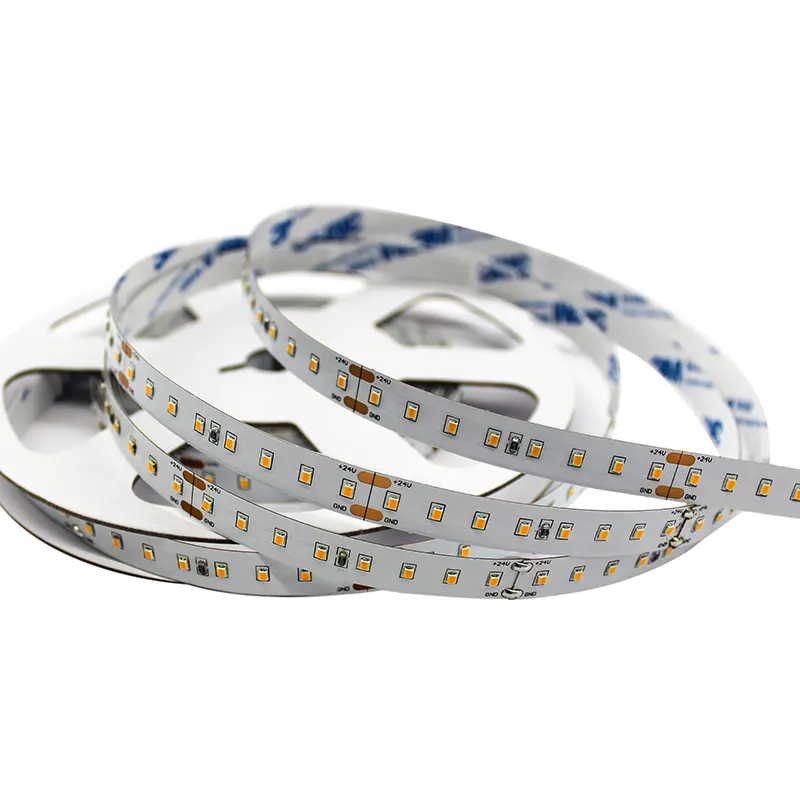

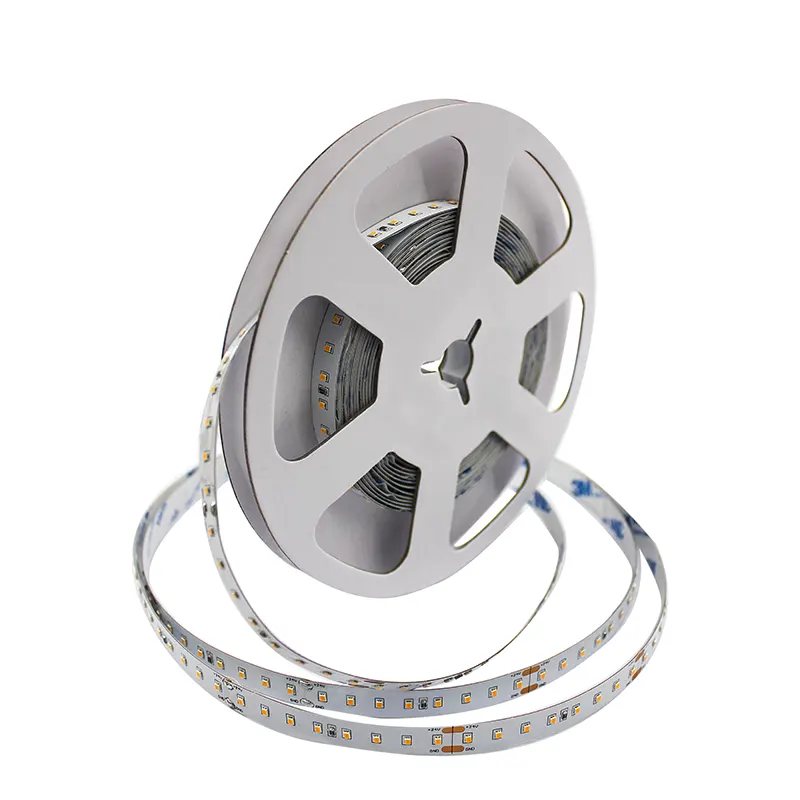

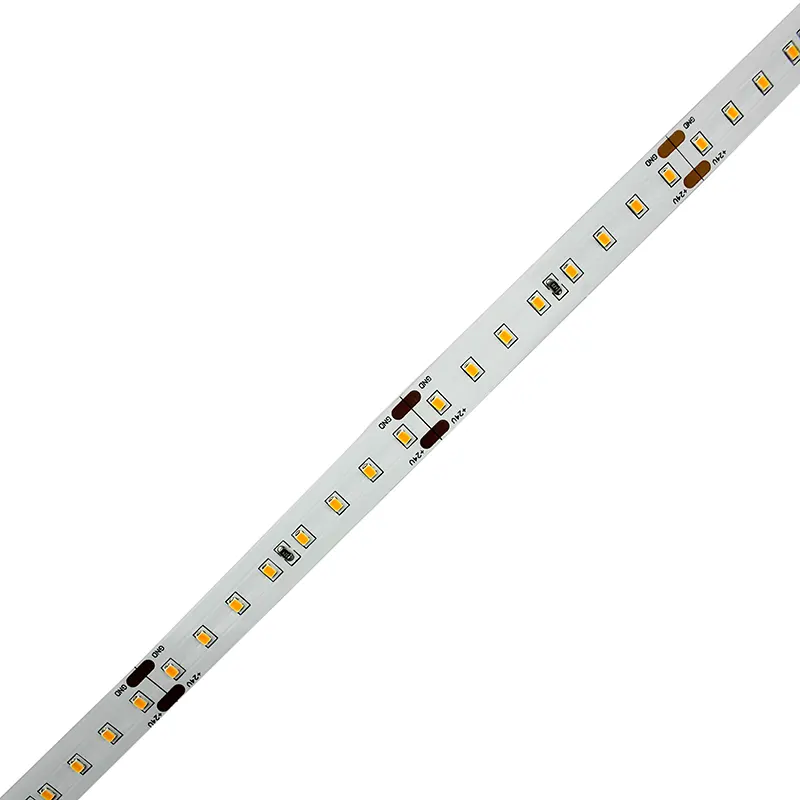

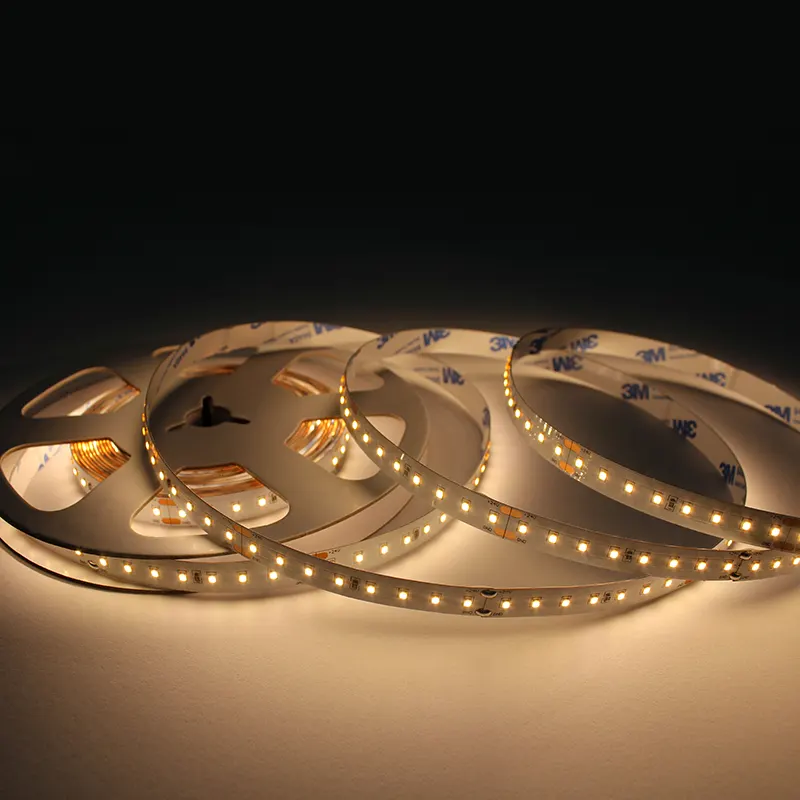

LED Flex Rope with high CRI Top SMD2216 128LEDs/M

Unitop LED flex rope is adopting high CRI Top SMD2216 LEDs, it is very thin and can be bent to fit different shapes. This makes it a good choice for applications where space is limited. LED flexible strip also has a long lifespan, so it is a good choice for applications where reliability is important.
Model No.UTFS-TS2128-2410
LED Qty:128pcs/m
Voltage:DC24V
Wattage:9.6W/M
CCT:2700K/3000K/4000K/6000K
CRI:>90Ra

LED flex rope with high CRI SMD2216 LEDs from Unitop

– They are led flexible, which is what makes them so attractive .

– The leds on led flexible strips are usually placed close enough to provide a continuous light.

– led flex strips are easy to install and can be cut to size.

– led flexible strips offer a wide range of colors that can be customized to the needs of the customer .

– Unitop LED flex rope come with a warranty of 3 years.

Unitop LED flex rope with high CRI LEDs has various CCT options as below:

LED Flexible Strip CCT options

Our SMD2216 LED flex strip comes with various IP rating options:

LED Flexible Strip IP Rating Options

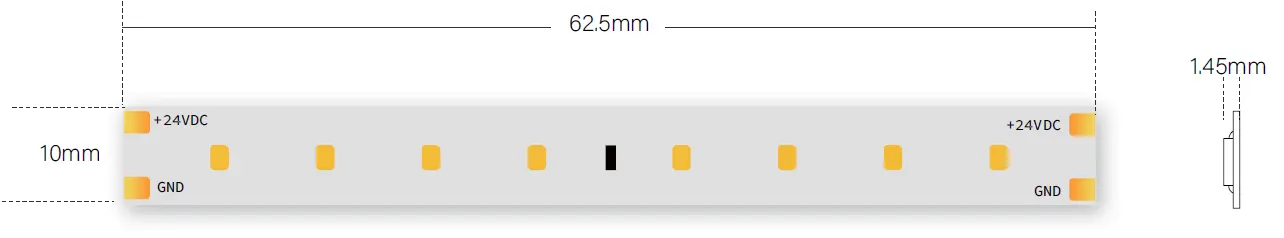

The cutting size of our Unitop high CRI LED strip lighting

cutting size of LED flex rope

This Unitop 24V high CRI LED lighting strip is with below lumen information:

  • CCT (°K)
  • 2700K
  • 3000K
  • 4000K
  • 6000K
  • Efficacy
  • 94.77lm/W
  • 94.77lm/W
  • 99.5lm/W
  • 99.5lm/W
  • Lumen/M
  • 988lm/m
  • 988lm/m
  • 1037lm/m
  • 1037lm/m

How to install our 90Ra CRI flex LED rope? You can find the wire diagram as below:

LED Flexible Strip wiring

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our LED flex ropes:

Installing LED flex rope can be a daunting task, but with a little know-how, it’s a breeze. Here are some tips to help you get started:

– Make sure the surface you’re installing the LED flexible strip is clean and dry.

– Cut the LED rope to the desired length using scissors or a utility knife.

– Peel the adhesive backing off of the LED flex strip and apply it to the surface.

– Connect the wires coming from the LED flexible strip to an appropriate power supply.

– Turn on the power and enjoy your new lighting!

LED flex rope can be used as a lighting source in a variety of applications, including:

– commercial and residential buildings

– retail spaces

– galleries

– museums

– theaters

– transportation hubs

– stadiums

Listed below you will find some examples of the applications:

led strip back lighting

Back Lighting

led strip cove lighting

Cove Lighting

led strip under cabinet lighting

Under Cabinet Lighting

led strip under counter lighting

Under Counter Lighting

Below you will find FAQ of Unitop LED flex rope with high CRI LEDs:

What  is color temperature of LED?

Color temperature is the description of a type of light, most often white light, with reference to the warmth or coolness of its color. The higher the color temperature, the whiter the light appears.

What is CRI of LED?

The color rendering index (CRI) of an LED is a measure of its ability to show the colors of various objects accurately. The higher the CRI, the better it can show color. The CRI of an LED is measured on a scale from 0 to 100. An LED with a CRI of 80 or above is considered good for general lighting. LED flex rope with more than 90Ra means it is superb.

Specification:

LED Flex Rope with high CRI Top SMD2216 128LEDs/M

IES/LDT Files:

2700K: IES | LDT | PDF

Spectrum Test Reports:

2700K
