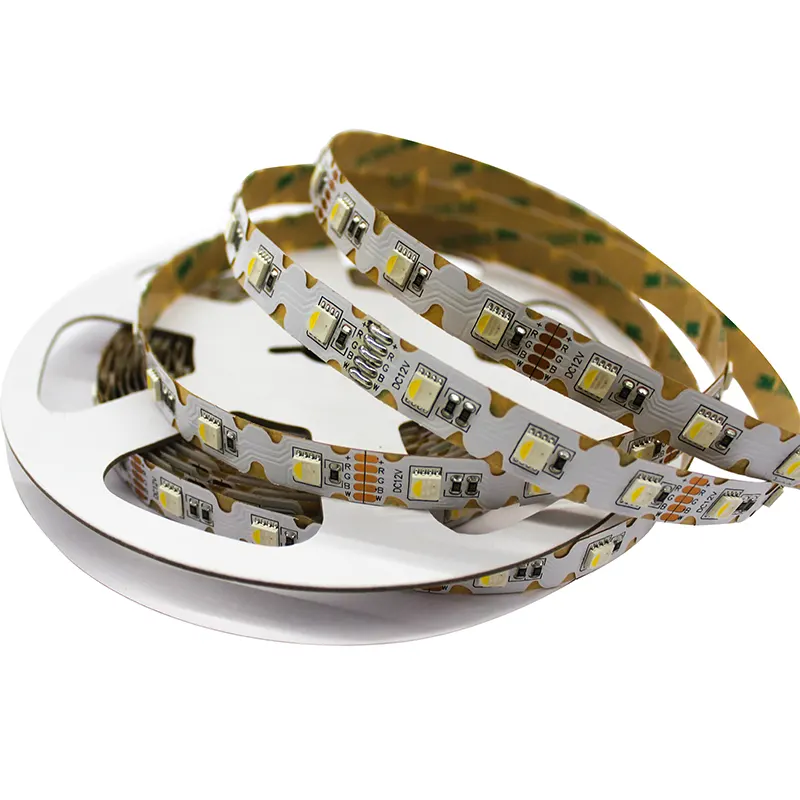

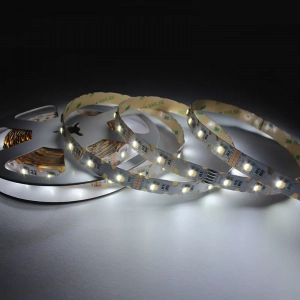

Zigzag LED Strip RGBW With SMD5050 48LEDs/M

The S-Shape design of this Zigzag LED strip can make it bent up to 90°! Never worry about not being able to form the shape you want for your room again with this flexible and bendable LED strip. The adhesive backing and connectors on the strip allow you to create any angle or design you want, and the adhesive tape is also easy to remove without any residue left behind.

Model No.	UTFS-SS6048-1212RGBW
LED Qty:	48pcs/m
Voltage:	DC12V
Wattage:	12W/M
Color:	RGBW

Description Specification Application FAQ Downloads

Zigzag LED Strip RGBW With SMD5050 48LEDs/M from Unitop

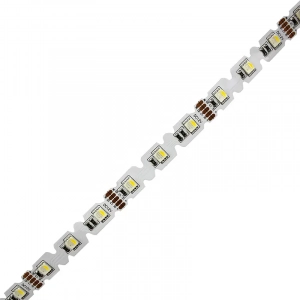

Special-designed Zigzag shap flexible PCB makes the LED strips bendable in every direction easily.

Four channel flexible led strip with RGB+W/NW/CW, 4-in-1 chip SMD LEDs.

Can be cut every 3 LEDs(every 62.5mm), easy for installation.

Suitable for various projects including office, home, commercial and industrial.

Unitop Zigzag LED Strip RGBW has different colors as below:

Unitop Zigzag LED Strip RGBW white colors are with below CCT options:

Our Zigzag RGBW LED Ribbon Strip comes with below IP rating options:

The cutting size of Unitop Zigzag flex Strip RGBW:

This Unitop Zigzag LED Light Strip RGBW is with below lumen:

CCT (°K)
RGBW2700K
RGBW3000K
RGBW4000K
RGBW6000K

Efficacy
27.87lm/W
27.87lm/W
28.98lm/W
28.98lm/W

Lumen/M
222.1lm/m
222.1lm/m
231.5lm/m
231.5lm/m

How to install our Zigzag Flex LED Ribbon? You can find the wire diagram as below:

wire connection S Shape LED flexible strip

Want to know the packing information? See below:

Below two cautions need your highest attention:

Please also pay attention to below issues while installing our Zigzag LED Strip RGBW:

Do not install the LED flexible strip RGBW in a location with high temperature or high humidity.

Do not install the S shape LED strip RGBW in a location where relative humidity is higher than 65%.

Do not install the RGBW LED tape lighting in a location where corrosive gas (e.g. Cl2, H2S, NH3) is present.

Install the LED ribbon strips on a flat and even surface to make sure the perfect installation.

Zigzag LED Strip RGBW With SMD5050 48LEDs/M has a variety of applications.

The Zigzag RGBW LED flexible strip light is a new type of LED strip light that can mix colors and adjust the color temperature. This type of light has a variety of applications and can be used anywhere, such as:

1) Home: Interior decoration and lighting

2) Restaurant: Interior decoration and lighting

3) Exhibition Hall: Interior decoration, highlighting features, and lighting

4) Store: Interior decoration and lighting

Listed below you will find some examples of the applications:

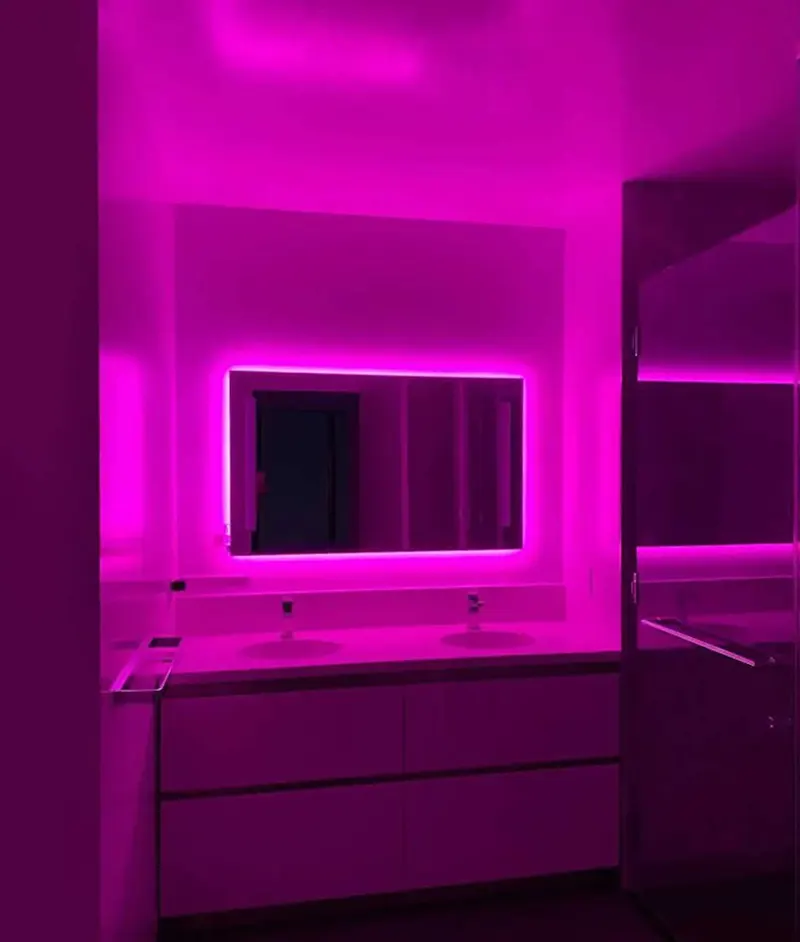

Bathroom Lighting

Bedroom Lighting

Commercial Lighting

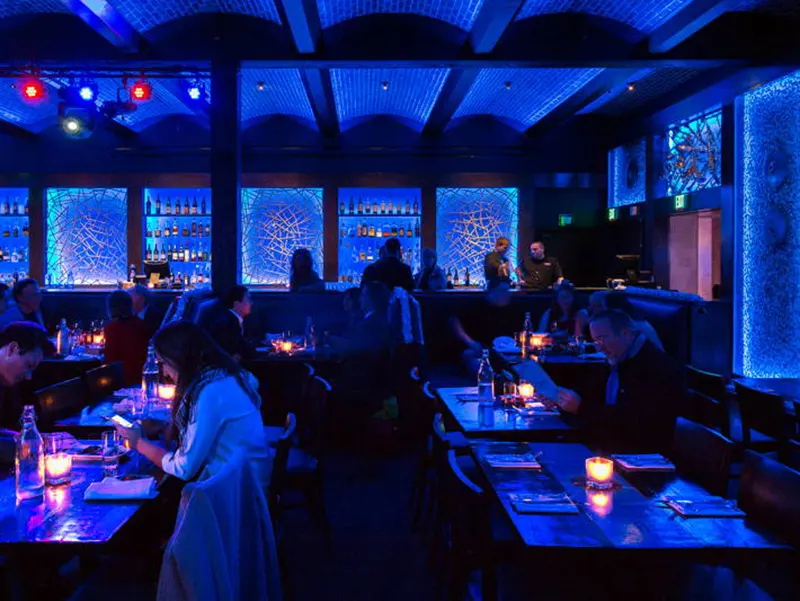

Restaurant Lighting

FAQ of Unitop Zigzag LED Strip RGBW With SMD5050 48LEDs/M:

What is the lifespan of Zigzag LED flexible strip RGBW? What is the warranty?

-The lifespan of a LED flexible strip depends on the quality and the usage of the LED. In general, a good quality LED can last about 50,000 hours.

-In general, three-year warranty.

What voltage do this RGBW LED strips work on?

Unitop Zigzag RGBW LED flexible strips work on 12 volts DC.

Zigzag LED Strip RGBW With SMD5050 48LEDs/M

Zigzag LED Strip RGBW With SMD5050 48LEDs/M from Unitop

Unitop Zigzag LED Strip RGBW has different colors as below:

Unitop Zigzag LED Strip RGBW white colors are with below CCT options:

Our Zigzag RGBW LED Ribbon Strip comes with below IP rating options:

The cutting size of Unitop Zigzag flex Strip RGBW:

This Unitop Zigzag LED Light Strip RGBW is with below lumen:

How to install our Zigzag Flex LED Ribbon? You can find the wire diagram as below:

Want to know the packing information? See below:

Below two cautions need your highest attention:

Please also pay attention to below issues while installing our Zigzag LED Strip RGBW:

Zigzag LED Strip RGBW With SMD5050 48LEDs/M has a variety of applications.

Listed below you will find some examples of the applications:

FAQ of Unitop Zigzag LED Strip RGBW With SMD5050 48LEDs/M:

What is the lifespan of Zigzag LED flexible strip RGBW? What is the warranty?

What voltage do this RGBW LED strips work on?

Specification:

IES/LDT Files:

Spectrum Test Reports:
