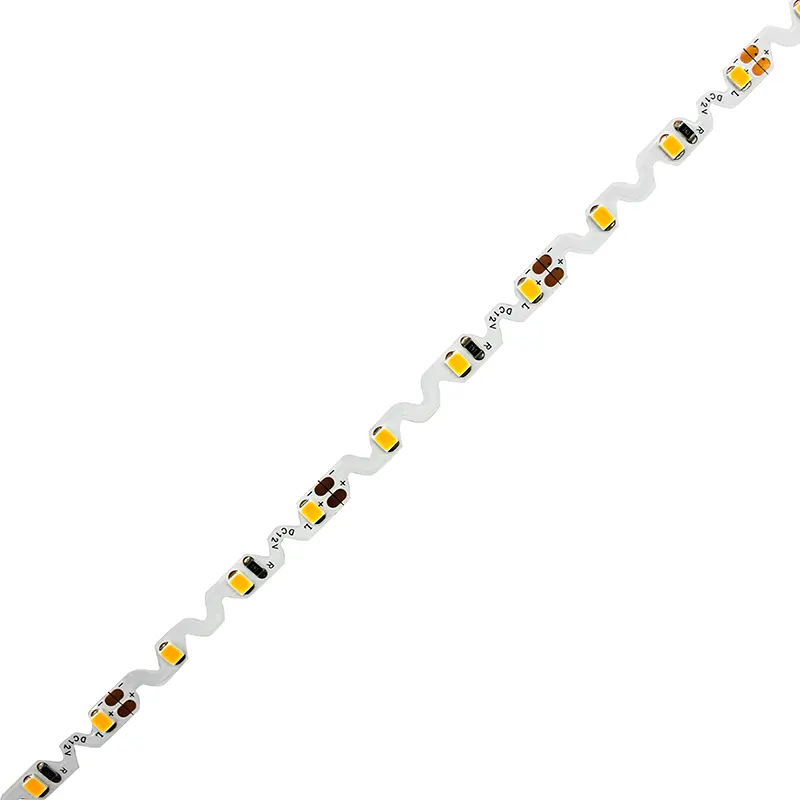

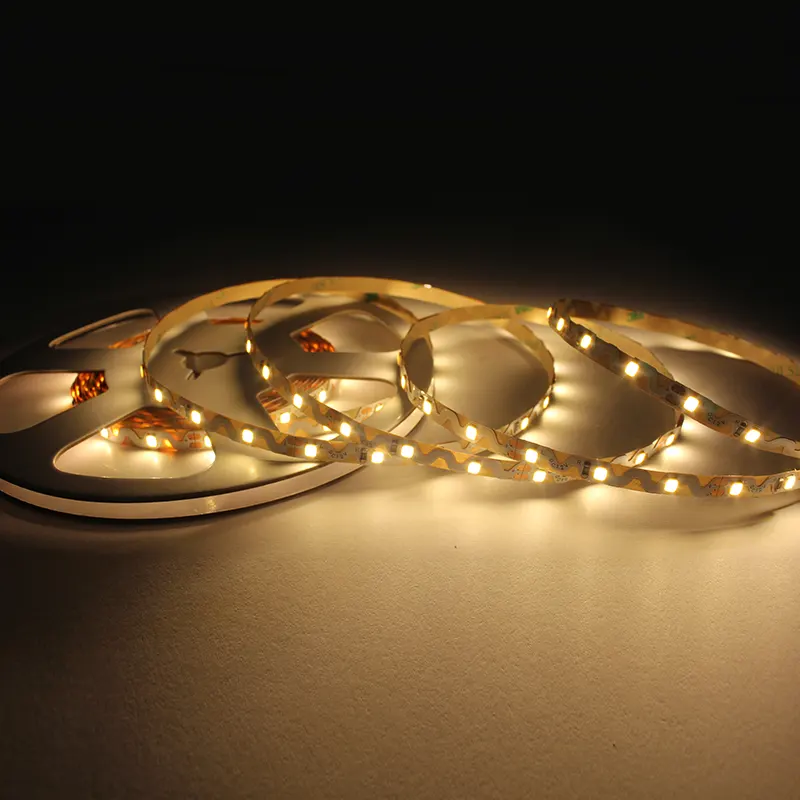

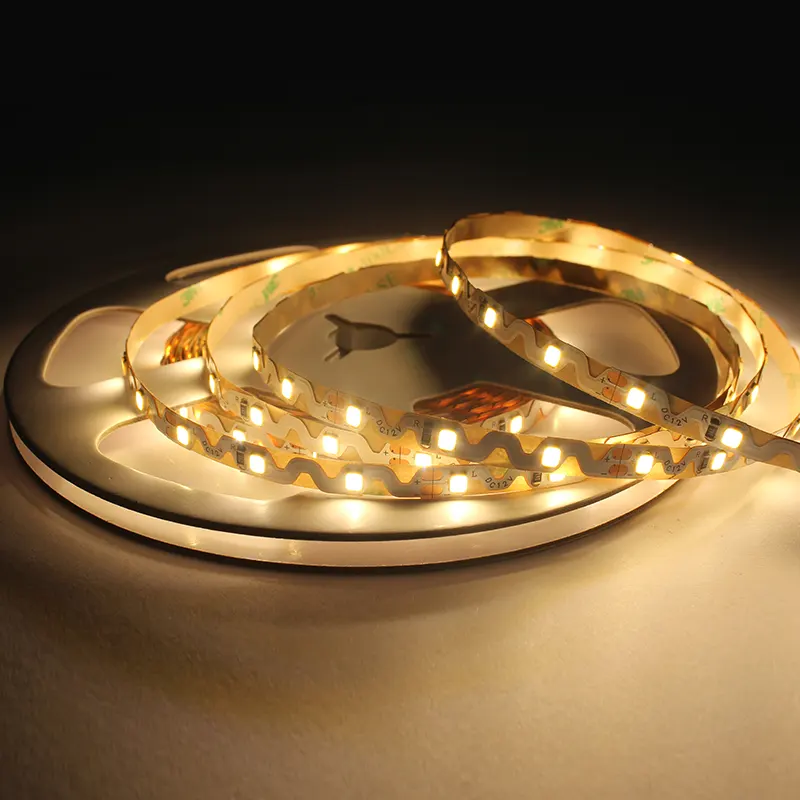

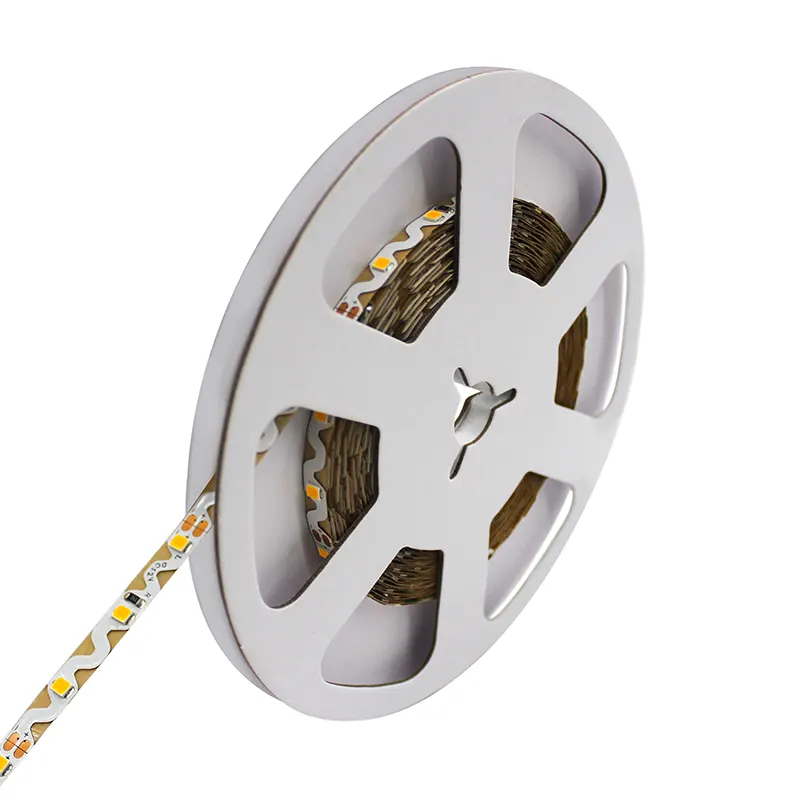

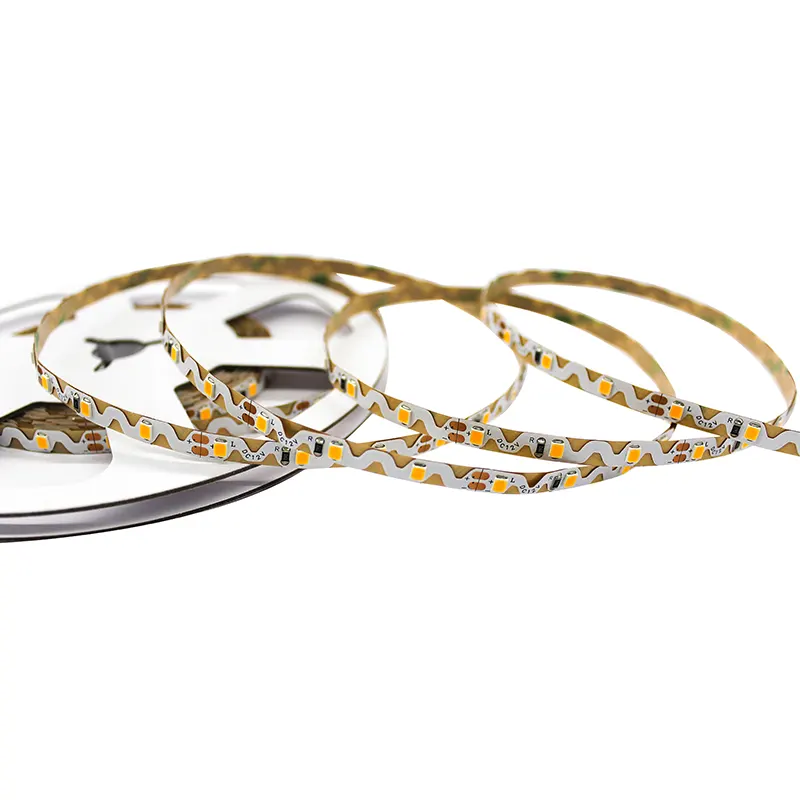

S Shape LED flexible strip With SMD2835 60LEDs/M

The perfect S Shape LED flexible strip for an amazing lighting effect you’ve never seen before. Be surprised by the curves, arcs, and shapes this LED strip can make. With the S-shape design, this LED strip is capable of bending or forming more than 90 degrees. You can create any shape you want with this sleek design.

Model No.UTFS-SS1060-1206
LED Qty:60pcs/m

S Shape LED flexible strip With SMD2835 60LEDs/M from Unitop

Special S type PCB design, bendable in every way

LM80 2835 SMD with Epistar chip inside

Three leds per unit can be cut according to printing mark

Ideal for office, residential, retail and industry lighting

Unitop S Shape LED flexible strips are with below CCT options:

LED Flexible Strip CCT options

Our Type S LED Ribbon comes with below IP rating options:

IP options S Shape LED flexible strip

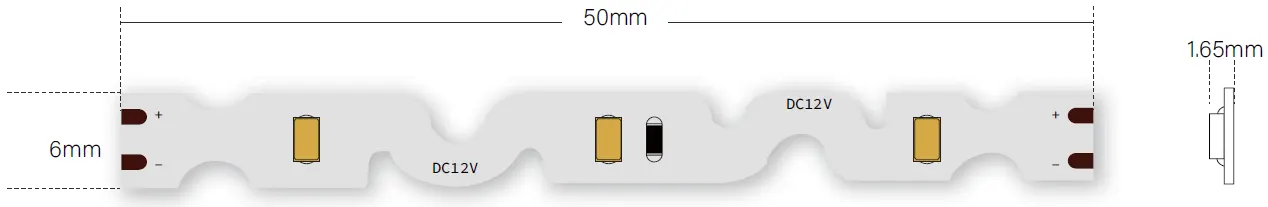

The cutting size of Unitop S-shape LED Strip:

cutting size S Shape LED flexible strip

This Unitop S-type LED Light Strip is with below lumen:

  • CCT (°K)
  • 2700K
  • 3000K
  • 4000K
  • 6000K
  • Efficacy
  • 109.11lm/W
  • 109.11lm/W
  • 117.8lm/W
  • 117.8lm/W
  • Lumen/M
  • 540.9lm/m
  • 540.9lm/m
  • 565.4lm/m
  • 565.4lm/m

How to install our S-type LED tape light? You can find the wire diagram as below:

wire connection S Shape LED flexible strip

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our S Shape LED flexible strip:

1. If you are an avid DIY person, then you are likely aware of the need for LED drivers when working with S-Shape LED strips. However, not all LED drivers are compatible with flexible LED strips, so it is important to make sure your LEDs and drivers are compatible before using them together.

2. In order for a surface to be considered suitable for LED flexible strip installation, it must be clean and dry so the 3M adhesive tapes can be easily secured.

3. Do not install the S Shape LED strips in places where there is high temperature (e.g. near oven, heater). The LEDs are sensitive to too much heat and if installed near a high-temperature place, they will overheat and die.

S Shape LED flexible strip With SMD2835 60LEDs/M has a variety of applications.

1. Decorative lighting for exhibition shelves, advertising light box and hotel etc;

2. Backlight for edge lighting/signage;

3. Holiday decorative lights, residential and outdoor lighting;

4. Bridge, garden, road and car lighting etc;

5. Long-distance project but with inconvenient wiring;

Listed below you will find some examples of the applications:

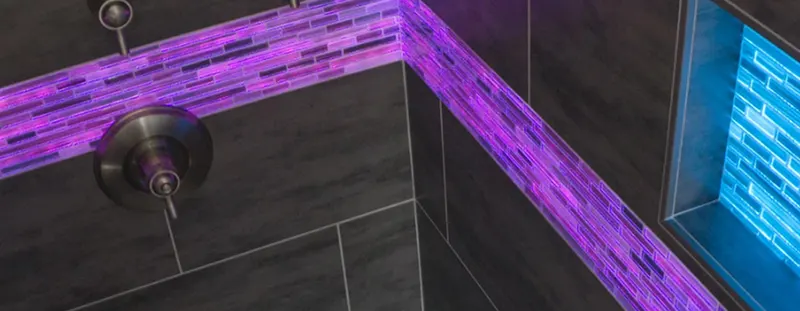

LED strip light used in bathroom (24)

Bathroom Lighting

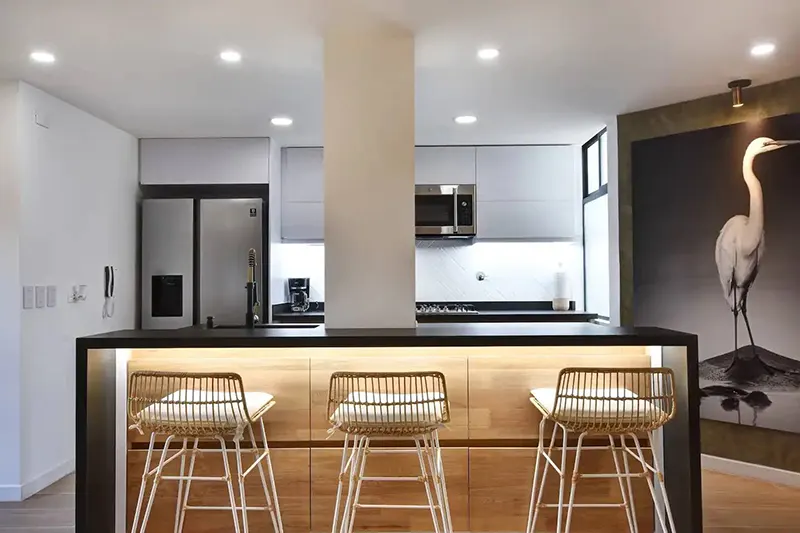

LED flexi strip used in Kitchen (5)

Kitchen Lighting

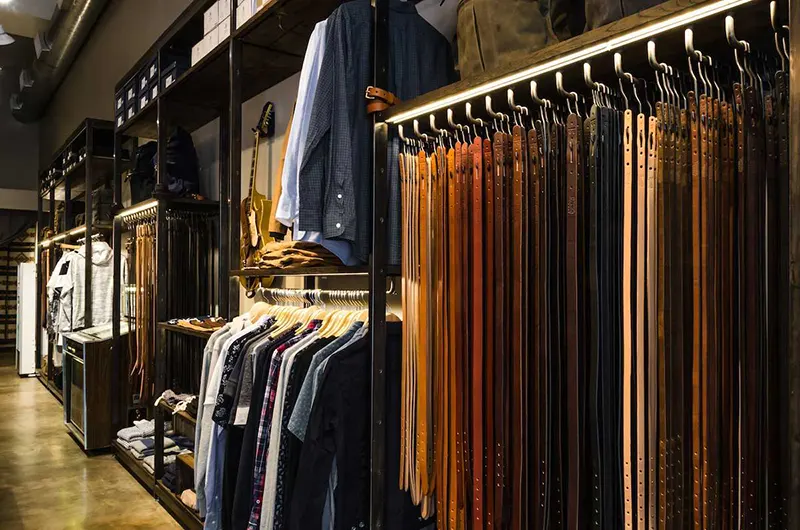

Flex LED ribbon used in commercial and architectural (24)

Commercial Lighting

flexible LED strip lighting used in restaurant (7)

Restaurant Lighting

FAQ of Unitop S Shape LED flexible strip With SMD2835 60LEDs/M:

Can you leave S Shape LED strip lights on all night?

Yes,well-manufactured LED lights are extremely long-lasting and also can be left on 24 hr, 7 days a week. This is because, unlike standard types of light, LEDs generate minimal quantities of heat, which indicates they are unlikely to get too hot or set ablaze.

How long do S Shape LED light strips last for?

LEDs have an extremely long expected life-span, compared to both fluorescent as well as incandescent lights. With an ordinary life-expectancy of some 50,000 hrs, LED strip lights will certainly still be lighting on in 17 years’ time, long after their standard equivalents will have run out.


S Shape LED flexible strip With SMD2835 60LEDs/M

IES/LDT Files:

3000K: IES | LDT | PDF

Spectrum Test Reports:
