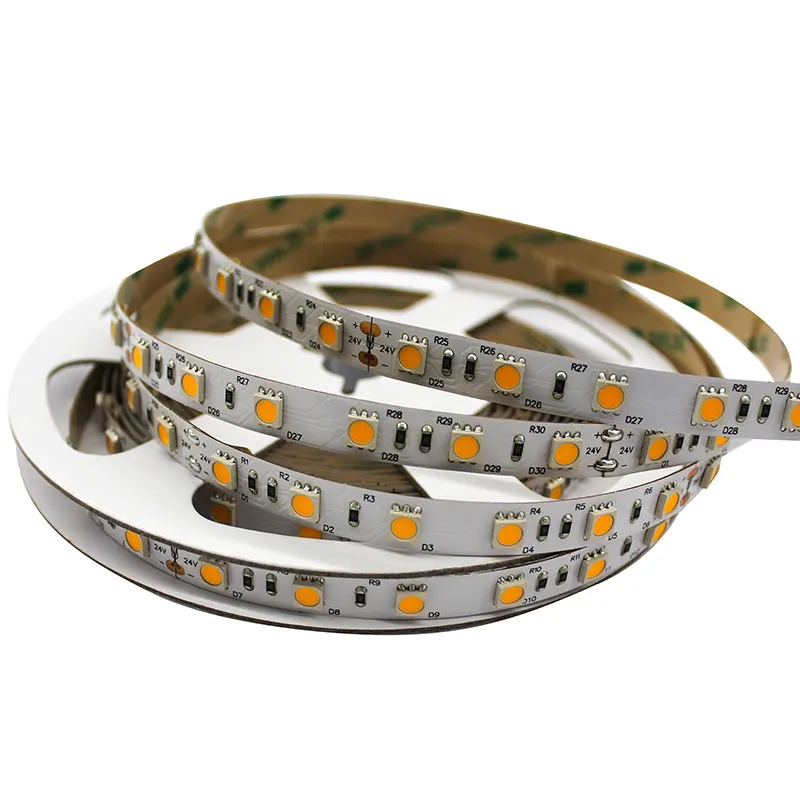

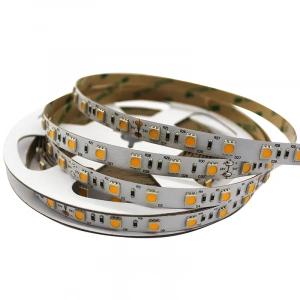

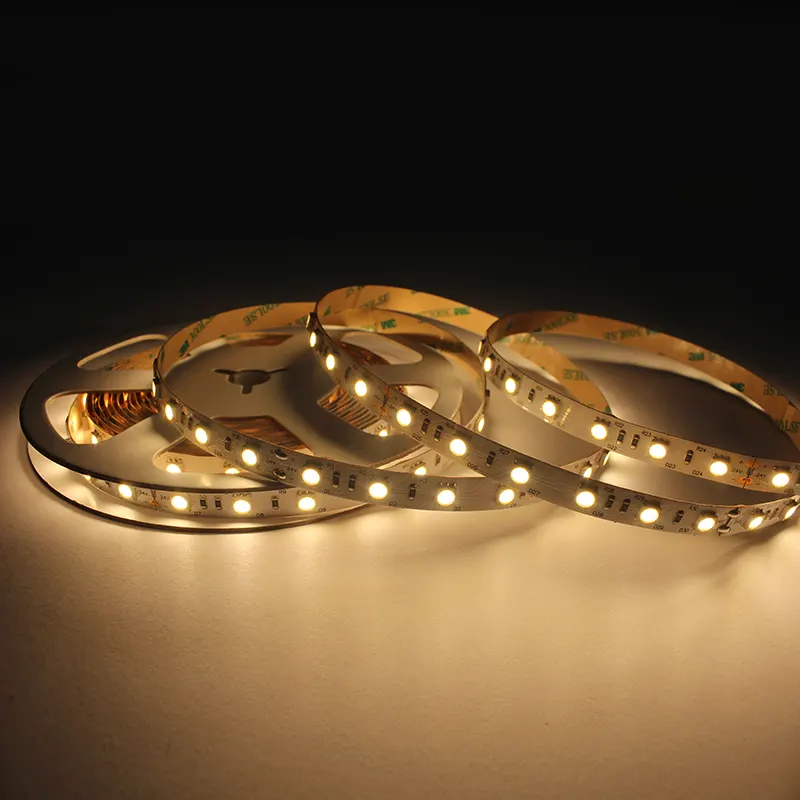

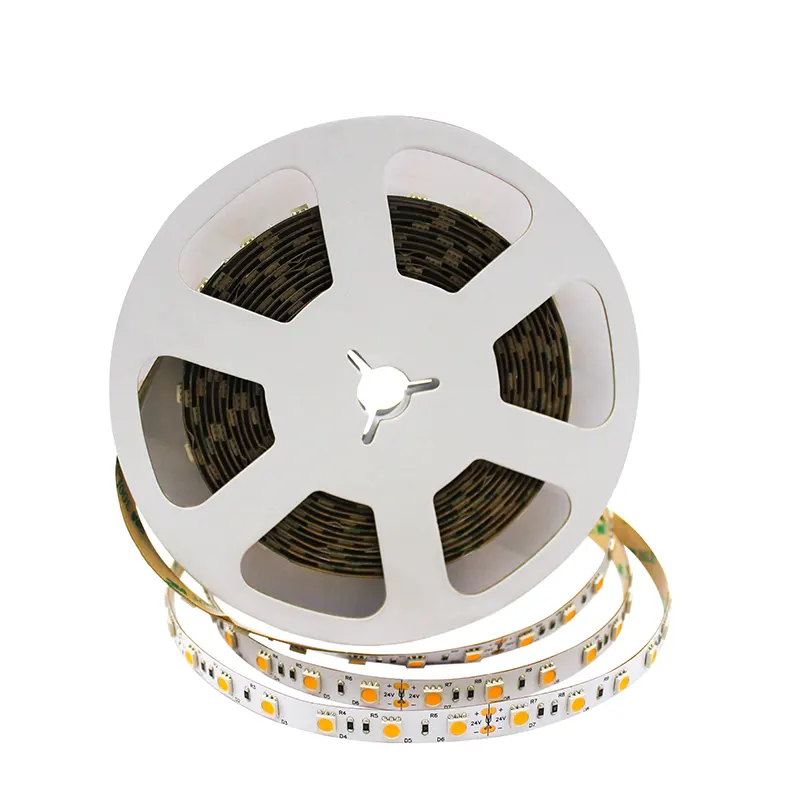

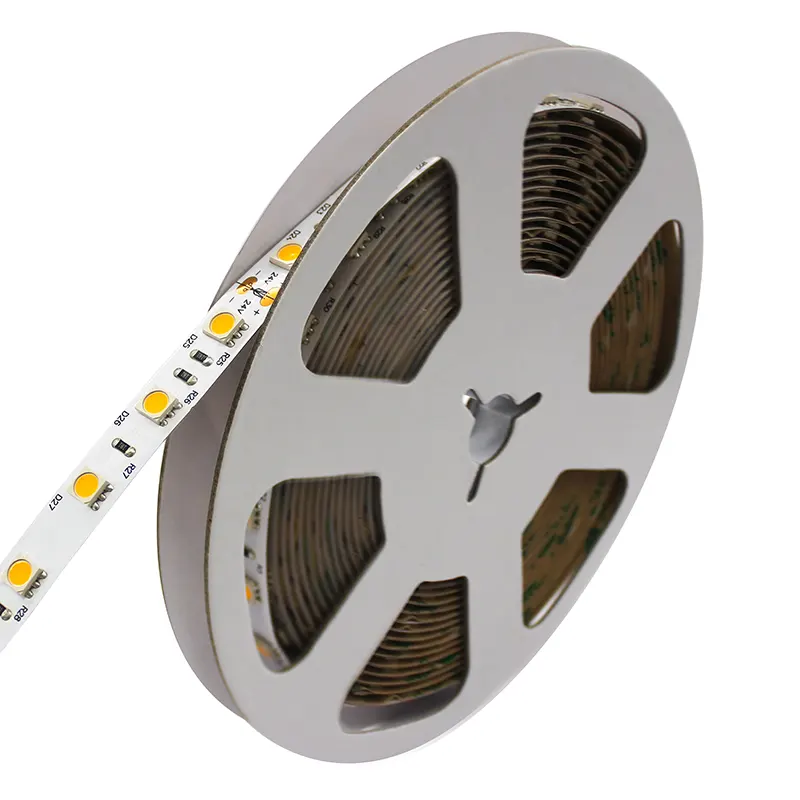

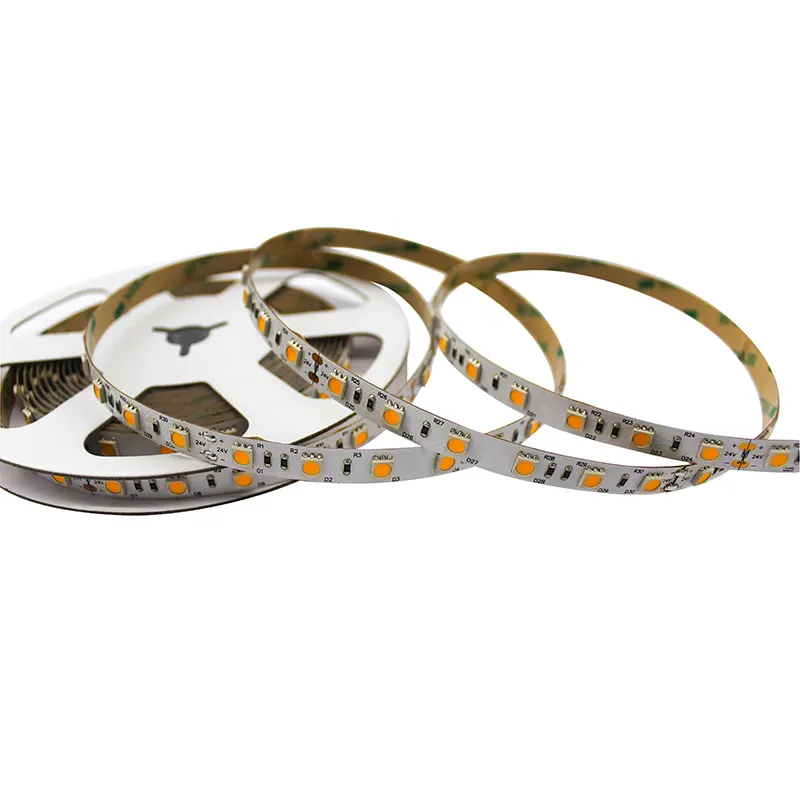

LED Tape Light With SMD5050 60LEDs/M

Get the bright, uniform LEDs with our LED flexible strip. This LED tape light is made of SMD5050 LEDs for vibrant illumination. The strips are cuttable and reconnectable – you can cut them to length whenever you need, then they’ll snap back together. It’s easy to install and comes with everything you need for an immediate installation.

Model No.UTFS-CS6060-2410
LED Qty:60pcs/m
Voltage:DC24V
Wattage:14.4W/M
CCT:2700K~6000K
CRI:>90Ra

LED Tape Light With SMD5050 60LEDs/M from Unitop

LED tape lights are efficient and convenient to use in many projects, such as making a lightbox.

The uniform illumination makes it easy to focus on small objects or handcrafts.

You can cut the strip into smaller sections and reconnect them to work with any project.

Long lifespan means you can enjoy the bright light from these LEDs for 50000 hours!

Unitop LED Tape Lights are with below CCT options:

LED Flexible Strip CCT options

Our LED Tape Lighting comes with below IP rating options:

LED Flexible Strip IP Rating Options

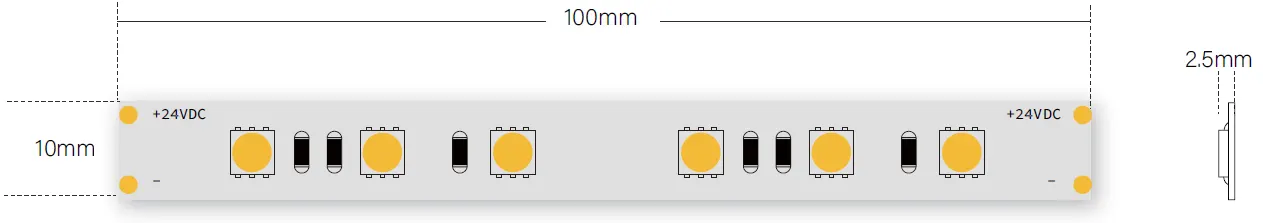

The cutting size of Unitop LED flexible Tape Light:

LED Tape Light cutting size

This Unitop LED Tapelight is with below lumen:

  • CCT (°K)
  • 2700K
  • 3000K
  • 4000K
  • 6000K
  • Efficacy
  • 87.5lm/W
  • 87.5lm/W
  • 93.34lm/W
  • 93.34lm/W
  • Lumen/M
  • 1246lm/m
  • 1246lm/m
  • 1329lm/m
  • 1329lm/m

How to install our LED Flex Tape Light? You can find the wire diagram as below:

LED Flexible Strip wiring

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our LED Tape Light:

1. Storage demands of LED strip lights: The silica gel of LED lights has wetness absorption properties. The light strips ought to be saved in a dry as well as sealed atmosphere. It is advised that the storage space duration is not too long. Please utilize or reseal it in time after unboxing. Please do not unbox before usage.

2. It is strictly prohibited to press the LED with hard and also sharp items:The LED strip light is LED light bonded on copper wire or adaptable PCBs. When the item is installed, it is advised not to push the surface of the LED straight with your fingers or hard items. It is strictly prohibited to tip on the LED strip lights, so as not to damage the LEDs and let the LED light not light up.

LED Tape Light With SMD5050 60LEDs/M has a variety of applications.

Commercial lighting: the lights can be used to showcase products by illuminating them from all angles.

Construction: the lights can also provide safety for workers because they’re easy to install and don’t require any installation fees.

Restaurants: they can achieve different ambiances by changing the color of the light, such as dimming it for a romantic dinner or brightening it up for a high-energy event.

Listed below you will find some examples of the applications:

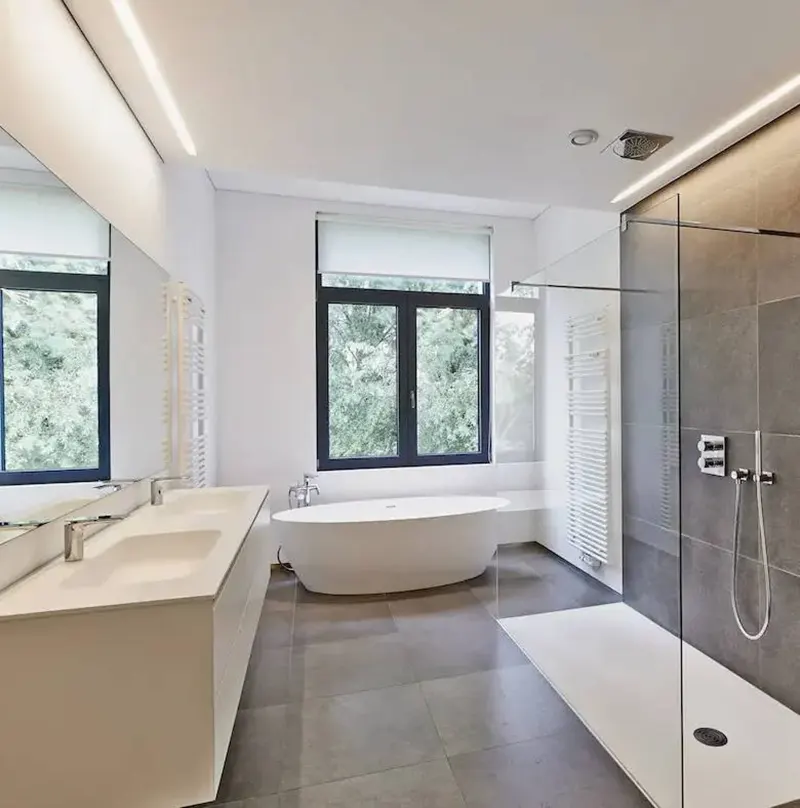

LED strip light used in bathroom (15)

Bathroom Lighting

LED flex tape used in bedroom (15)

Bedroom Lighting

Flex LED ribbon used in commercial and architectural (15)

Commercial Lighting

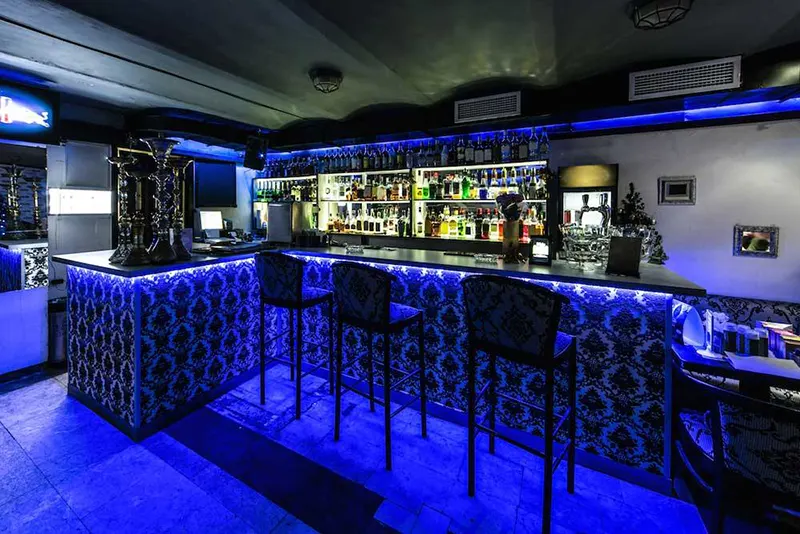

flexible LED strip lighting used in restaurant (15)

Restaurant Lighting

FAQ of Unitop LED Tape Light With SMD5050 60LEDs/M:

How do I know what type of LED flexible strip?

An LED strip summary commonly consists of a 4-digit number such as 5050 or 2835. The number usually defines the dimension of the chip. For example, a 5050 LED chip gauges 5.0 mm width by 5.0 mm height. Similarly, a 2835 chip procedures 2.8 mm wide by 3.5 mm height.

Can you leave LED strip lights on all night?

Yes,well-manufactured LED lights are extremely long-lasting and also can be left on 24 hr, 7 days a week. This is because, unlike standard types of light, LEDs generate minimal quantities of heat, which indicates they are unlikely to get too hot or set ablaze.

Do LED strip lights elevate electrical bill?

LED strip lights do not cost a great deal of electrical power contrasted to traditional incandescent lights. Consumption is straight decided by the size of the strip light as well as its light intensity. A conventional 5M strip will certainly set you back much less than $3 a year to work on average.

Specification:

LED Tape Light With SMD5050 60LEDs/M

IES/LDT Files:

4000K: IES | LDT | PDF

Spectrum Test Reports:

4000K
