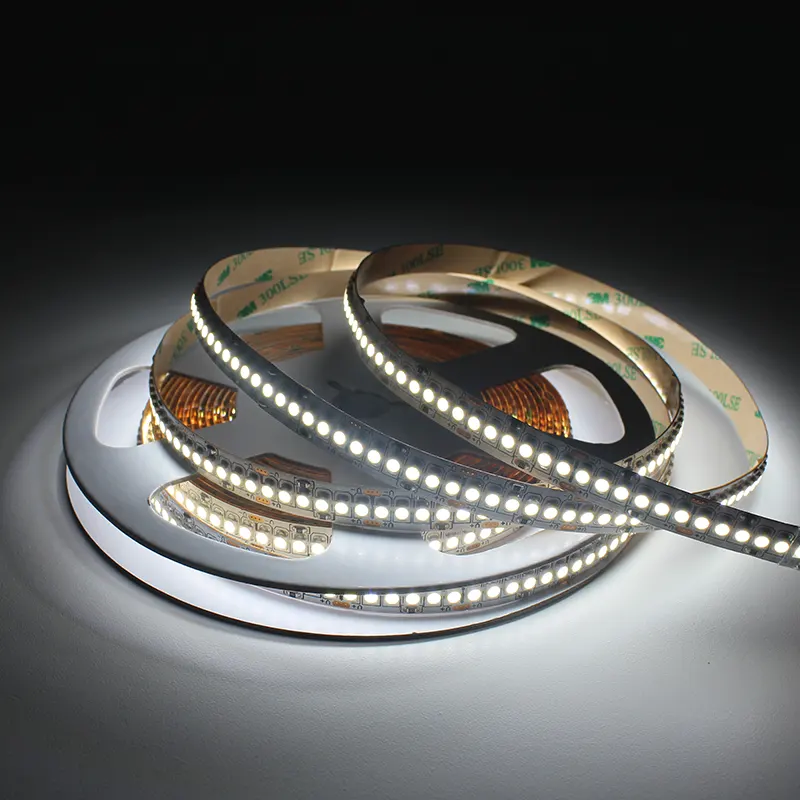

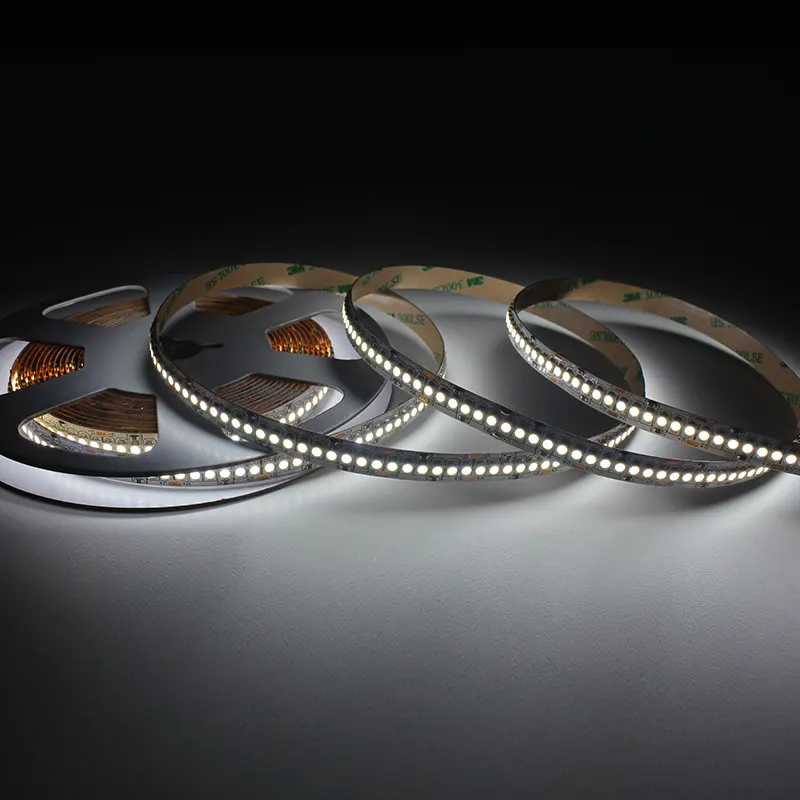

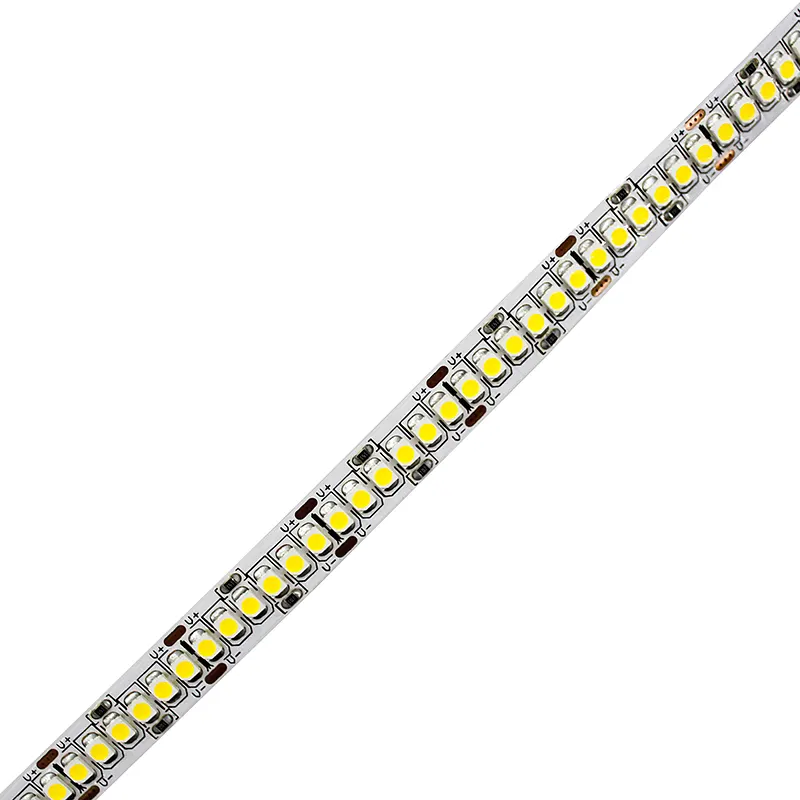

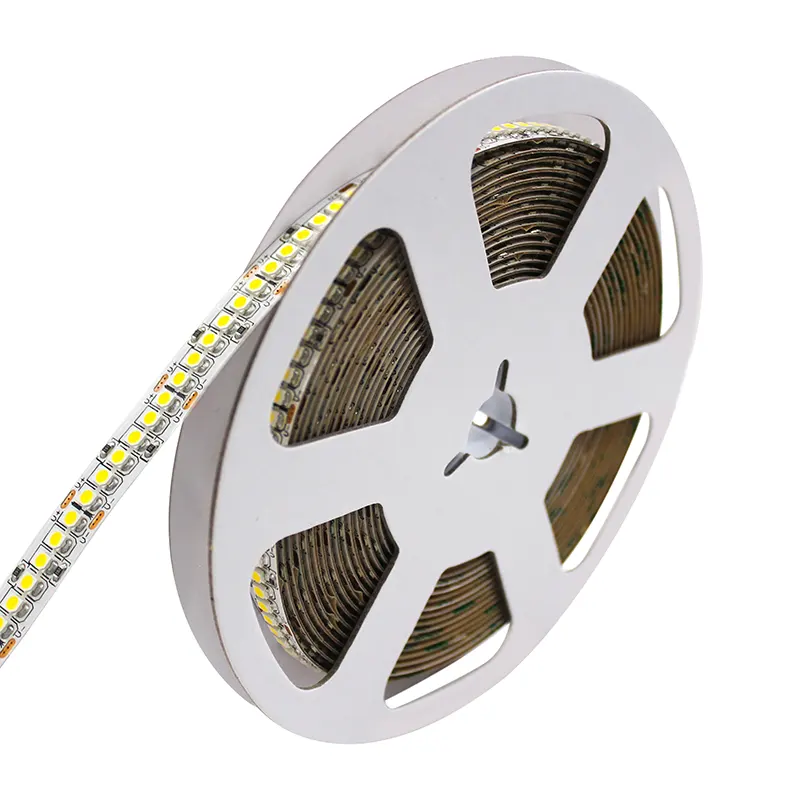

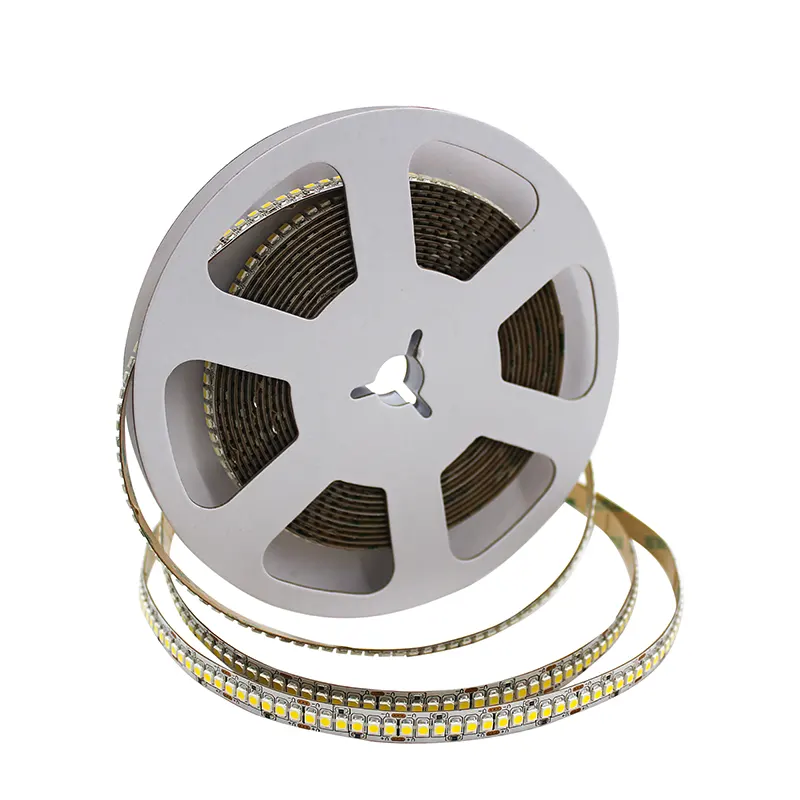

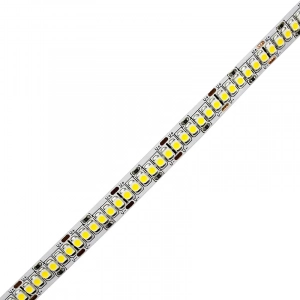

Flex Light Strip With SMD3528 240LEDs/M

If you’re looking for a way to light up a room, either large or small, Unitop flex light strip is a great product for you. It’s perfect for illuminating the inside of cabinets, closets, bookshelves, and more. With 240 LEDs per meter and a smart adhesive backing, this strip is simple to install and reposition as needed.

Model No.UTFS-CS5240-2410
LED Qty:240pcs/m

Flex Light Strip With SMD3528 240LEDs/M from Unitop

Intelligent design, high efficiency SMD3528 LEDs, uniform illumination

Easy to cut and reconnect with soldering or connectors

High CRI 90Ra for an accurate light color reproduction

50000 hours long life time for low maintenance

Unitop Flex Light Strips are with below CCT options:

LED Flexible Strip CCT options

Our Flex LED Light Strip comes with below IP rating options:

LED Flexible Strip IP Rating Options

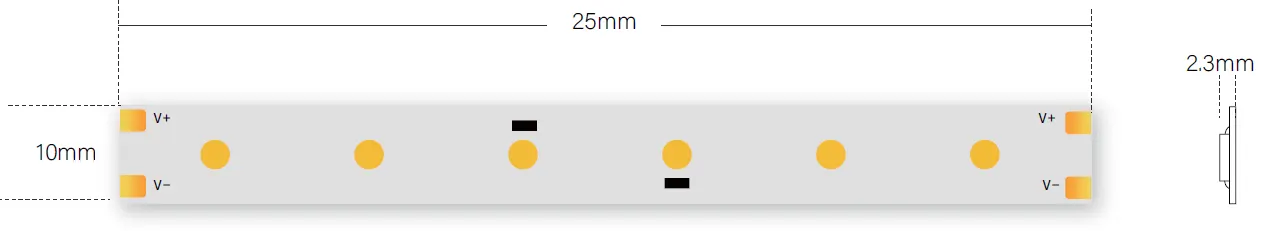

The cutting size of Unitop Flex LED tape:

Flex Light Strip cutting size

This Unitop Flex Lighting Strip is with below lumen:

  • CCT (°K)
  • 2700K
  • 3000K
  • 4000K
  • 6000K
  • Efficacy
  • 68lm/W
  • 68lm/W
  • 74.51lm/W
  • 74.51lm/W
  • Lumen/M
  • 1384.4lm/m
  • 1384.4lm/m
  • 1517lm/m
  • 1517lm/m

How to install our Flex Strip lighting? You can find the wire diagram as below:

LED Flexible Strip wiring

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our Flex Light Strip:

1. Restriction of live work
The LED strip light is small single LEDs welded on the flexible printed circuit board with a special manufacturing process. After the strips are installed, it will be energized and lighted on, as well as it is generally utilized for ornamental lighting. The normal input voltages are 12V and 24V low-voltage. In order to avoid damages to the light strips because of carelessness in the installing process and also operation procedure, it is purely forbidden to run the light strips when installing light strips at the same time.

2. Do not install the LED strips in excessive hot environment
The LED strip is a very fragile light source and should be handled with care. It is important to note that the LED strip should never be installed in an environment where excessive heat may occur. This is because of the high likelihood of the LEDs being damaged and thus preventing them from emitting light.

Flex Light Strip With SMD3528 240LEDs/M has a variety of applications.

The applications for this technology are constantly being discovered and improved. The uses of LED flexible strip lighting range from a simple accent light to a general highlighting effect in the room – whether the application is to show off an artwork, highlight an architectural detail, or just simply provide ambience.

Flexible LED strips are used to illuminate interior spaces. They are available in a variety of colors and can be used on surfaces that are curved or uneven.

Flexible LED strips can be used for many applications. They are typically installed under cabinets, around the perimeter of a room or in stairwells to provide an even and beautiful light source.

These LED flexible strips also come with remote control and Wi-Fi connectivity for added convenience and light control options to suit any need and occasion.

Listed below you will find some examples of the applications:

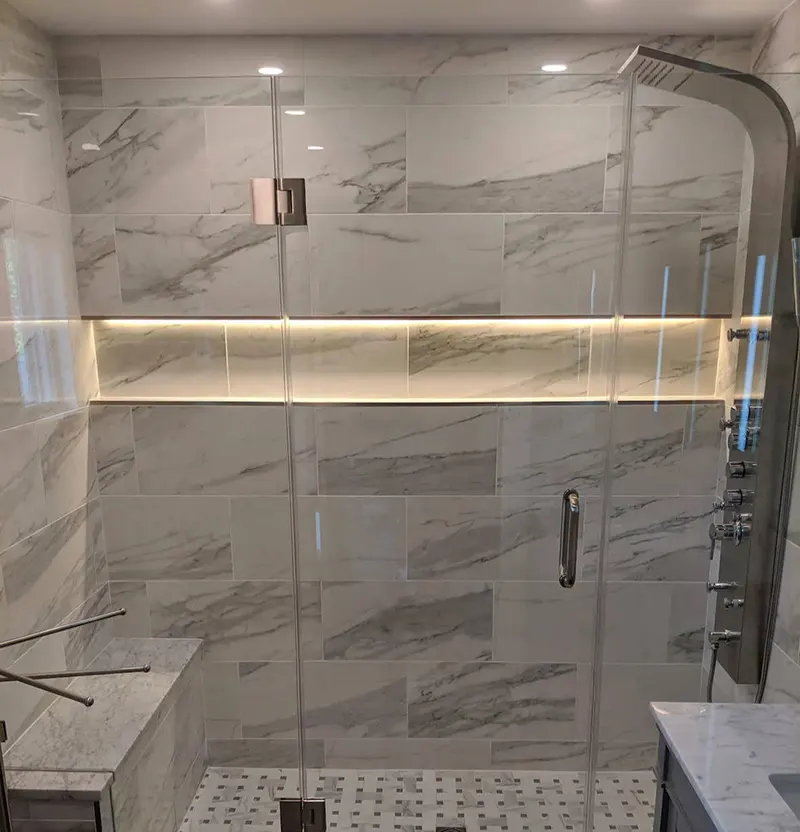

LED strip light used in bathroom (14)

Bathroom Lighting

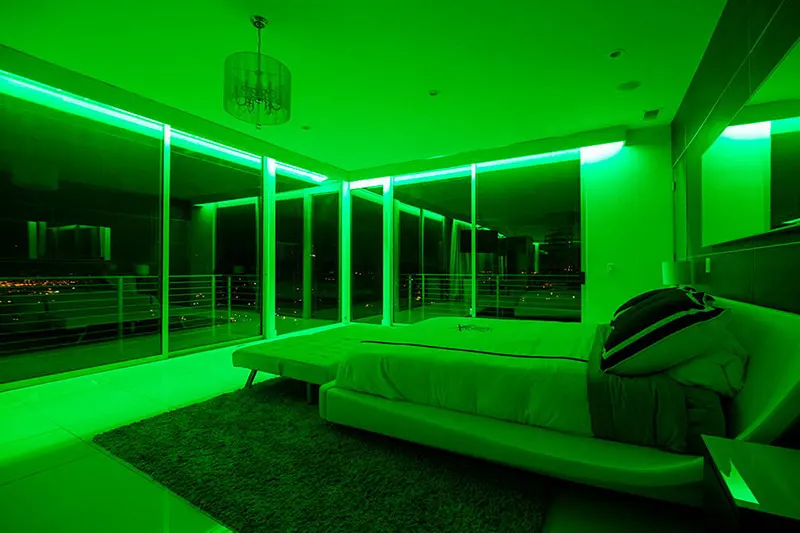

LED flex tape used in bedroom (14)

Bedroom Lighting

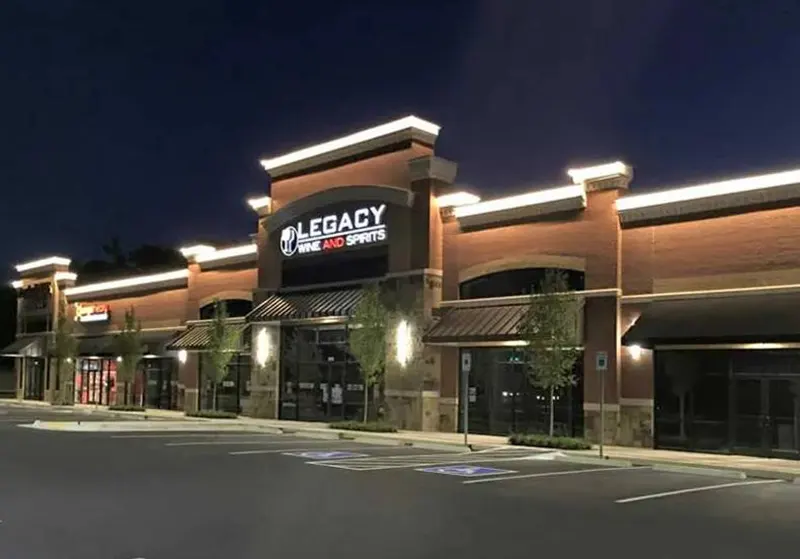

Flex LED ribbon used in commercial and architectural (14)

Commercial Lighting

flexible LED strip lighting used in restaurant (14)

Restaurant Lighting

FAQ of Unitop Flex Light Strip With SMD3528 240LEDs/M:

Can LED strip lights be cut and/or jointed together?

Strip lights come with convenient little cutting marks that allow you to cut them to length, so if you have a 5M size of strip yet only require 4M, you can cut it to your needs. The rest strip will not go to waste either and also can be used in other places in your home. You can also link different sizes of strip tape really quickly. The very best method for this is by utilizing strip light connectors that does not call for any kind of soldering.

Why are my LED strip lights flickering?

Due to the fact that of the power supply you’re making use of, your LED strip lights may be flickering. LEDs call for a DC power supply. To navigate this you require a good-quality LED driver, and the complete electrical power of the driver requires to cover the overall electrical power of the strip tape it is powering, plus 20%. One more factor might be the length of the strip lights. We always suggest that you maintain each size of strip lights you are making use of as 5M or much less. This makes sure that adequate power is available via the whole length of the strip, stopping flickering or dimming of the lights.


Flex Light Strip With SMD3528 240LEDs/M

IES/LDT Files:

6000K: IES | LDT | PDF

Spectrum Test Reports:
