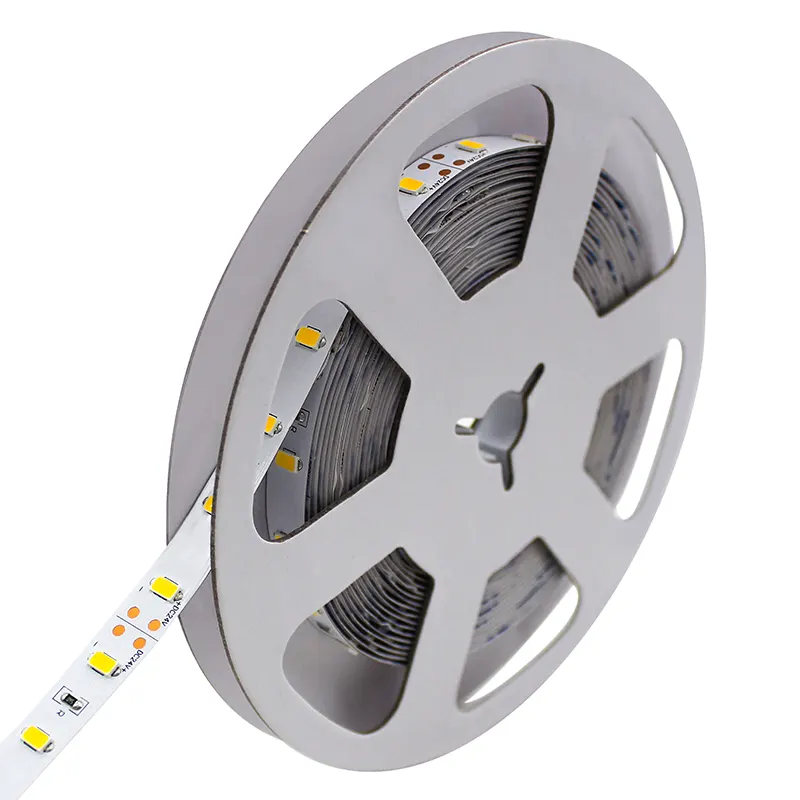

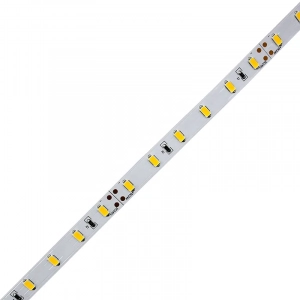

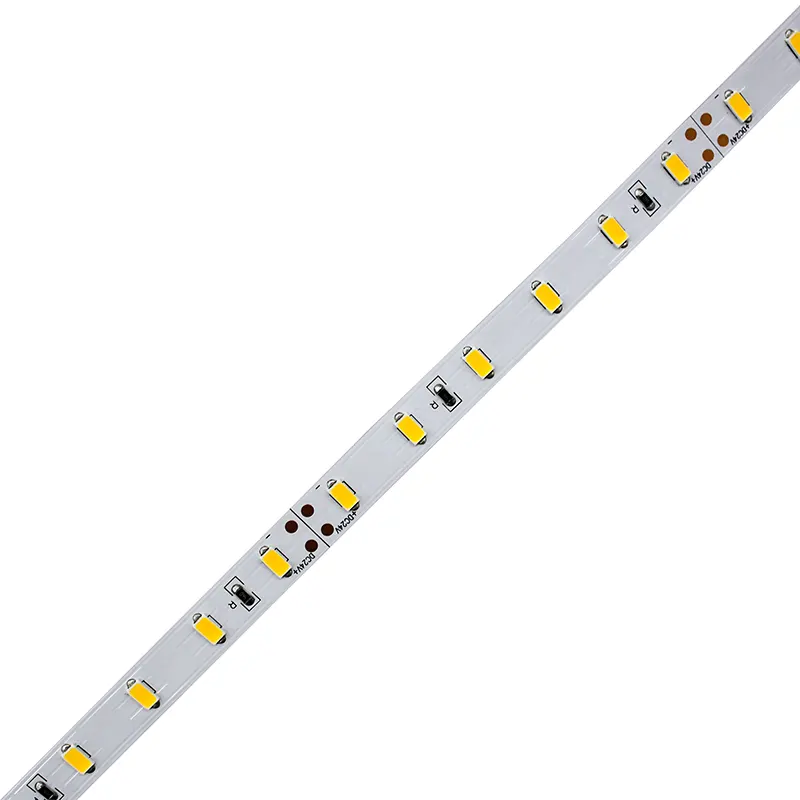

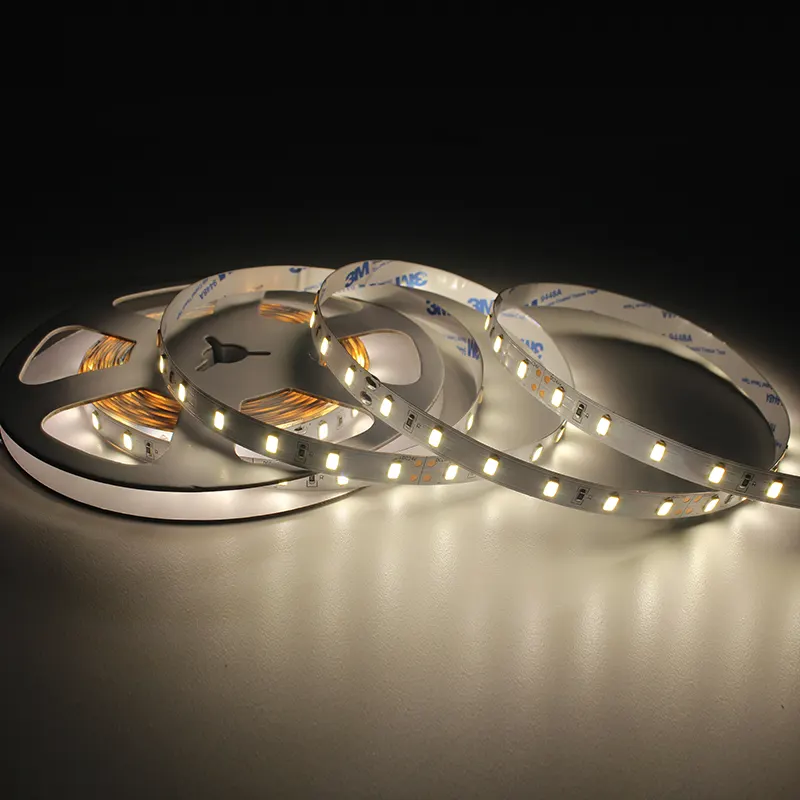

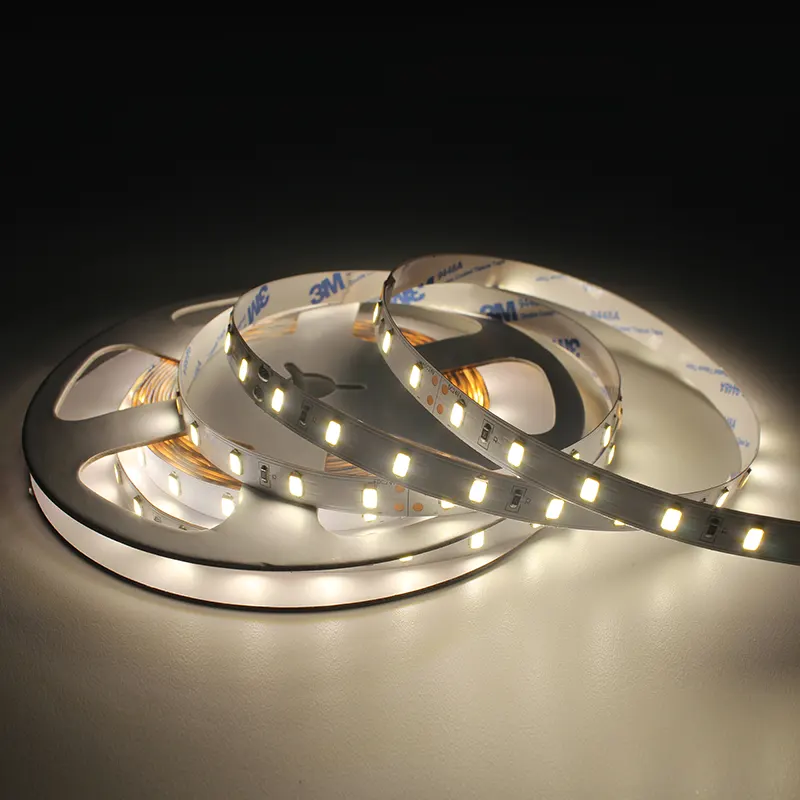

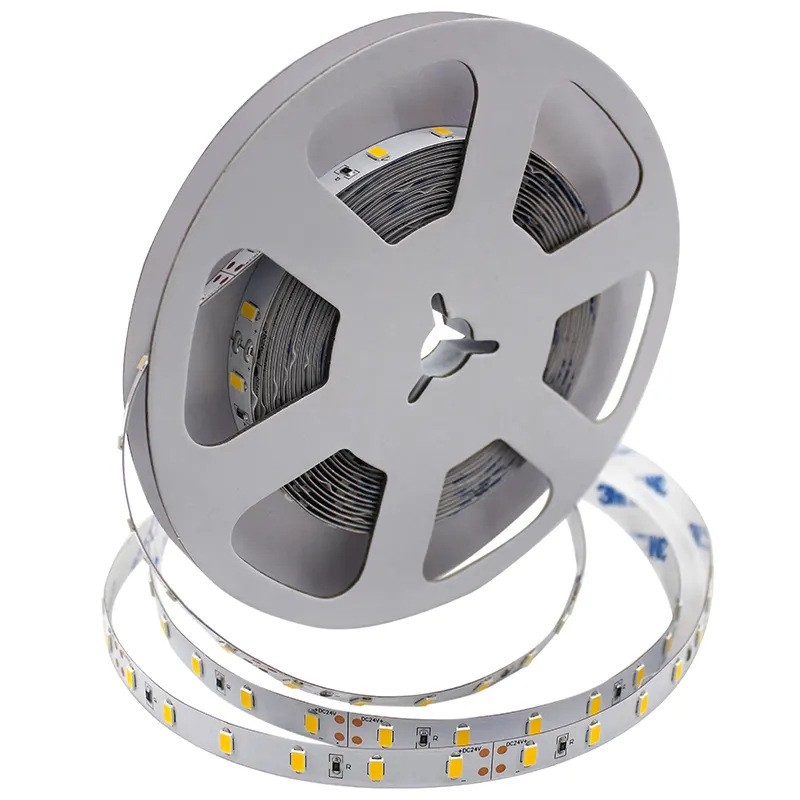

Flexi LED Tape With SMD5730 60LEDs/M

Break the traditional light bulbs with this super bright flexi LED tape with SMD5730 LEDs! It is cuttable, reconnectable, and easy installation, this is perfect for any indoor use. Go try immediately!

Model No.UTFS-CS7060-2410
LED Qty:60pcs/m
Voltage:DC24V
Wattage:14.4W/M
CCT:2700K~6000K
CRI:>90Ra

Flexi LED Tape With SMD5730 60LEDs/M from Unitop

Energy efficient and eco-friendly SMD 5730 LEDs, emits pure lighting with the least power consumption.

Uniform illumination for optimal viewing experience, cutting and reconnecting is easy as can be.

High CRI 90Ra means it’s the best material to use when you need to project accurate colors on a screen.

With an ultra long lifetime of 50000 hours, this flexi LED tape will serve you for a good five years or more.

Unitop Flexi LED Tapes are with below CCT options:

LED Flexible Strip CCT options

Our Flexi LED Tape lighting comes with below IP rating options:

LED Flexible Strip IP Rating Options

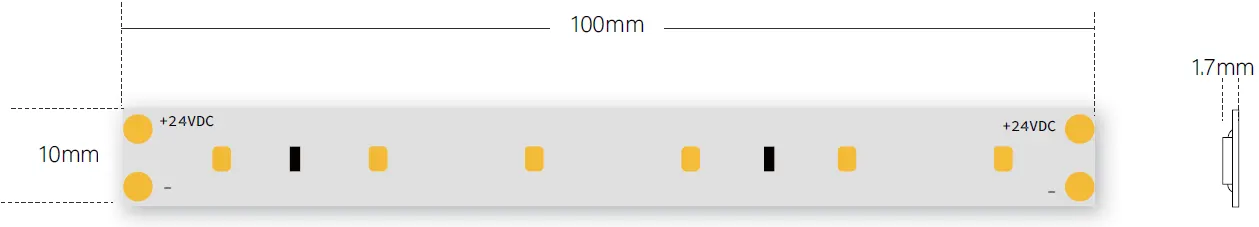

The cutting size of Unitop Flexible LED Tape:

Flexi LED Tape cutting size

This Unitop Flexi LED Tape strip is with below lumen:

  • CCT (°K)
  • 2700K
  • 3000K
  • 4000K
  • 6000K
  • Efficacy
  • 87.5lm/W
  • 87.5lm/W
  • 94.9lm/W
  • 94.9lm/W
  • Lumen/M
  • 1260lm/m
  • 1260lm/m
  • 1366.56lm/m
  • 1366.56lm/m

How to install our Flexi LED ribbon? You can find the wire diagram as below:

LED Flexible Strip wiring

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our Flexi LED Tape:

1. Inspect the LED strips prior to power on: The whole roll of light strips need to not be invigorated to brighten without taking apart the coil, product packaging, or piled up in a ball, so regarding avoid major heat generation and also cause LED failure.

2. LED strip lights cutting: When the light strip is set up, according to the length of the site installment, if there is a cutting situation, the light strip ought to be cut from the location marked with the scissors icon on the surface of the light strip. It is strictly forbidden to cut the light strip from other locations without cutting marks, which will create the strips to not light up. After the water resistant LED strip light is cut, it needs to be waterproofed at the cut point.

Flexi LED Tape With SMD5730 60LEDs/M has a variety of applications.

The use of LED flexible strip is pretty much limitless. The possibilities for this type of lighting are only limited by the imagination of the designer.

LED flexible strip is not just for decoration. It can also be installed in many other places.

For example, LED flex strips are commonly used to replace traditional neon signs. They are also used for decorative purposes, to create a more appealing atmosphere at home or in public spaces.

Listed below you will find some examples of the applications:

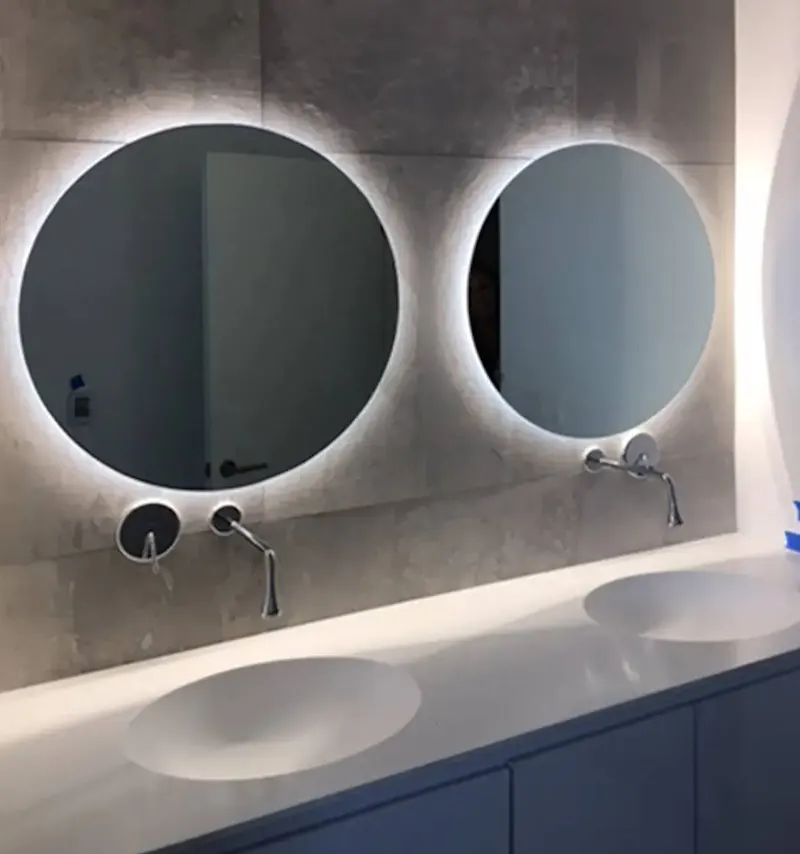

LED strip light used in bathroom (16)

Bathroom Lighting

LED flex tape used in bedroom (16)

Bedroom Lighting

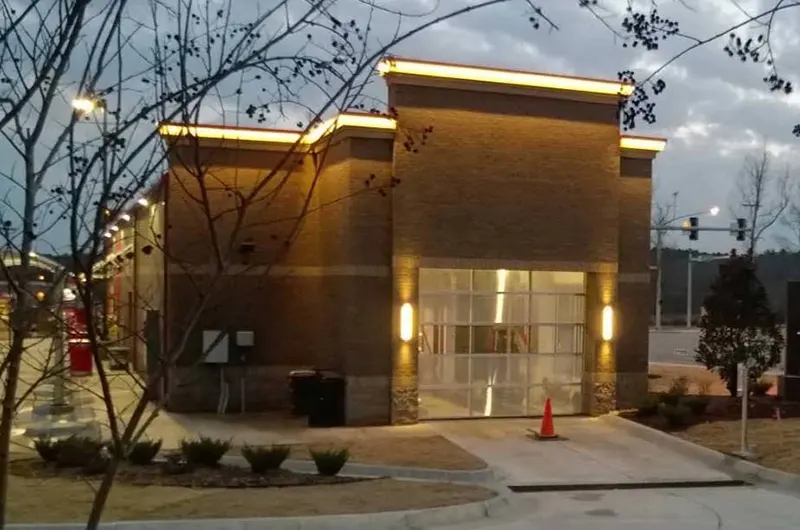

Flex LED ribbon used in commercial and architectural (16)

Commercial Lighting

flexible LED strip lighting used in restaurant (16)

Restaurant Lighting

FAQ of Flexi LED Tape With SMD5730 60LEDs/M:

How long do LED light strips last for?

LEDs have an extremely long expected life-span, compared to both fluorescent as well as incandescent lights. With an ordinary life-expectancy of some 50,000 hrs, LED strip lights will certainly still be lighting on in 17 years’ time, long after their standard equivalents will have run out.

Are LED strip lights dimmable?

They are undoubtedly, but you likewise require to ensure you have a dimmable driver (unless you’re utilizing plug and play strip packages certainly). This is since LED strip lights rely upon a constant current source which can just be supplied by a driver that changes an a/c power supply to DC.

Specification:

LED Tape Light With SMD5050 60LEDs/M

IES/LDT Files:

4000K: IES | LDT | PDF

Spectrum Test Reports:

4000K
