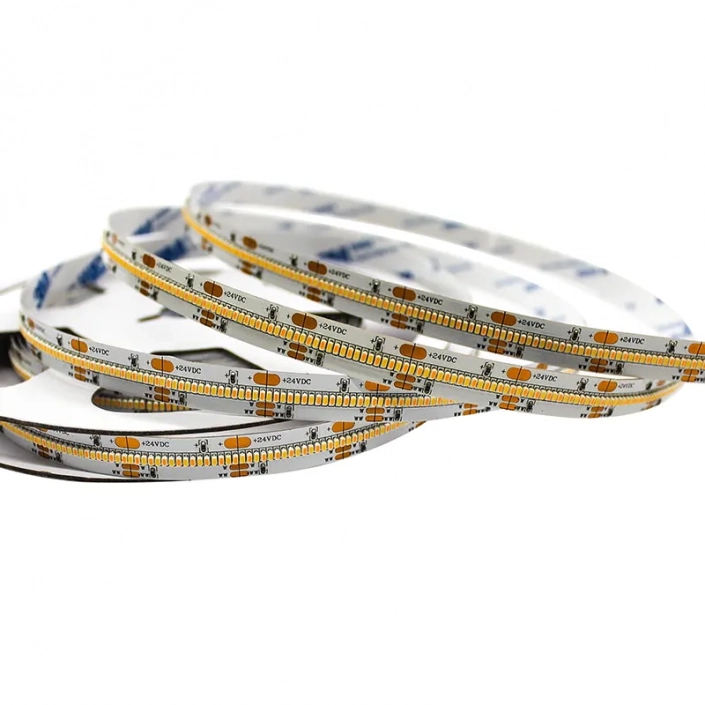

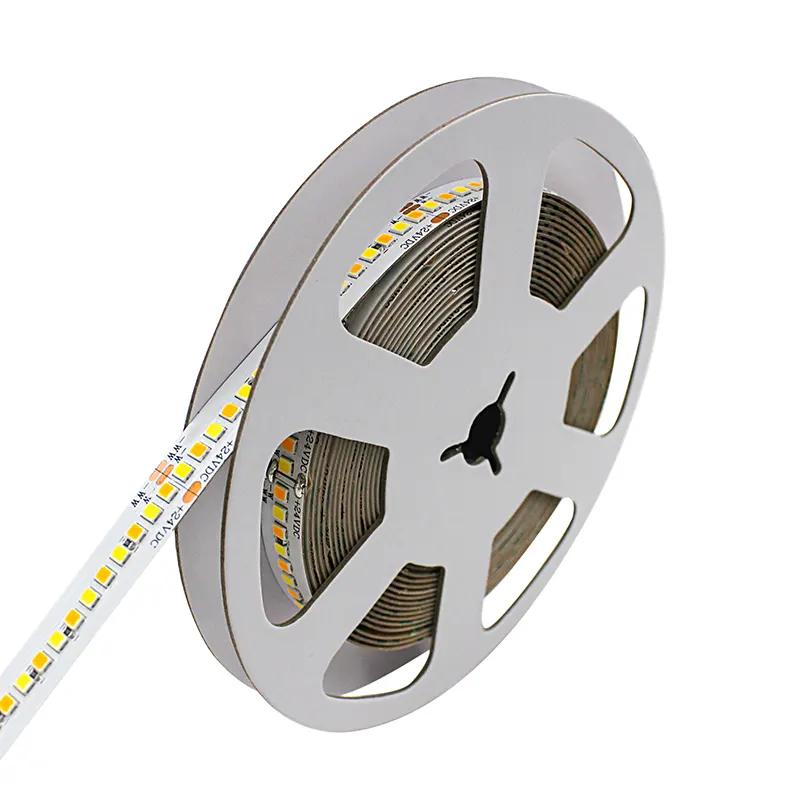

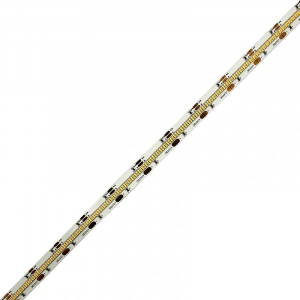

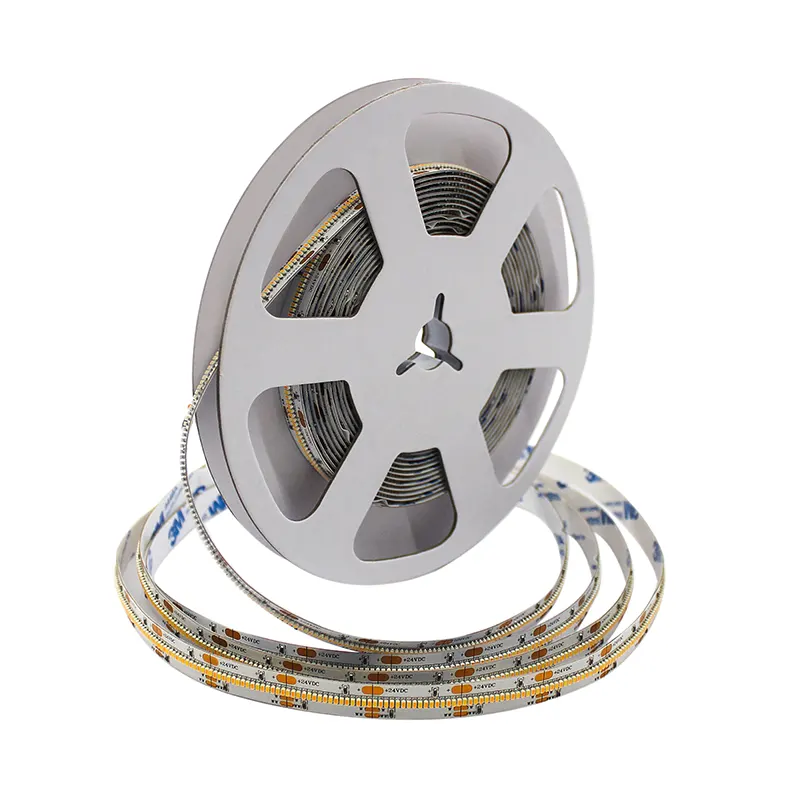

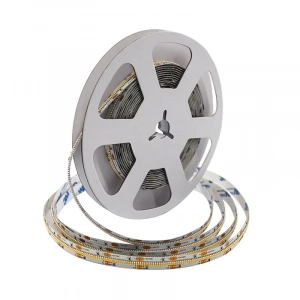

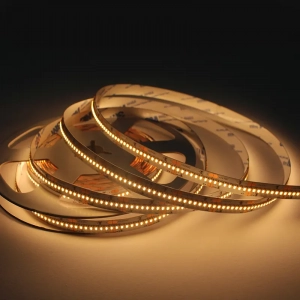

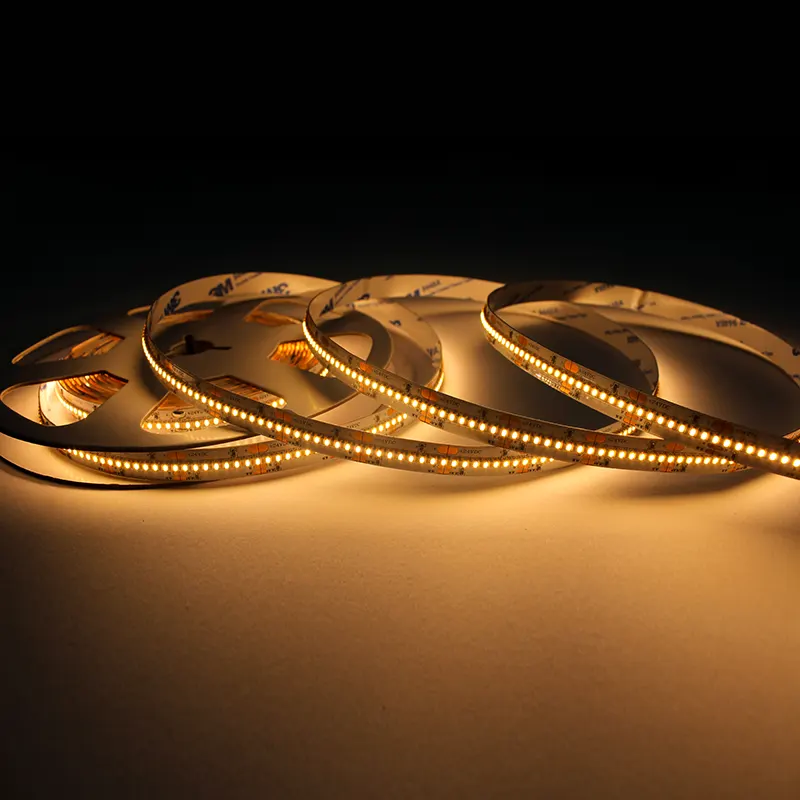

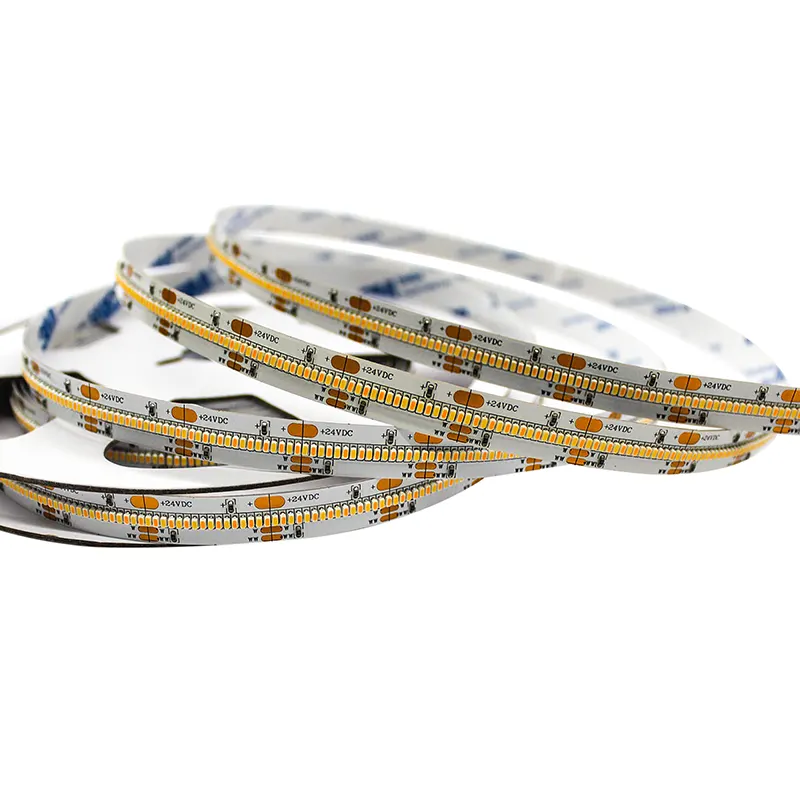

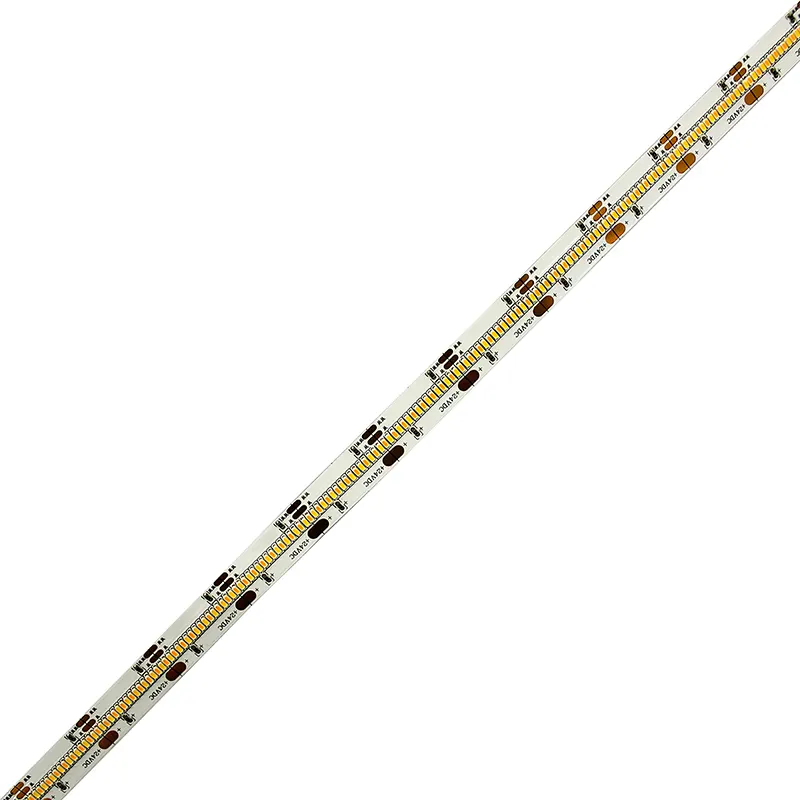

CCT Adjustable LED strip 2700K-6000K With SMD2110 704LEDs/M

Unitop’s CCT Adjustable LED strip is the perfect way to customize your lighting. Choose between three different colors – warm white, natural white, and daylight white – to create the perfect atmosphere for any occasion. With a simple touch of a button, you can adjust the color temperature of your light strip, making it easy to find the perfect setting for any room.
Model No.UTFS-CA3704-2410
LED Qty:704pcs/m
Voltage:DC24V
Wattage:18W/M
CCT:2700K~6000K
CRI:>90Ra

CCT Adjustable LED strip 2700K-6000K With SMD2110 704LEDs/M from Unitop

– 2700K-4000K-6000K color temperature adjustable for your choice.

– This LED strip is made of high quality SMD2110 LEDs, which guarantee the best brightness and lifespan.

– Low voltage and energy saving, safe to use.

– You can easily cut the LED strip to the length you need without damaging it.

– The adhesive back tape makes it easy to install on most surfaces.

Unitop CCT Adjustable LED strip are with below CCT options:

LED Flexible Strip CCT options

Our 90Ra CCT adjustable LED tape comes with below IP rating options:

LED Flexible Strip IP Rating Options

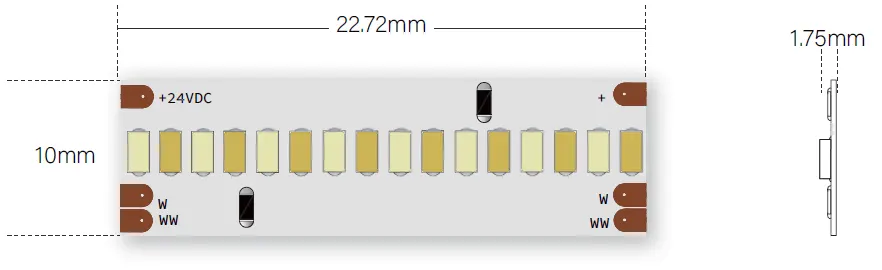

The cutting size of Unitop CCT Adjustable LED tape:

cutting size of CCT adjustable LED strip

This Unitop CCT Adjustable LED flex strip is with below lumen:

  • CCT (°K) & Power
  • 2700K 9W
  • 4000K 18W
  • 6000K 9W
  • Efficacy
  • 91lm/W
  • 96lm/W
  • 106lm/W
  • Lumen/M
  • 819lm/m
  • 1728lm/m
  • 954lm/m

How to install our CCT Adjustable LED lighting strip? You can find the wire diagram as below:

LED Flexible Strip wiring

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our CCT Adjustable LED tape strips:

1. Before installation, please cut off the power.

2. The LED strip should not be bent more than 60 degrees at a time, or it will cause damage to the LEDs and shorten the life of the strip.

3. If you need to cut the strip, be sure to follow the cutting marks on the strips.

4. Once installation is complete, test the strip by turning on the power and making sure all LEDs are working properly.

5. The LED strip should be powered by adapter with 24VDC output, so please check the specifications on your power supply before installation. If you intend to use a battery pack or solar panel, please make sure it matches the voltage and current requirements of the strip.

CCT adjustable LED strips have a variety of applications. Here are some examples:

– in hospitals they can be used to highlight the features of the room when needed by health care professionals, for patients to see what’s happening when they’re in another room, or for triage purposes. They are also commonly used to allow children in hospital waiting areas to study quietly or play games with their friends without being too disruptive.

– around retail stores (particularly food shops) they can be used to highlight promotional items and new stock on the shelves. These strips are also good for highlighting products on display, such as food at a deli counter, or clothing at a boutique store.

– in offices they can be used as a backlight for LCD screens, as well as highlighting wall art and other features around the office.

Listed below you will find some examples of the applications:

LED FLEXIBLE STRIP USED AS UNDER-CABINET LIGHTING

Under Cabinet Lighting

LED FLEXIBLE STRIP USED AS TASK LIGHTING

Home Decoration Lighting

LED FLEXIBLE STRIP USED AS SIGNAGE LIGHTING

Signage Lighting

FAQ of Unitop CCT adjustable LED strip:

Can you cut CCT adjustable LED flexible strips?

Yes. To cut, a sharp pair of scissors will cut LED strip lights with ease. You must only cut at the pre-defined cutting points shown on the strips, with copper end points so that you can easily use solder to connect around corners, or a power supply, for example.

Do I need profile to house the LED tapes?

It is up to you according to different installation methods.

What colors are available for CCT adjustable LED strips?

The strips are with two color LEDs on. By using controllers, it will specify which LEDs to light on or off. By this way to make the whole strips to be: 2700K or 4000K or 6500K.

Specification:

CCT Adjustable LED strip 2700K-6000K With SMD2110 704LEDs/M

IES/LDT Files:

2700K~6000K: IES | LDT | PDF

Spectrum Test Reports:

2700K~6000K
