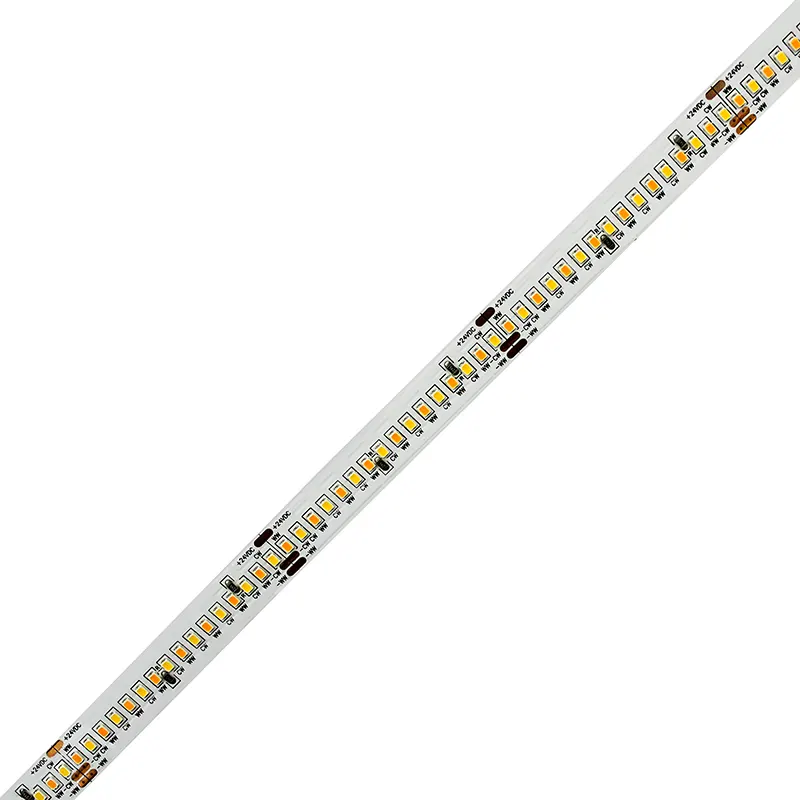

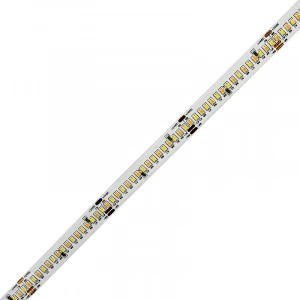

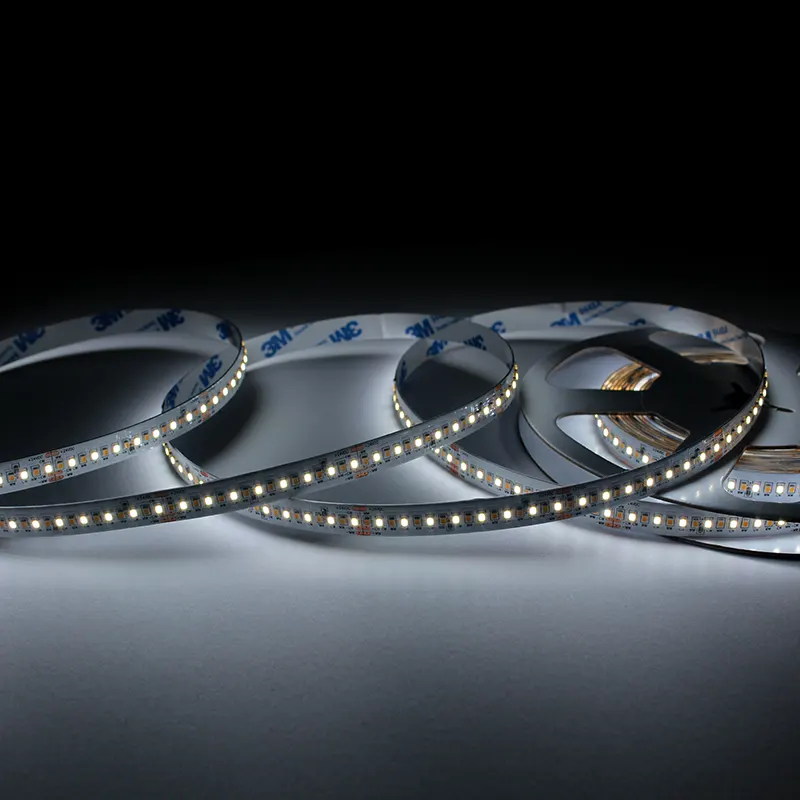

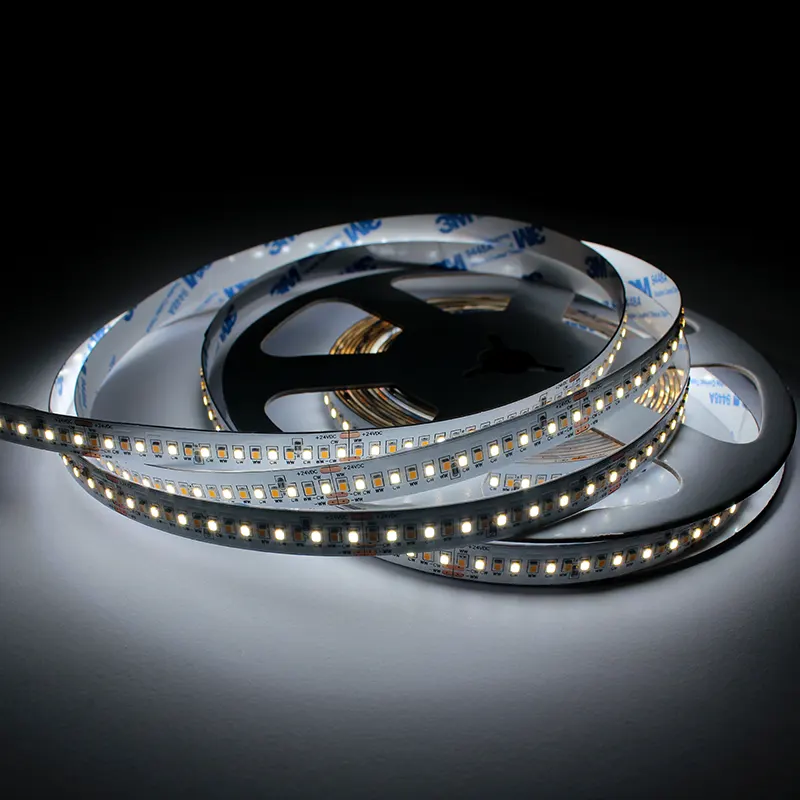

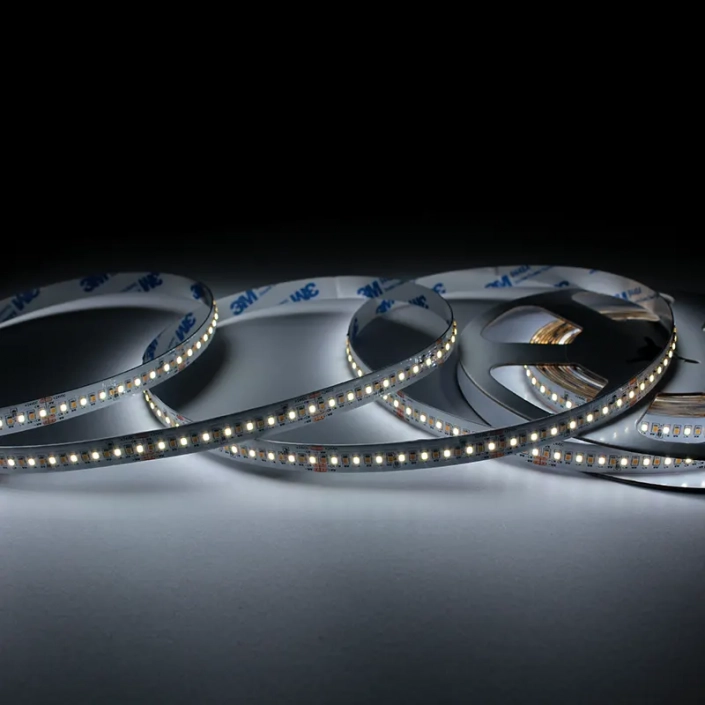

Adjustable White LED Strip With SMD2216 288LEDs/M

Unitop Adjustable White LED Strip is with SMD2216 288LEDs per meter. it can change color from warm white to natural white to daylight white by using controller. You can cut every 16 LEDs. LED Flexible Strips are perfect for lighting projects. Try immediately please!
Model No.UTFS-CA2288-2410
LED Qty:288pcs/m
Voltage:DC24V
Wattage:22W/M
CCT:2700K~6000K
CRI:>90Ra

Adjustable White LED Strip With SMD2216 288LEDs/M from Unitop

  • SMD2216 chips, energy saving, high brightness and reliability, long lifespan.
  • Pure and nice light, no flicker, no radiation.
  • Suitable for decorating cars, homes, boats, homes, offices, hotels and so on.
  • High Quality: CE, RoHS and UL approved.
  • Power: 22W, 24V DC.
  • Color: Warm White/Natural White/Daylight White adjustable.
  • Size: 5M/reel.

Unitop Adjustable White LED Strips are with below CCT options:

LED Flexible Strip CCT options

Our 90Ra CCT adjustable LED flexible strip comes with below IP rating options:

LED Flexible Strip IP Rating Options

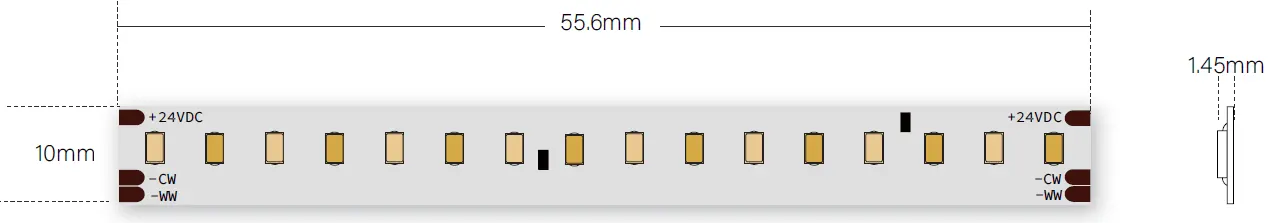

The cutting size of Unitop Adjustable White LED Strip:

cutting size of Adjustable White LED Strip

This Unitop Adjustable white LED flexible strip is with below lumen:

  • CCT (°K) & Power
  • 2700K 11W
  • 4000K 22W
  • 6000K 11W
  • Efficacy
  • 97lm/W
  • 97lm/W
  • 107lm/W
  • Lumen/M
  • 1067lm/m
  • 2134lm/m
  • 1177lm/m

How to install our Adjustable White LED Strip lightings? You can find the wire diagram as below:

LED Flexible Strip wiring

Want to know the packing information? See below:

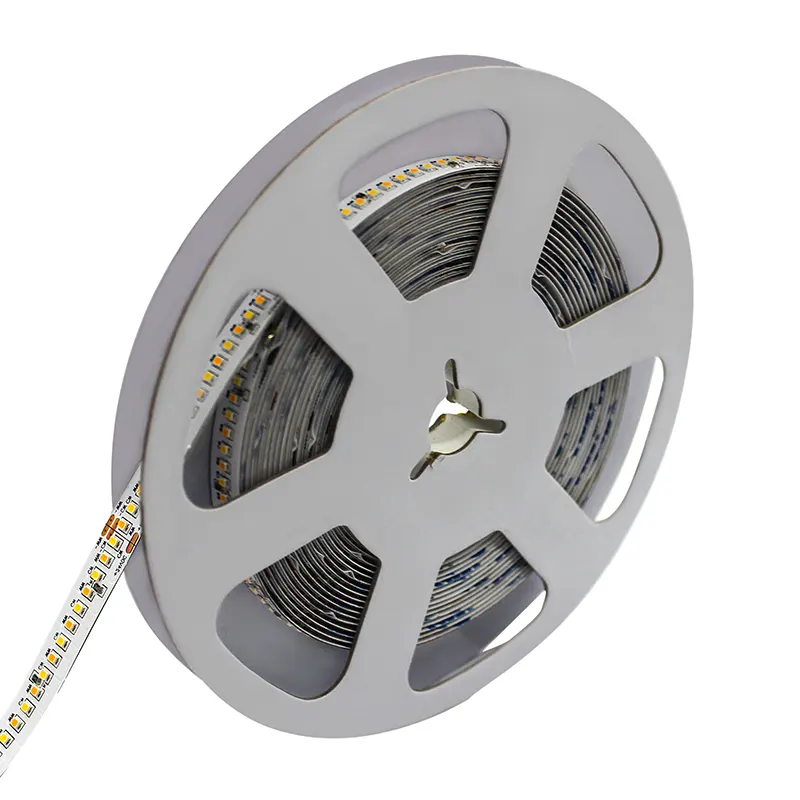

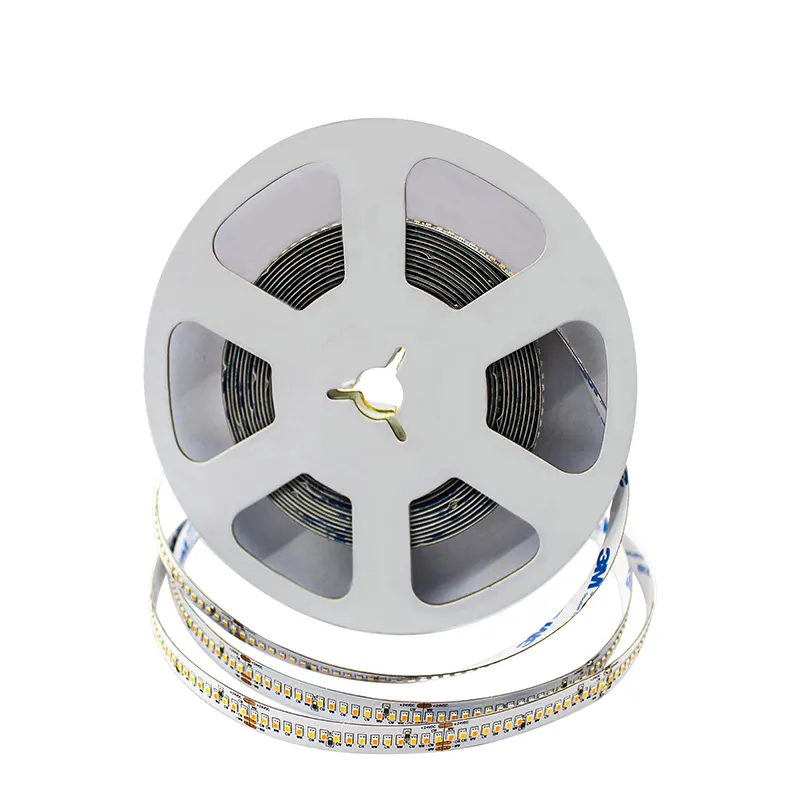

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our Adjustable White flex LED Strip:

1. Before installment, please cut off the power.

2. The LED strip needs to not be bent greater than 60 degrees each time, or it will create damage to the LEDs as well as shorten the life of the strip.

3. If you require to shorten the strip, be sure to follow the cutting marks on the strips.

4. Once installation is done, test the strip by turning on the power as well as seeing to all LEDs are working effectively.

5. The LED strip should be powered by adapter with 24VDC output, so please examine the specs on your power supply before setup. If you mean to use a battery pack or solar panel, please make certain it matches the voltage and also current requirements of the strip.

Adjustable White LED Strip have a variety of applications. Here are some examples:

– in hospitals they can be utilized to highlight the functions of the space when needed by health care experts, for individuals to see what’s happening when they’re in one more area, or for triage purposes. They are additionally commonly made use of to enable kids in health center waiting locations to study silently or play games with their buddies without being also turbulent.

– around retail stores (particularly food shops) they can be utilized to highlight advertising things as well as new stock on the shelves. These strips are additionally helpful for highlighting products on display screen, such as food at a delicatessens counter, or clothes at a boutique store.

– in offices they can be used as a backlight for LCD displays, in addition to highlighting wall art and also various other features around the workplace.

Listed below you will find some examples of the applications:

LED FLEXIBLE STRIP USED AS UNDER-CABINET LIGHTING

Under Cabinet Lighting

LED FLEXIBLE STRIP USED AS TASK LIGHTING

Home Decoration Lighting

LED FLEXIBLE STRIP USED AS SIGNAGE LIGHTING

Signage Lighting

FAQ of Unitop Adjustable White LED Strip:

Can you cut adjustable white LEDs?

It is possible to cut these strips if you use a sharp blade. The blade should be at least as wide as the gap between the LEDs on the strip in order to make clean cuts that do not leave any damage behind. The most important is that you should cut according to the cutting marks on the strips.

Do I need profile to house the LED ribbons?

It’s up to you according to different installation methods

What colors are available for adjustable LED flex strips?

The strips have two LEDs of different colors on. Using controllers, it will let you specify which LEDs to light on or off. This way, you’ll be able to create the color of your choice: 2700K, 4000K, or 6500K

Specification:

Adjustable White LED Strip With SMD2216 288LEDs/M

IES/LDT Files:

2700K~6000K: IES | LDT | PDF

Spectrum Test Reports:

2700K~6000K
