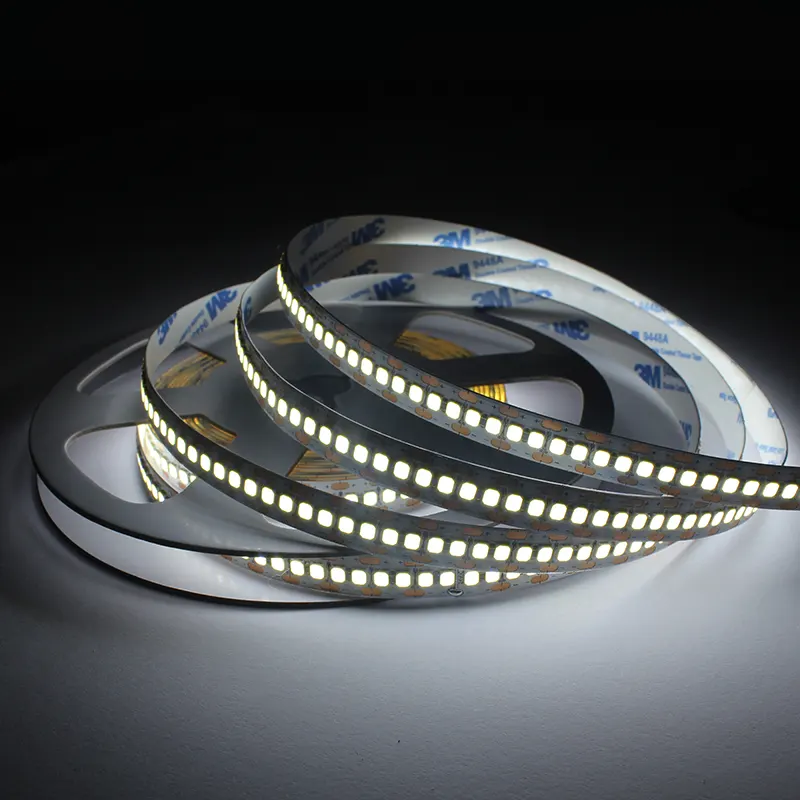

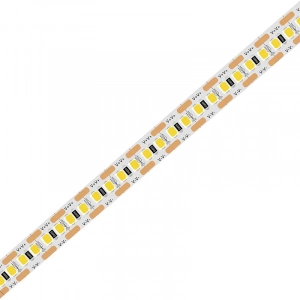

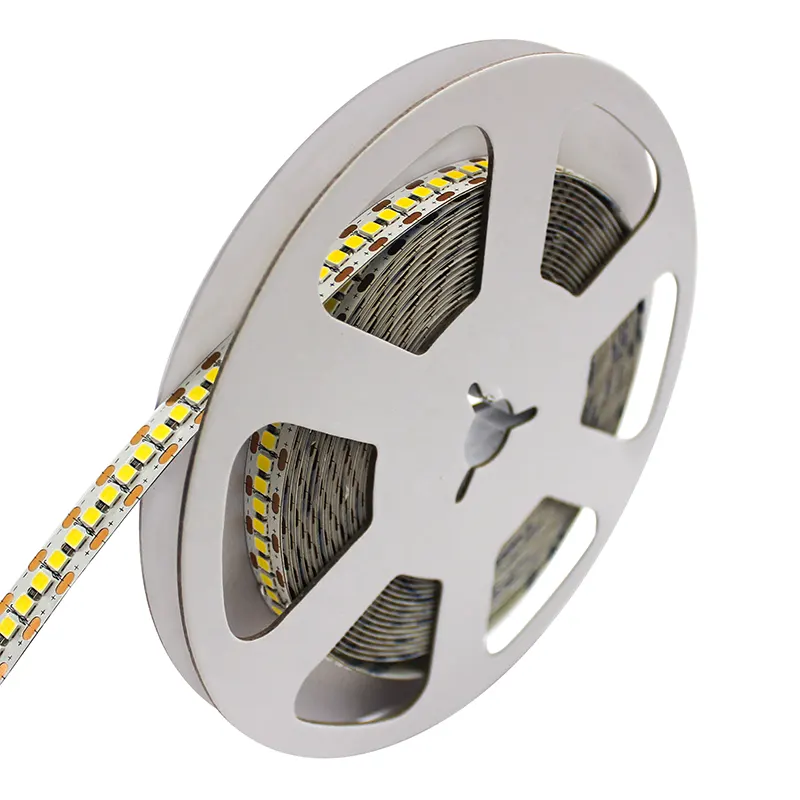

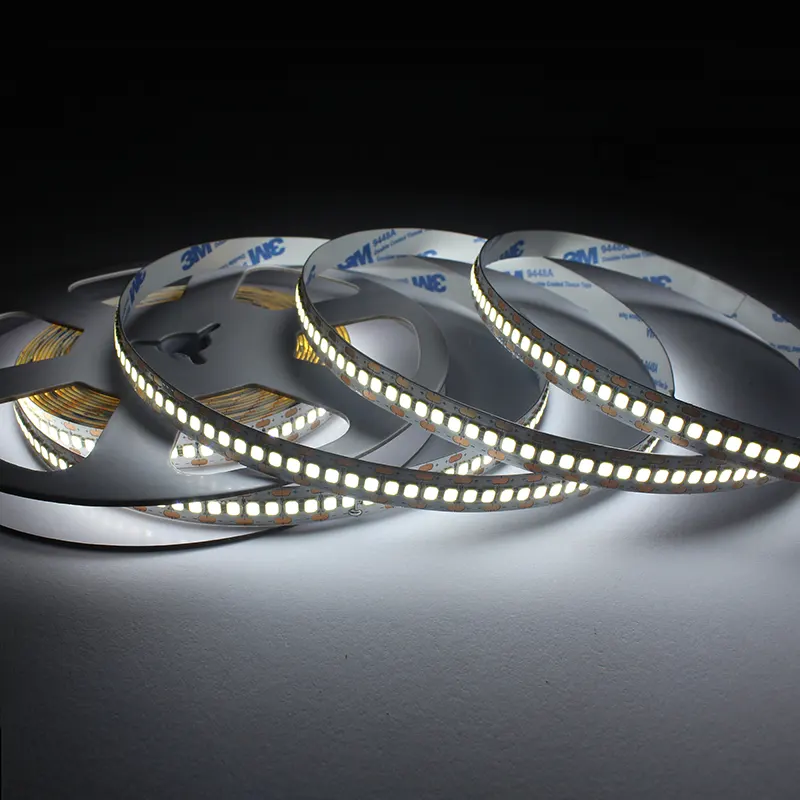

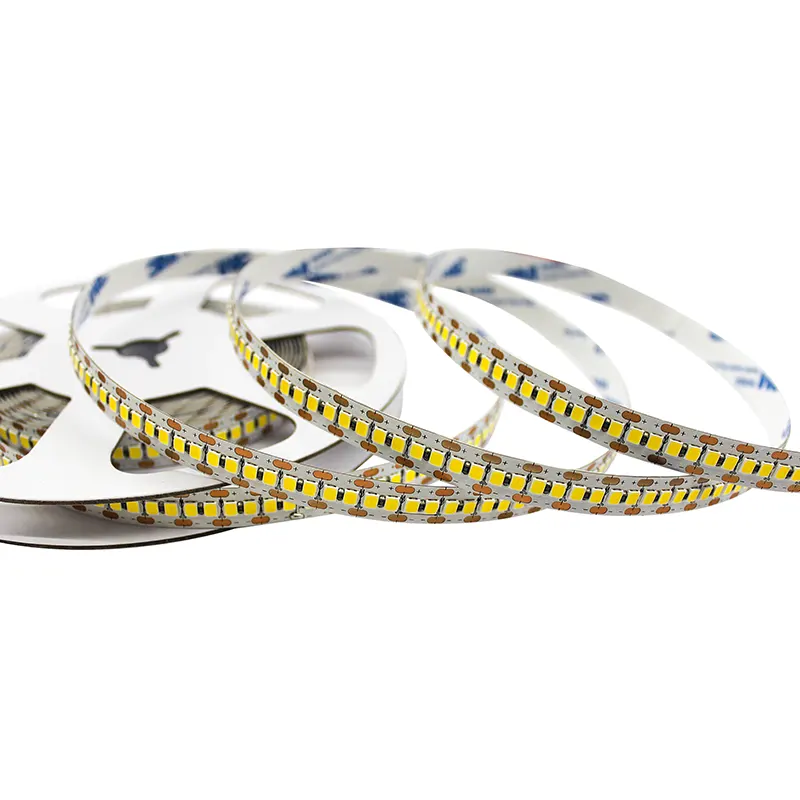

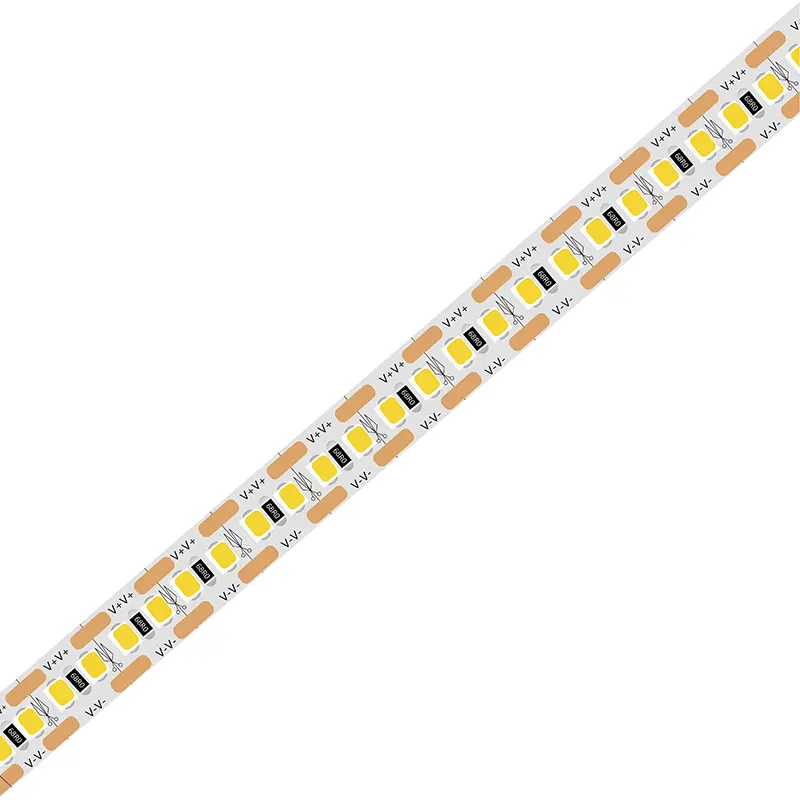

Mini Cutting Flexible LED Strip with SMD2835 200LEDs/M

This Mini Cutting Flexible LED Strip is the newest version, cutting every 1 cm, which means you can cut it to size and shape. With 2 LEDs per cut section, it is brighter than ever. It’s the perfect decorative lighting for your home, office, garden party, wedding or any other occasion you can think of!

Model No.UTFS-MN1200-1210
LED Qty:200pcs/m
Voltage:DC12V
Wattage:21W/M
CCT:2700K/3000K/4000K/6000K
CRI:>80Ra

Mini Cutting Flexible LED Strip with SMD2835 200LEDs/M from Unitop

High efficiency SMD2835 LEDs.

With PCB in 10mm width, this flexible strip is ideal for any application from signage to lighting to decoration.

Each section is only 1cm with 2LEDs, you can cut easily according to the printed cutting marks and use any length you want.

Unitop Mini Cutting Flexible LED Strip has below CCT options:

LED Flexible Strip CCT options

Our Mini Cutting Flexible LED Strip Light comes with below IP rating options:

LED Flexible Strip IP Rating Options

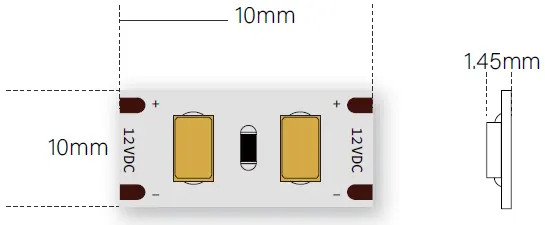

The cutting size of Unitop Mini Cutting LED flexible strip:

cutting size Mini Cutting Flexible LED Strip

This Unitop Mini Cutting Flexi LED Strip is with below lumen:

  • CCT (°K)
  • 2700K
  • 3000K
  • 4000K
  • 6000K
  • Efficacy
  • 165.86lm/W
  • 165.86lm/W
  • 178.58lm/W
  • 178.58lm/W
  • Lumen/M
  • 3483lm/m
  • 3483lm/m
  • 3750lm/m
  • 3750lm/m

How to install our Mini Cutting Flex LED Strip? You can find the wire diagram as below:

wiring of led strip flex

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our Mini Cutting Flexible LED Strip:

The mini-cuttable LED flexible strip should be installed on a flat and smooth surface.

To prevent the LED flexible strip from being damaged, please make sure that the LED flexible strip is connected to the CORRECT power supply properly and tightly.

Do not install the LED strips near a heat source, such as a heater, fire, or stove

This LED flexible strip is not warranted against any loss or damage caused by improper installation.

Mini Cutting Flexible LED Strip with SMD2835 200LEDs/M has a variety of applications.

Some LED flexible strip application areas are:

– LED flexible strip used in the interior of buildings to light up the walls or ceiling

– LED flexible strip used on cars to light up the interior on cars

– LED flexible strip used in public places to light up signs, maps, and other important objects

Listed below you will find some examples of the applications:

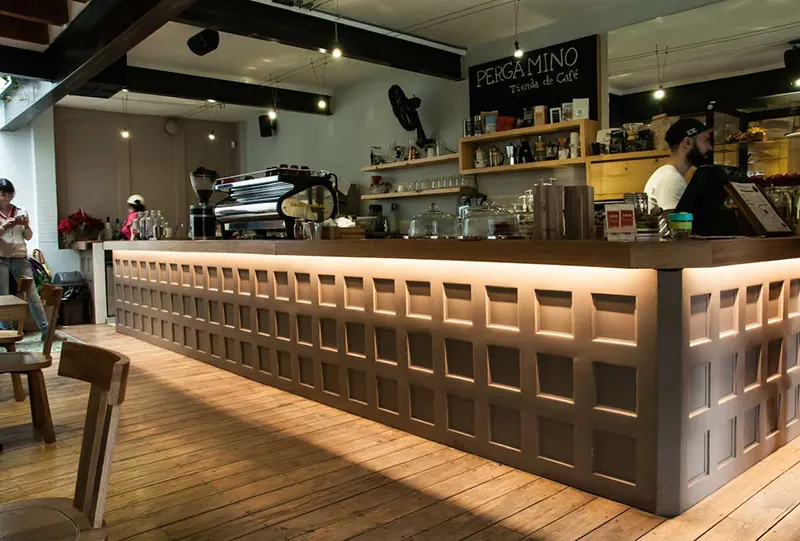

Flex LED ribbon used in commercial and architectural (31)

Restaurant Lighting

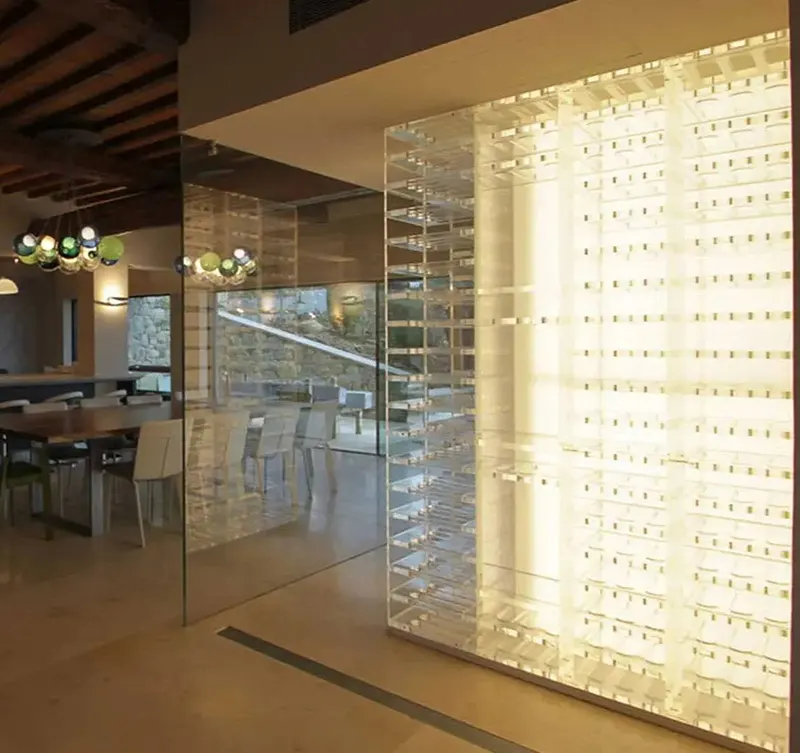

Flex LED ribbon used in commercial and architectural (34)

Commercial Lighting

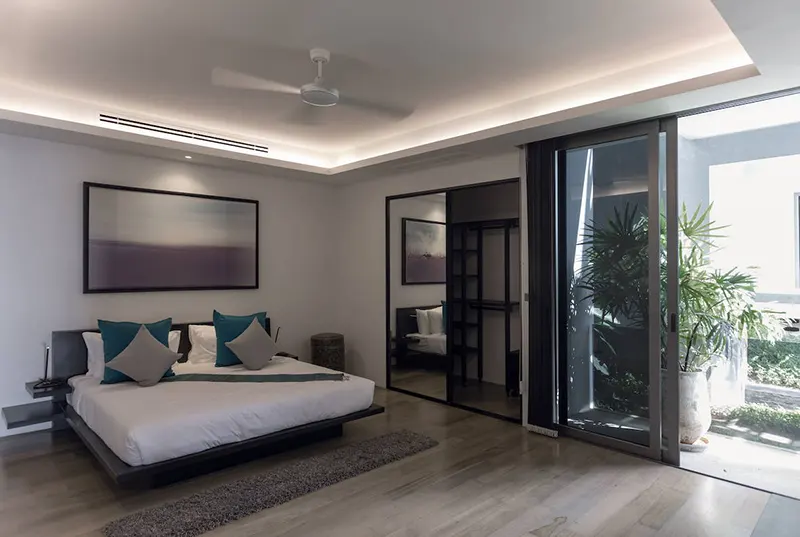

LED flex tape used in bedroom (16)

Bedroom Lighting

Flex LED ribbon used in commercial and architectural (12)

Architectural Lighting

FAQ of Unitop Mini Cutting Flexible LED Strip with SMD2835 200LEDs/M:

What is the smallest cutting size of this flexible LED strip?

2LEDs or 1cm per cut.

What is the efficacy of this mini cutting flexible LED strip?

165lm~180lm/W super bright.

What is the working voltage of this LED flexible strip?

12VDC.

Specification:

Mini Cutting Flexible LED Strip with SMD2835 200LEDs/M

IES/LDT Files:

4000K

Spectrum Test Reports:

4000K
