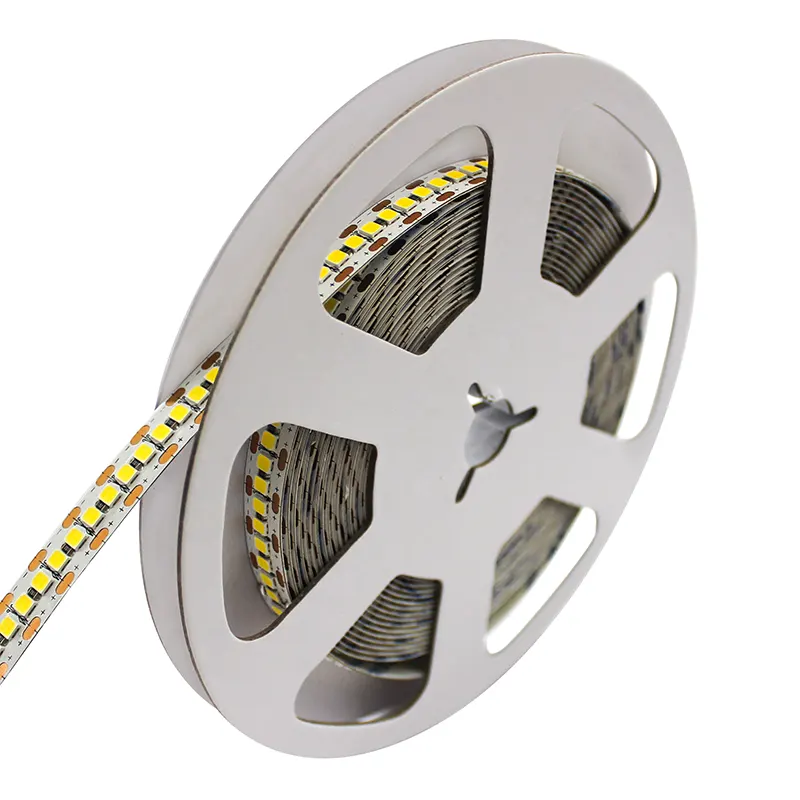

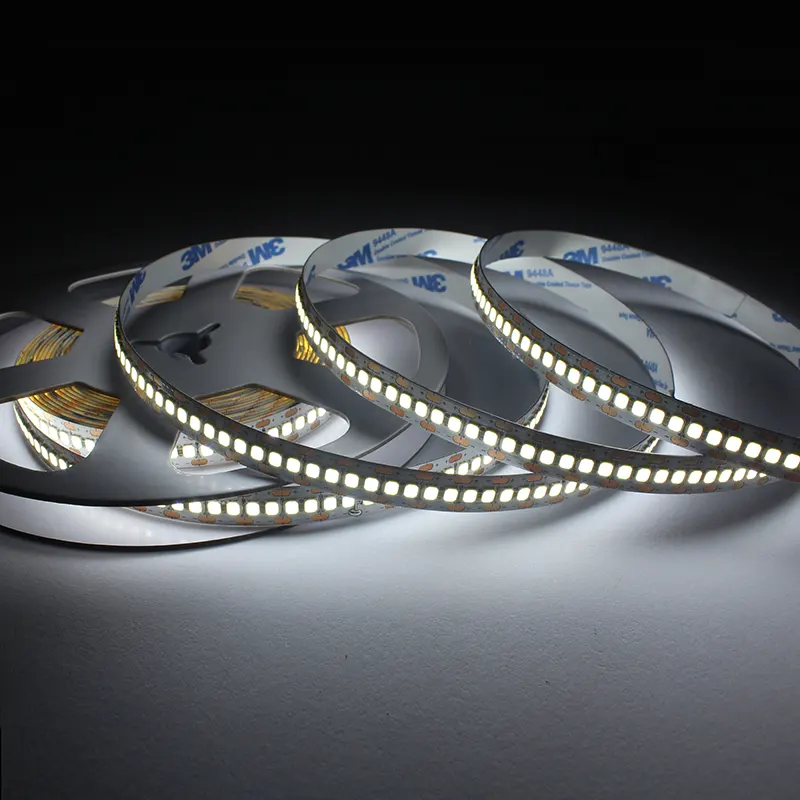

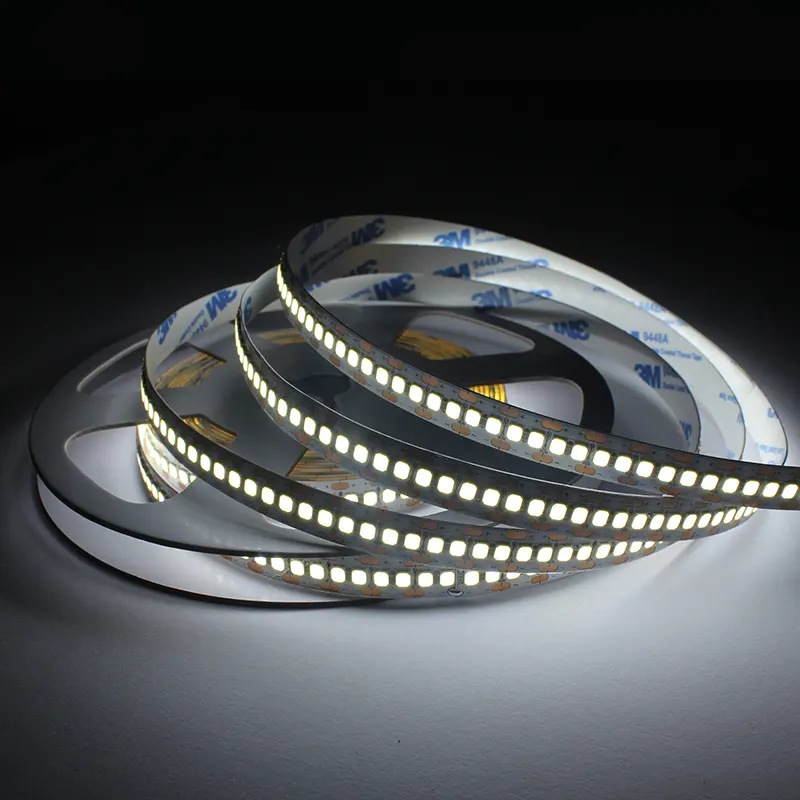

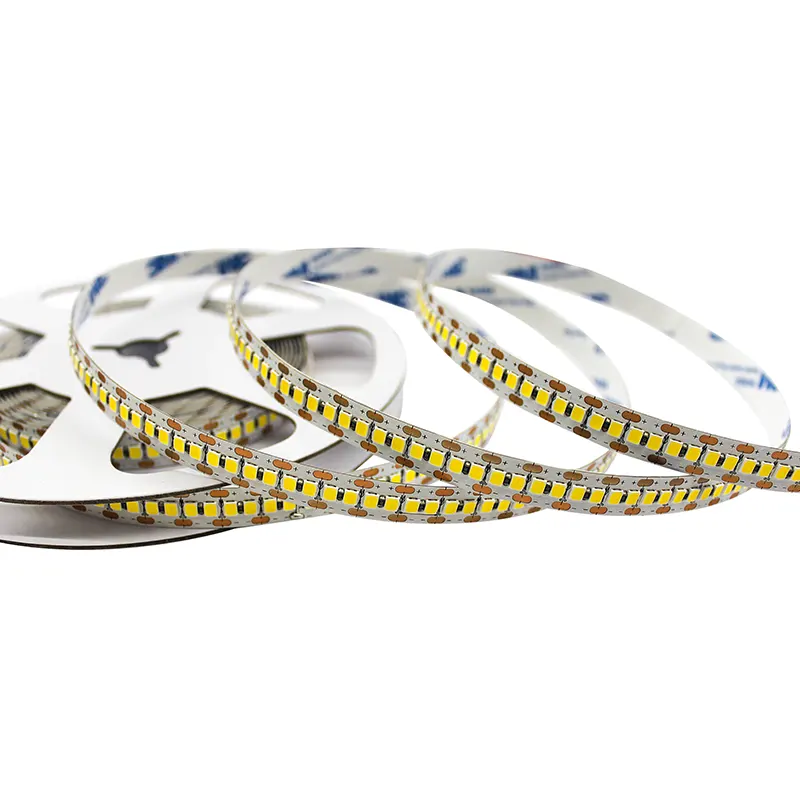

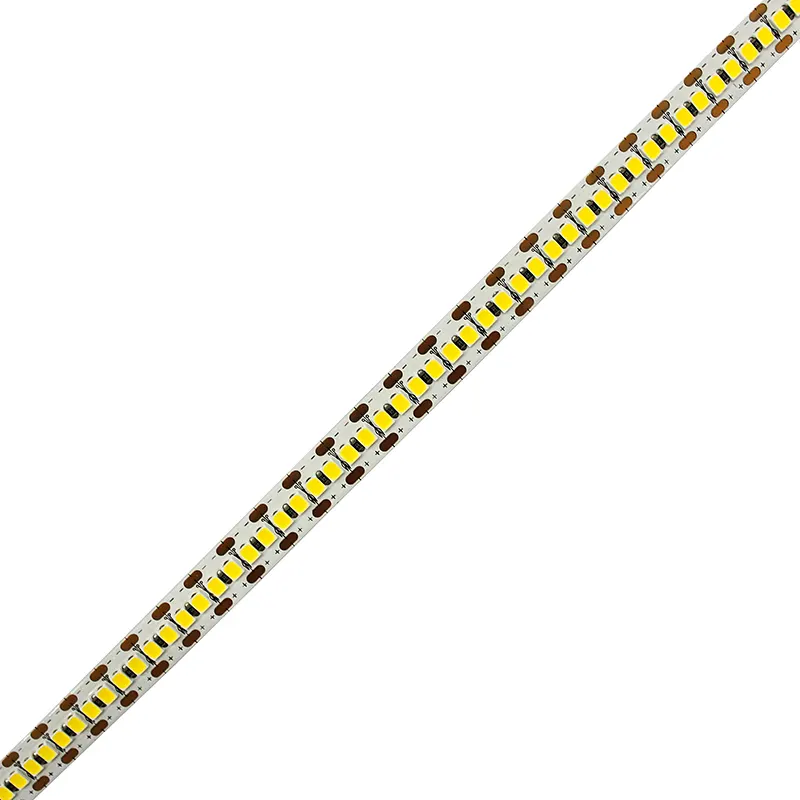

24V Mini Cuttable LED Flex with SMD2835 240LEDs/M

This 24V Mini Cuttable LED Flex is 10mm width, 2 LEDs per cut, 8.33mm per section. High efficiency SMD2835 LEDs can be cut at any cutting mark to length of your desire. It’s a perfect decoration for the party or just a simple decor in your home. You will love its beauty!

Model No.UTFS-MN1240-2410
LED Qty:240pcs/m
Voltage:DC24V
Wattage:14.4W/M
CCT:2700K/3000K/4000K/6000K
CRI:>80Ra

24V Mini Cuttable LED Flex with SMD2835 240LEDs/M from Unitop

With 240LEDs, this mini cuttable LED flexible strip is our brightest mini cutting version.

You can cut the flex ribbon every 2LEDs/8.33mm.

The SMD2835 LEDs have high efficiency, meaning a long lifetime and low power consumption.

Perfect for DIY projects, as well as commercial projects

Unitop 24V Mini Cuttable LED Flex has below CCT options:

LED Flexible Strip CCT options

Our 24V Mini Cuttable LED Flex comes with below IP rating options:

LED Flexible Strip IP Rating Options

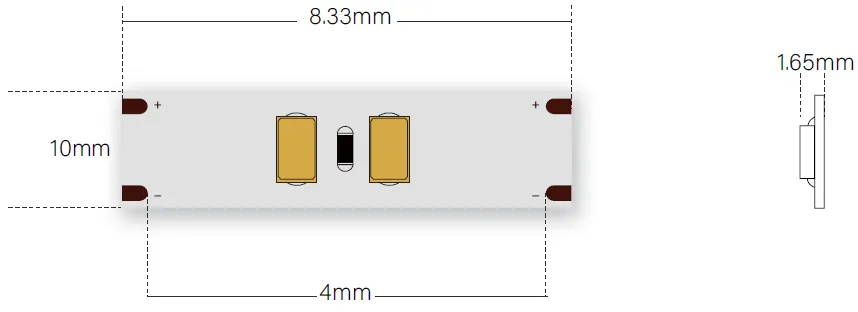

The cutting size of Unitop 24V Mini-Cuttable LED strip:

cutting size 24V Mini Cuttable LED Flex

This Unitop 24V Mini Cuttable LED Flexi Strip is with below lumen:

  • CCT (°K)
  • 2700K
  • 3000K
  • 4000K
  • 6000K
  • Efficacy
  • 100.36lm/W
  • 100.36lm/W
  • 102.71lm/W
  • 102.71lm/W
  • Lumen/M
  • 1445lm/m
  • 1445lm/m
  • 1511lm/m
  • 1511lm/m

How to install our 24V Mini-Cuttable LED ribbon strip? You can find the wire diagram as below:

LED Flexible Strip wiring

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our 24V Mini Cuttable LED Flex:

It is advisable to place mini-cuttable LED strip in a well-ventilated location.

The flexible strip should be protected from direct sunlight, heat, and moisture.

The LED Flex strip should be protected from excessive physical or electrical strain.

Never install the LED lighting strip near hazardous materials or substances that may leak onto the strip.

24V Mini Cuttable LED Flex with SMD2835 240LEDs/M has a variety of applications.

LED flexible strip is used in the application of billboard and advertising, interior lightings, illumination of roads, buildings, paths and outdoor lighting.

The light-emitting diodes are integrated into the flexi strip to emit light in any direction. The LED flexible strip can be easily bent into all sorts of shapes. In addition, the LED flexible strip can be cut into a desired length and then reassembled.

Listed below you will find some examples of the applications:

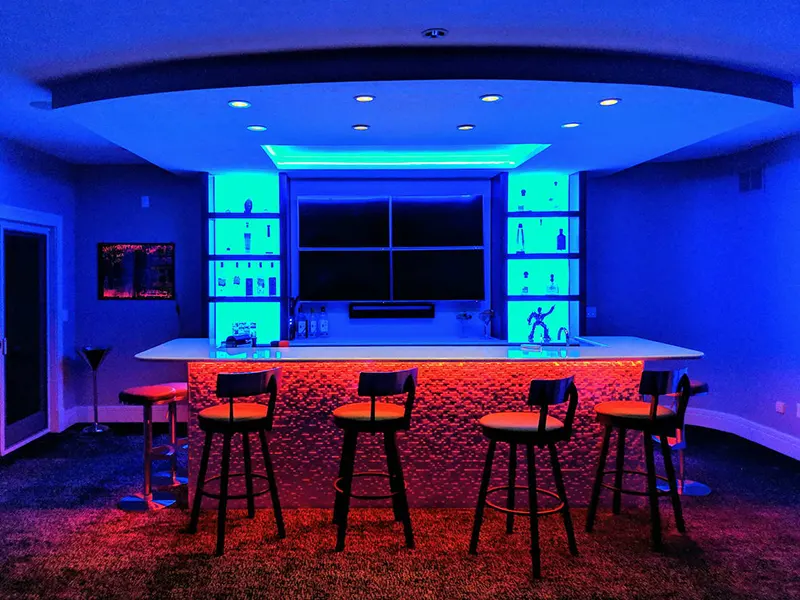

LED flexi strip used in Kitchen (77)

Kitchen Lighting

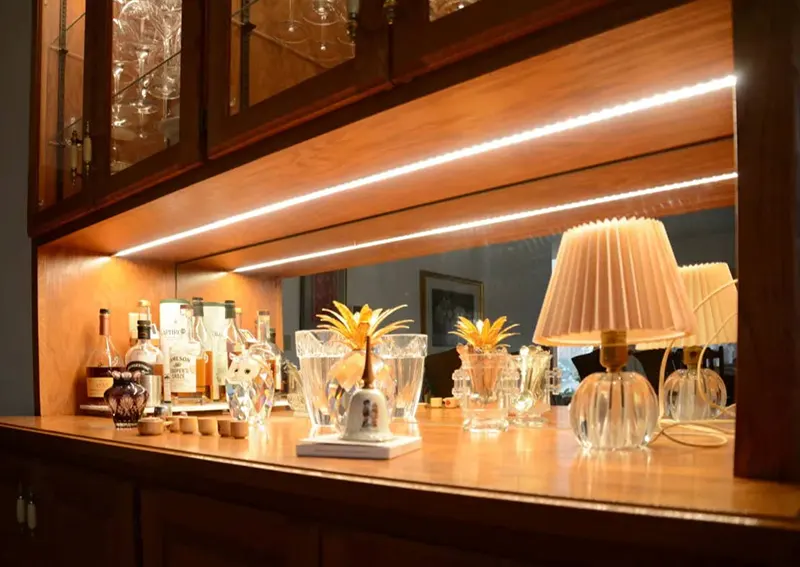

flexible LED strip lighting used in restaurant (2)

Restaurant Lighting

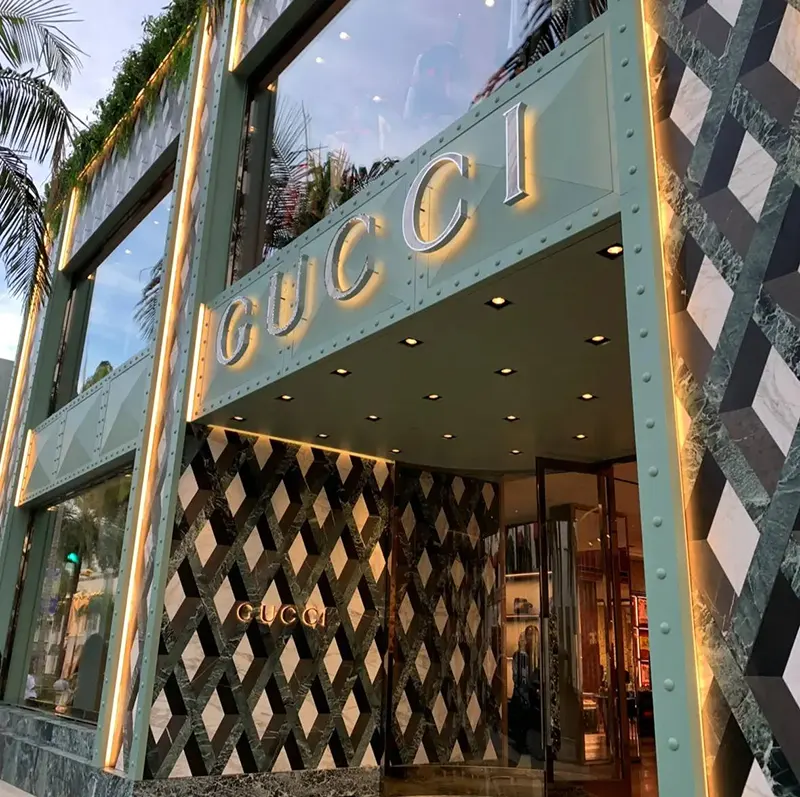

Flex LED ribbon used in commercial and architectural (22)

Commercial Lighting

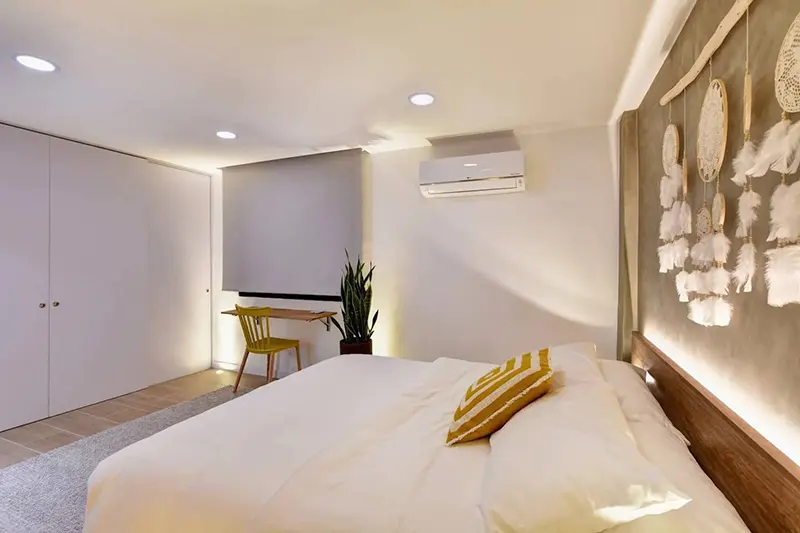

LED flex tape used in bedroom (15)

Bedroom Lighting

FAQ of Unitop 24V Mini Cuttable LED Flex with SMD2835 240LEDs/M:

What is the voltage, current and power consumption of this mini cuttable LED flex?

It is 24VDC, 0.6131A/M, 14.4W/M.

What is the efficacy of this LED flexible strip?

It is 100lm/W.

Is this mini cuttable LED flex waterproof?

Sorry it is only IP20, while we have waterproof version for choice. Just contact us directly.

Specification:

24V Mini Cuttable LED Flex with SMD2835 240LEDs/M

IES/LDT Files:

6000K

Spectrum Test Reports:

3000K
