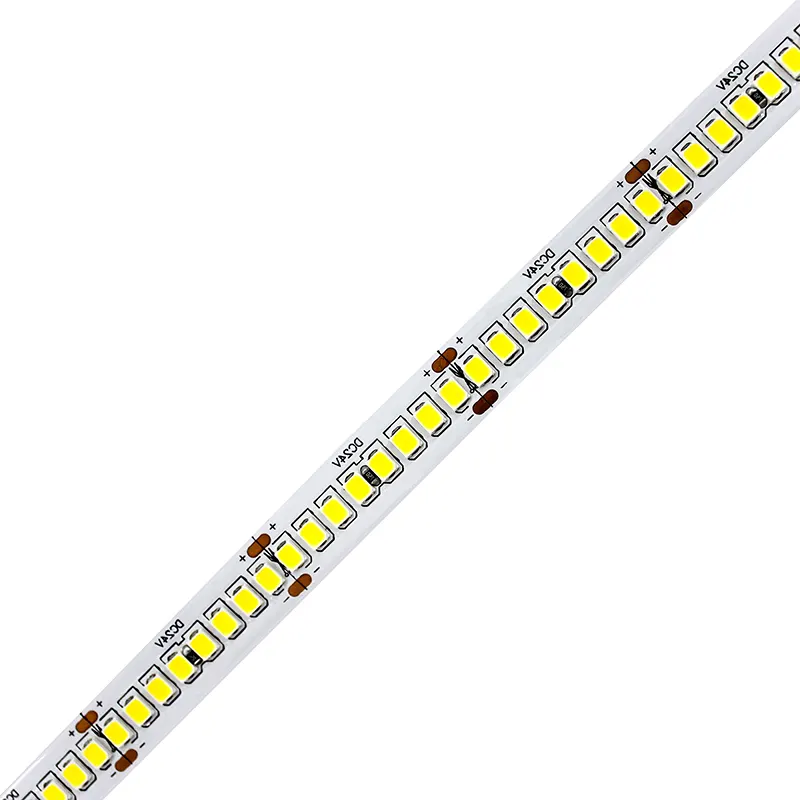

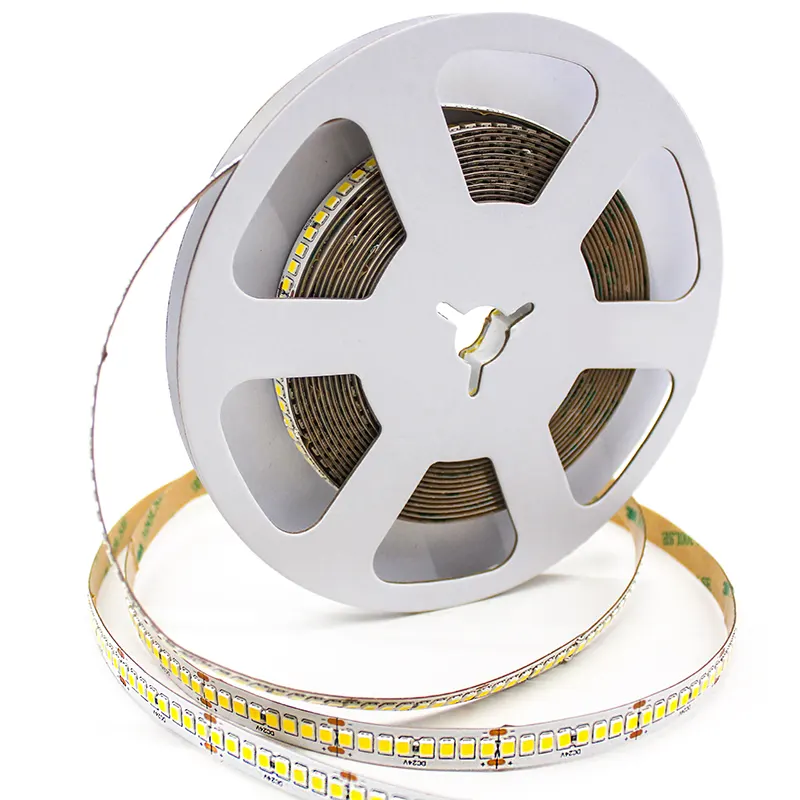

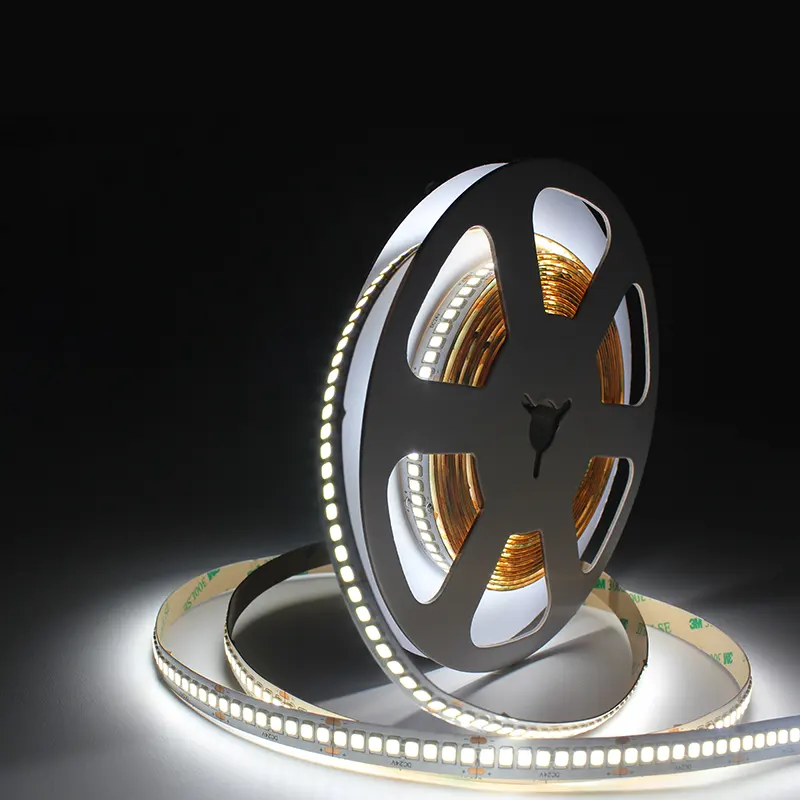

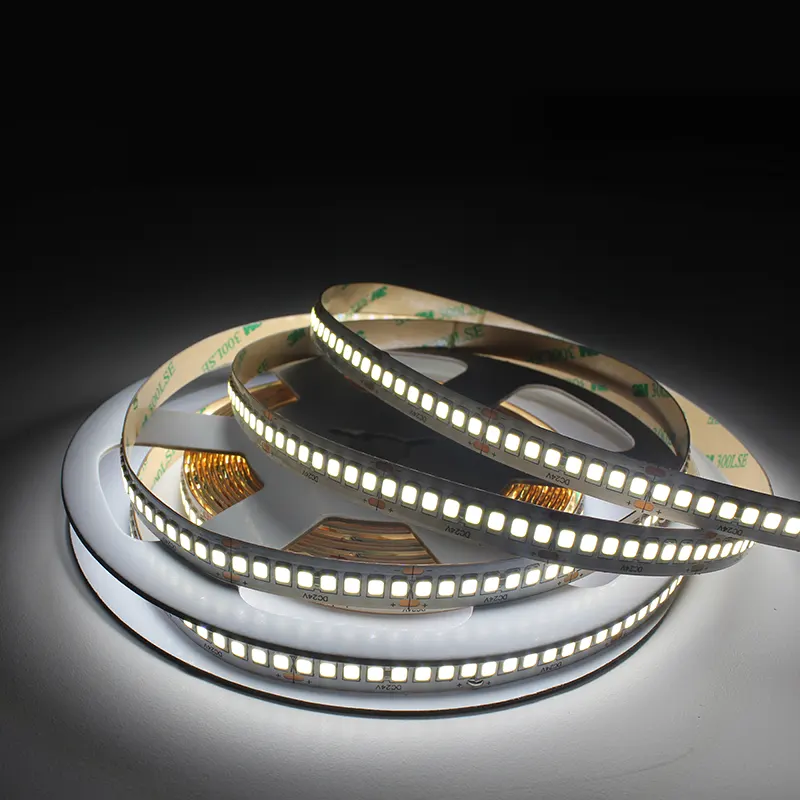

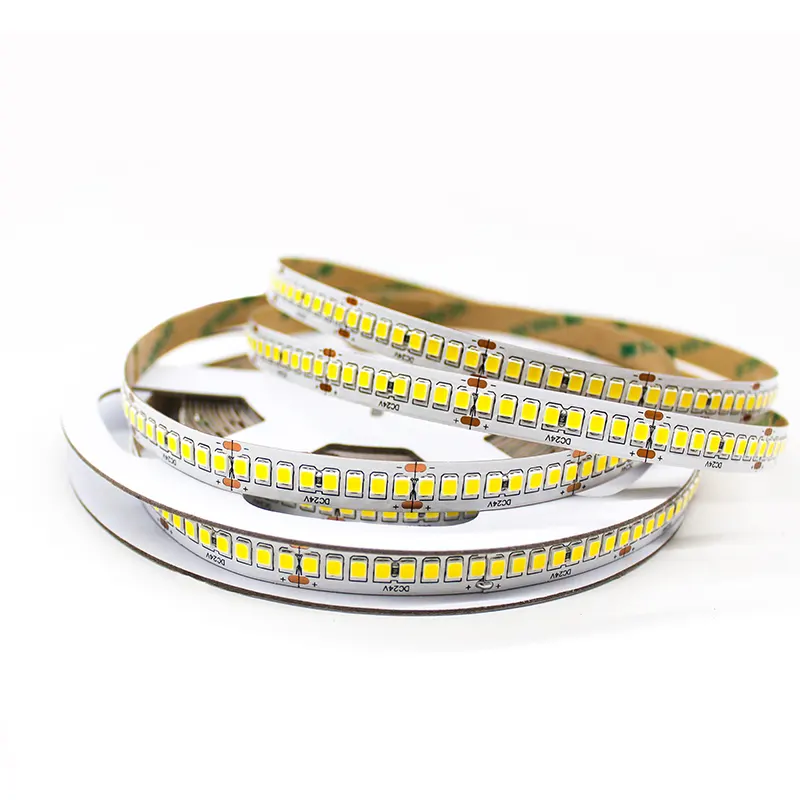

150lm/W High Lumen LED Flexible Light

LED flexible light is known as led flexible strip, led light strip, led ribbon, and led tape is a thin and flexible lighting solution for home, office, commercial decoration. This high lumen led flexible light can be used to backlight your cabinets or under your kitchen cabinets. LED flexible strips are available in many different colors such as red, blue, green, and white which you can combine or use on their own. It can be cut into any length that suits the needs of the individual’s application. This flexibility makes them perfect for everyone!

Model No.UTFS-HE1240-2410
LED Qty:240pcs/m
Voltage:DC24V
Wattage:19.2W/M
CCT:2700K/3000K/4000K/6000K
CRI:>80Ra

High Lumen LED Flexible Light from Unitop

Standard features:

– It’s flexible and easy to install.

– The LEDs are bright and energy-efficient.

– There is a wide range of CCTs available.

– You can cut it to the desired length, making installation easier still.

Emotional features:

– It’s an eco-friendly product that saves you money on your electric bill!

– It makes your home look like a million bucks without spending much money!

– It’s the perfect way to make an elegant statement in any decor.

It can be used:

– Indoors and outdoors for decoration, signage, and lighting purposes.

– In offices and commercial buildings.

It can also be used to light up and highlight art and collectibles by the art gallery or auction houses. Thus allowing potential buyers to walk around at night, viewing objects from all angles while getting a good impression of how they will look on display during business hours when more natural light is available.

Unitop 150lm/W high lumen LED flexible light has various CCT options as below:

LED Flexible Strip CCT options

Our high lumen LED flexible light comes with various IP rating options:

LED Flexible Strip IP Rating Options

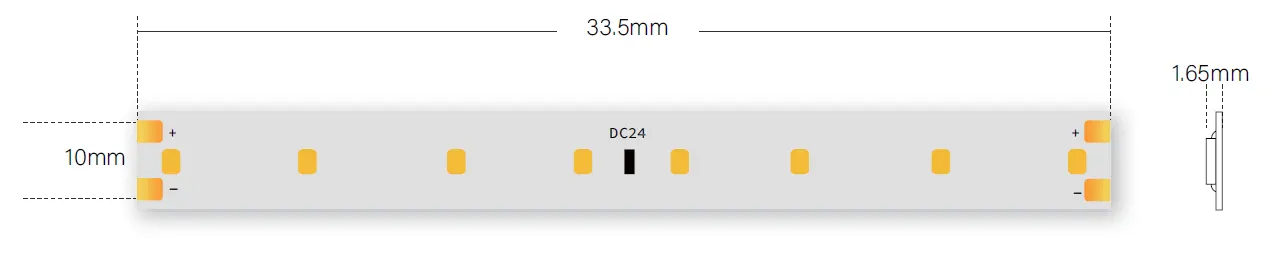

The cutting size of our Unitop 150lm/W high lumen LED flexible light:

cutting size of led flexible light

This Unitop high lumen LED flexible light is with below high efficacy information:

CCT (°K)EfficacyLumen/M
2700K145lm/W2784lm/m
3000K145lm/W2784lm/m
4000K150lm/W2880lm/m
6000K150lm/W2880lm/m

How to install our high lumen LED flexible light? You can find the wire diagram as below:

LED Flexible Strip wiring

Want to know the packing information? See below:

LED flex strip package

Below two cautions need your highest attention:

LED flex strip cautions

Please also pay attention to below issues while installing our high lumen LED flexible light:

1. Do not install the flexible light strip in an environment where excessive heat may occur.
2. Do not go beyond the recommended maximum run length.
3. Use only copper wire. Use wires rated for 176°F (80°C) minimum and certified for use with external electrical equipment connections.
4. Do not install IP20 rated products LED outdoors or in humid environments.
5. Excessive handling, bending, and pressure may damage the product and void the warranty.
6. Improper selection and installation of cables may cause the cables to overheat, resulting in fire.
7. Do not connect the product directly to high voltage or AC.
8. Installation must be in accordance with local and national electrical code regulation.
9. To ensure safety and proper installation, our strips should be installed by a qualified, licensed electrician.

High lumen LED flexible light can be used for a variety of different applications, some of which are listed below:

-Decorating: high lumen LED flexible light can be used to decorate cabinets, bookshelves, under countertops, and more. The possibilities are endless!

-Home Theater/Media Room: high lumen LED flexible light can be used to create an ambient lighting effect in home theaters and media rooms.

-Kitchen: high lumen LED flexible light can be used as task lighting in kitchens. It is also a great way to add extra light to dark corners.

-Bathroom: high lumen LED flexible light can be used as task lighting in bathrooms. It is also a great way to add extra light to dark corners.

-Bedroom: high lumen LED flexible light can be used to create a relaxing ambiance in bedrooms.

-Stairs: high lumen LED flexible light can be used to illuminate stairs, making them safer to walk down at night.

-Party Decorations: high lumen LED flexible light can be used to create flashy party decorations.

-Exterior Lighting: high lumen LED flexible light can be used for exterior lighting applications such as porch lights, pathway lighting, and more.

Below you will find some examples of the applications of our high lumen LED flexible light:

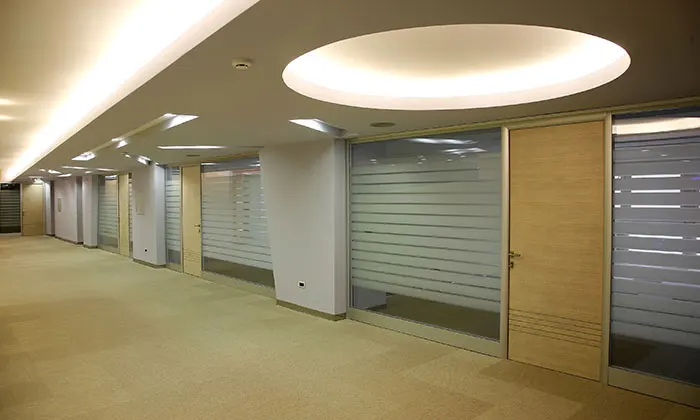

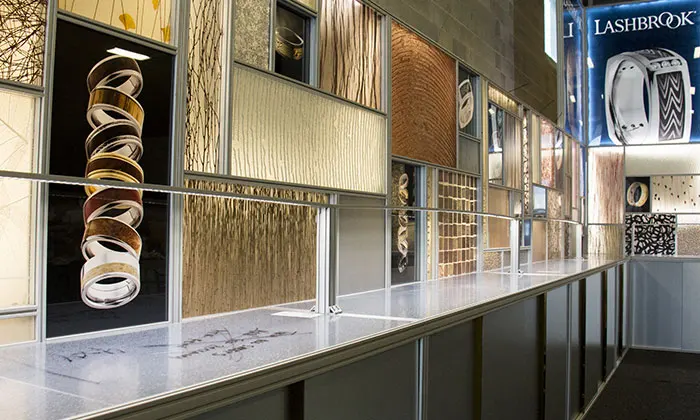

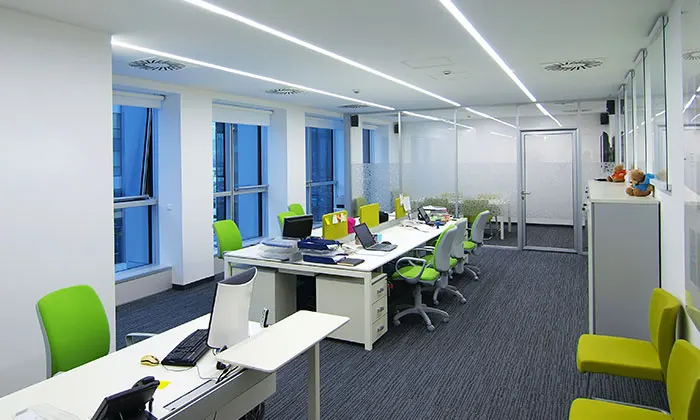

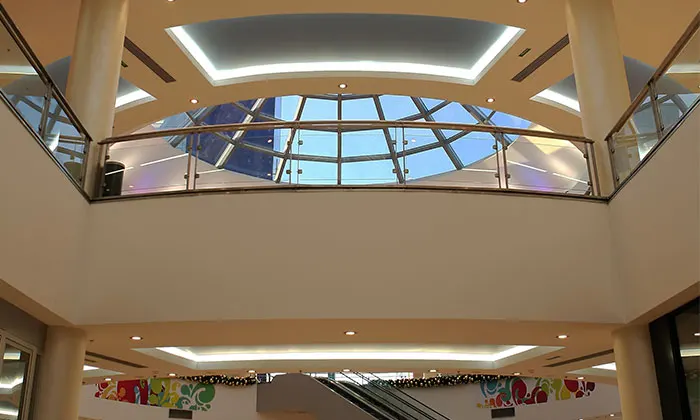

Flexible LED strips in office lightingOffice LightingFlexible LED strips in display and showcase lightingDisplay and Showcase LightingFlexible LED strips in commercial lightingCommercial LightingFlexible LED strips in ceiling lightingCeiling Lighting

Below you will find the FAQ of our high lumen flexible light strips:

What are the benefits of using high lumen LED flexible light?

– The high lumen LED flexible lights are thin so that you can hide them behind the cabinets or under the furniture for less visibility.

– Unlike other types of led lights that emit an intense led light, led flexible strip lights only emit led light without any led heat emission.

– Another benefit of lhigh lumen LED flexible light is that it uses led power consumption, which means energy-saving and led efficiency.

What are the available lengths of high lumen LED flexible light?

This Unitop high lumen LED flexible light can be cut every 8 LEDs, so you can configure them in various ways. The LED flexible led strip lights come with 5-meter length for each roll. Each roll comes with 240 LEDs per meter. If you need longer strips, join more than one set by connecting the adhesive backing tape on end to end. Do not use wire nuts – it will damage the led tape light quality and may cause overheating or fire hazard. When joining product together follow the led strip lights wiring diagram.

How to install Unitop high lumen LED flexible light?

Installing high lumen LED flexible light is very easy and can be done by almost anyone. The led light strips come with an adhesive back that will stick to most surfaces. To connect the two led light strips together, you will need to cut off the end of one led light strip and then attach it to the other using the adhesive backing on both sides. After the installation is complete, test your work by plugging in the transformer and turning on the switch. If you installed everything correctly, your led lights should turn on, and you will be able to enjoy your new high lumen LED flexible light.

Specification:

High Lumen LED Flexible Light

IES/LDT Files:

6000K: IES | LDT | PDF

Spectrum Test Reports:

6000K
