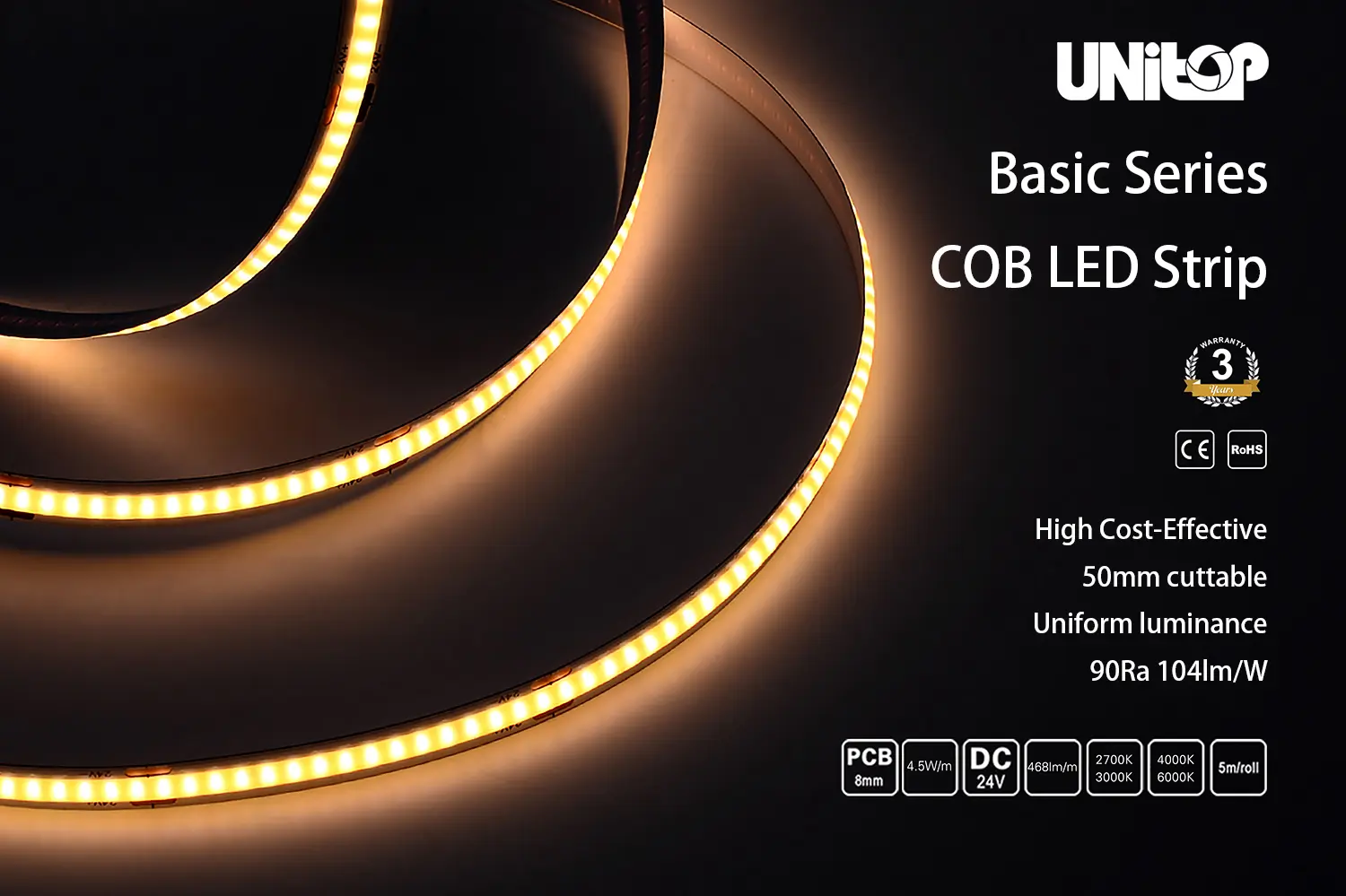

COB LED strip with 320LEDs/M, 8mm width PCB

This flexible COB LED strip with 320 LEDs/M, 8mm width PCB belongs to our Basic Series which is the most cost-effective solution. If you are looking for the lowest prices, this can be the perfect solution. While low prices do not mean low quality, we also offer 3 years warranty for all our strips.

Modelnr.UTFS-BSCOB320-2408
LED Qty:320pcs/m
Spanning:DC24V
Wattage:4.5W/M
CCT:2700K~6500K
CRI:>90Ra
COB LED Strip-320-8mm-5m

Unitop Basic Series COB LED flexible strip has so many outstanding features, including below:

Geen lichtvlekken:

Wilt u geen lichtvlekken zien op LED strips? Waarom probeert u niet Unitop COB flexibele LED strips? Zelfs in vergelijking met LED strips met SMD2110 LED's, 700LEDs/M, zult u zien dat de COB LED strip veel zachter is zonder lichtvlekken.

1. 2110 vs COB

Hoge CRI meer dan 90Ra:

The CRI of the COB LEDs we use is more than 90Ra. Thus, we call our COB LED strip a High CRI COB LED strip. Generally speaking, CRI(color rendering index) values of 90 and above are excellent. However, values below 80 are generally considered not good.

CRI-vergelijking

Minimum gele vlekken:

Want minimum yellow spots? Unitop COB LED strips have smaller viewing angles of yellow spots than other strips available in the market. You will feel more comfortable under such a humanistic lighting environment.

2. Gele vlek
2. Gele vlek 2

Kleurzuiverheid:

Wil je je niet vreselijk voelen in het licht? Dan heb je een strip LED COB met een hogere kleurverzadiging nodig. Dankzij de keuze van de beste fosfor en kernband.

3. Kleurzuiverheid

Kleurconsistentie:

Chips are chosen based on minimum voltage current scope, and the used Phosphofor for each color temperature chip is from the same chip brand and type. This ensures all the strips which we provided with the same color. You will get even no complaints from your clients about the color difference.

4. kleurconsistentie

Inverted COB Gold-Free Technology:

Still, worry about the heat dissipation of the strips? Thanks to the Inverted COB Gold-Free Technology, the heat is released directly through the FPC, and you will feel cooler on COB LED strips than on common LED strips. Finally, there will be no complaints from your clients about LEDs burnt out due to heat problems.

5. Omgekeerde COB Goudvrij

Circuit Board (FPCB):

The highest quality flexible circuit board(FPCB) is chosen to ensure no difference in brightness from the beginning to the end. Below you will see which types of FPCB we are using. You will feel assured about the quality of our strips.

6. FPCB

Knippen van COB LED strips:

There are minimum cutting lines and pads on the COB strips. As the distance between two LED chips is too close, we suggest you cut the COB strips while light on the strips with lower current. Typically DC12V COB LED strips can be cut every 25mm, while DC24V COB LED strip lights are cuttable every 50mm.

7. FPC snijden
8. Snijgrootte

Beste kwaliteit silicone:

Not only the chips but also the silicone which we used shall be the best quality without light spots and uniform brightness. The silicone gel which is used has below advantages: soft, smooth, and strong adhesion. Low-quality silicone gel is fragile and easy to be separated from FPC.

9. Goede kwaliteit silicone

Waterdicht:

Want waterproof-type COB LED strips? Try from Unitop, please. We have 4 types: IP65(Silicone Glue), IP66(Silicone Tube), IP67(Extrusion Molding), and IP68(Silicone Tube & Silicone Glue). With waterproof technology, you can use our COB strips in any situation you want. P.S.: Our best-seller Basic Series COB LED strips are currently available in IP20, IP65, and IP66.

10. Waterdicht
Unitop Modelnr.KleurCCTCRIKijkhoekLumen
LM/M
Werkzaamheid LM/WWerkspanningStroom (mA/M)Vermogen
UTFS-BSCOB320-2408WWWarm wit2700K≥90Ra180°40088.924VDC187.54.5W/M
UTFS-BSCOB320-2408WWWarm wit3000K≥90Ra180°427.194.924VDC187.54.5W/M
UTFS-BSCOB320-2408NWNatuurlijk wit4000K≥90Ra180°477.5106.124VDC187.54.5W/M
UTFS-BSCOB320-2408CWKoel Wit6500K≥90Ra180°49511024VDC187.54.5W/M

Let op:

1. Suggereerde de installatie van COB LED-strips worden gemaakt door de fabrikant, een agent of andere gekwalificeerde personen.

2. Bestudeer de bovenstaande specificatie vóór de installatie.

3. De bovenstaande gegevens zijn gebaseerd op ons standaardproduct. Gelieve te onderwerpen aan uw daadwerkelijke productgegevens als er een licht verschil is.

4. De bovenstaande schema's zijn van ons standaardproduct. Gelieve te onderwerpen aan uw bestaand product als er een licht verschil is.

5. Het wattage van de LED-driver moet ten minste 1,2 maal het totale wattage van de gebruikte LED-strips bedragen.

6. Om veiligheidsredenen mogen de strips niet rechtstreeks op het lichtnet worden aangesloten.

7. Elke zure of alkalische stof is verboden.

8. Geen voorafgaande kennisgeving indien dit product of deze specificatie wordt bijgewerkt.

9. Unitop behoudt zich het definitieve recht voor de bovenstaande specificatie uit te leggen.

Wij raden u vriendelijk aan onderstaande aluminium profielen, eindkappen, afdekkingen, montageclips te gebruiken bij deze COB LED strip.

Als u specifieke wensen hebt voor accessoires, aarzel dan niet om het ons te laten weten.

Why do you call this strip “Basic Series COB LED strip”?

Because this series of strips are our most cost-effective version, if you are looking for the lowest prices, this can be the perfect choice for you.

Specificatie:

COB LED strip with 320LEDs/M, 8mm width PCB

IES Files:

2700K/3000K/4000K

Spectrum Test Rapporten:

2700K/3000K/4000K/6500K
