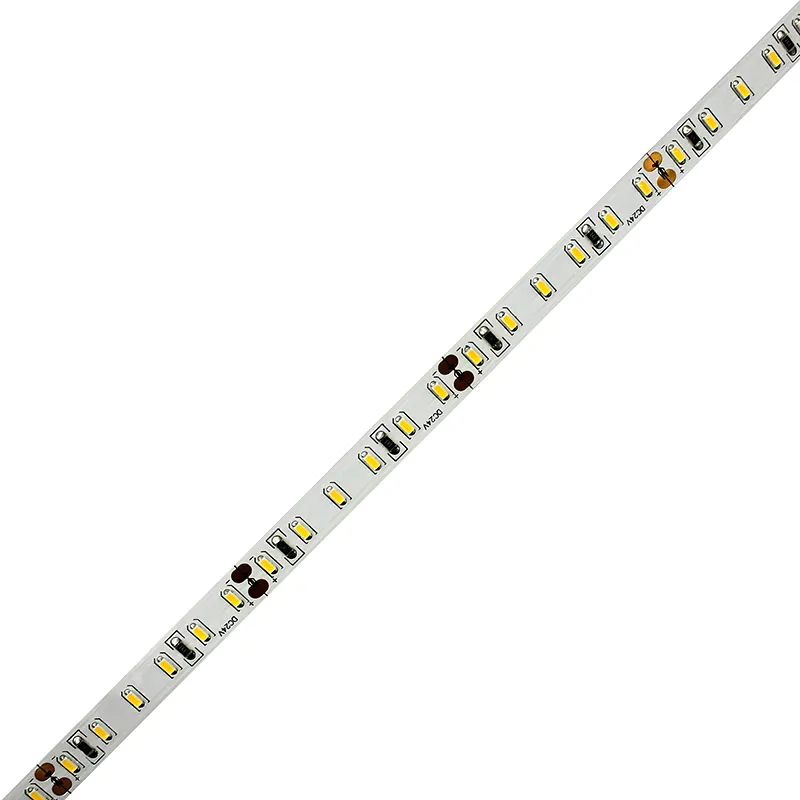

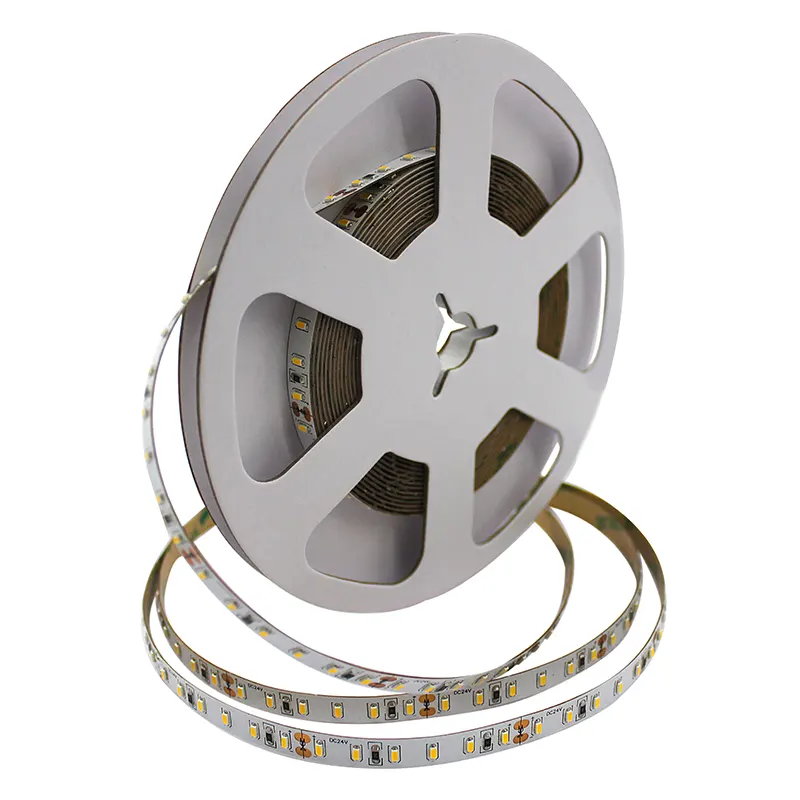

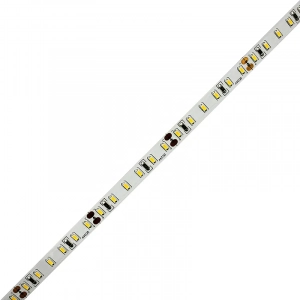

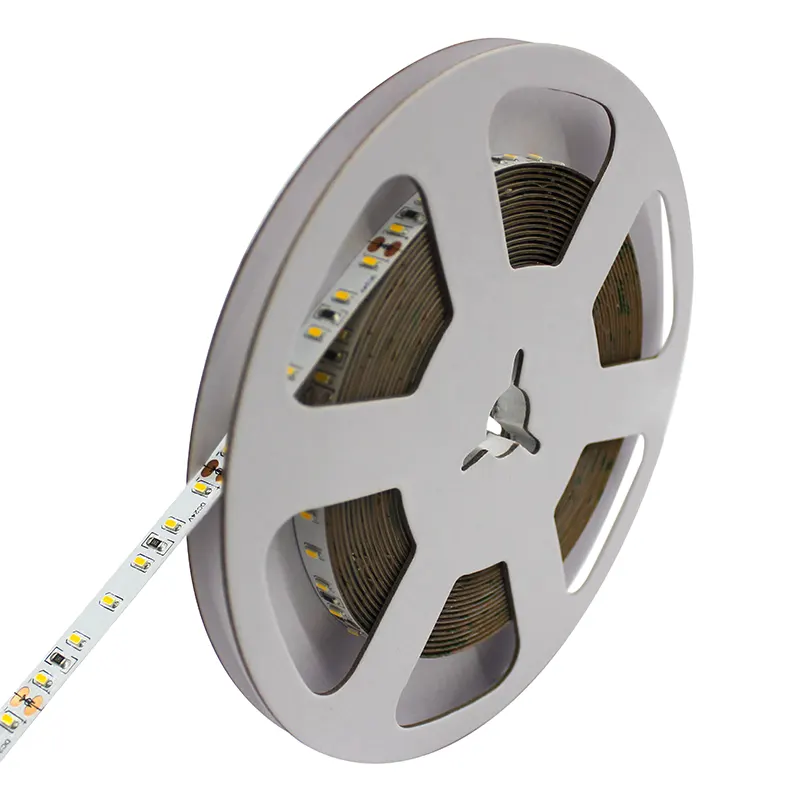

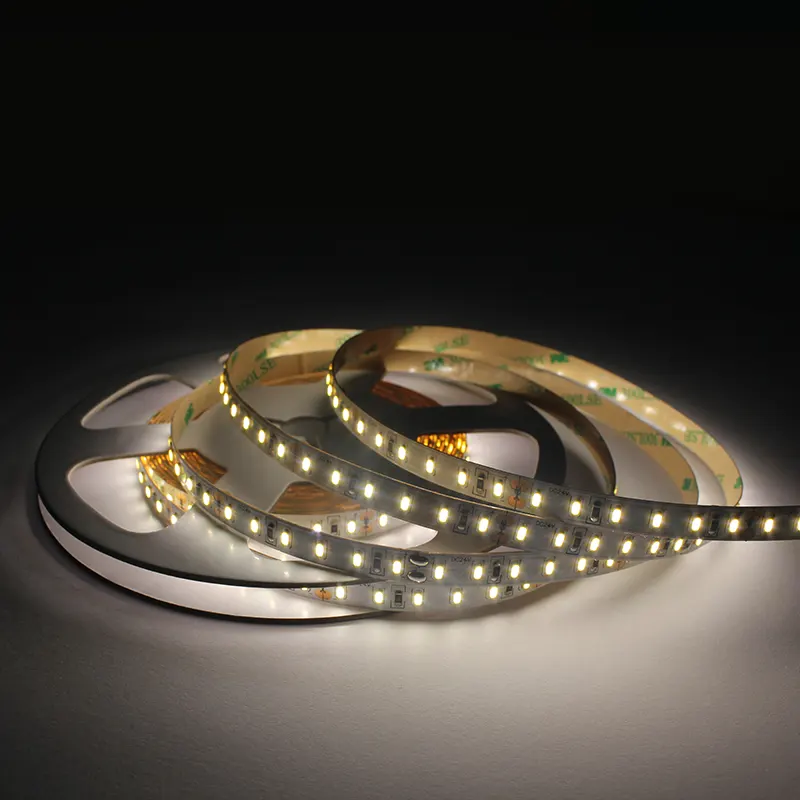

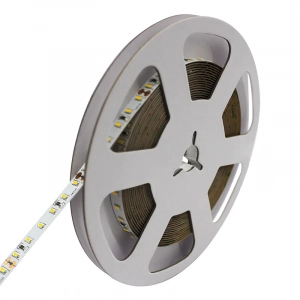

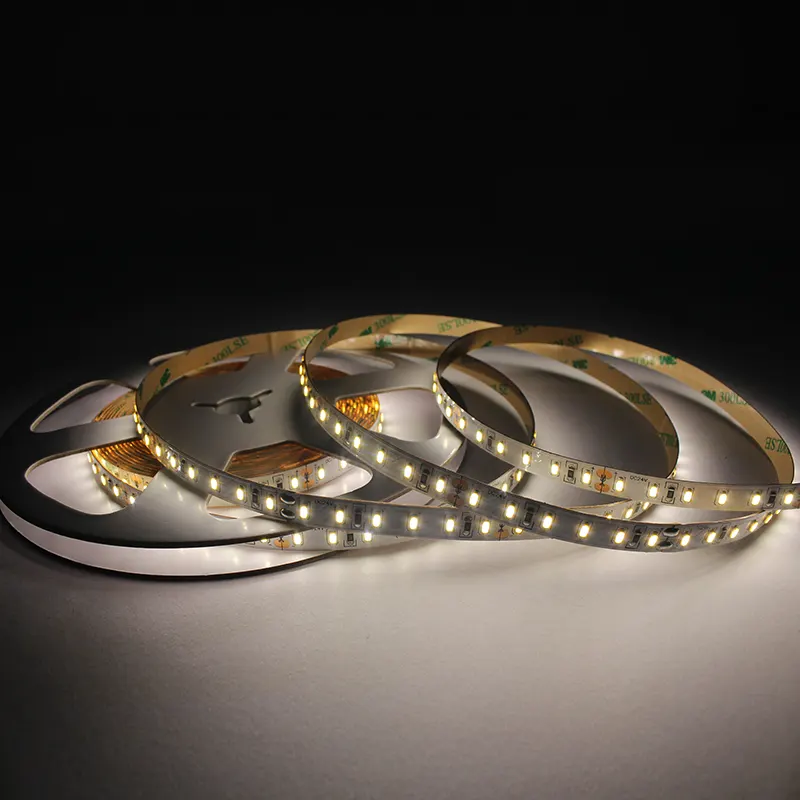

Flexible LED-Lichtstreifen mit SMD3014 120LEDs/M

This flexible LED light strip is perfect for DIY enthusiasts, developers, entrepreneur inventors, and also for holiday decoration. It’s non-waterproof, flexible, easy to cut and reconnect so you can connect them in any shape or size to meet your needs.

Modell Nr.	UTFS-CS4120-2408
LED-Anzahl:	120Stück/m
Spannung:	DC24V
Wattleistung:	9.6W/M
CCT:	2700K~6000K
CRI:	>90Ra

Beschreibung Spezifikation Anwendung FAQ Downloads

Flexible LED Light Strip With SMD3014 120LEDs/M from Unitop

Make your life more convenient and easier with high efficiency SMD3014 flexible LED light strip that provides uniform illumination.

You can effortlessly cut and reconnect them to work with any project of your choice.

These LEDs have a CRI of 90, meaning they provide great colors and contrast, ensuring you excellent image quality.

They also have the ability to last 50000 hours on average, which is a long enough time for you to forget about replacement.

Unitop Flexible LED Light Strips are with below CCT options:

Our Flexible LED Strip lighting comes with below IP rating options:

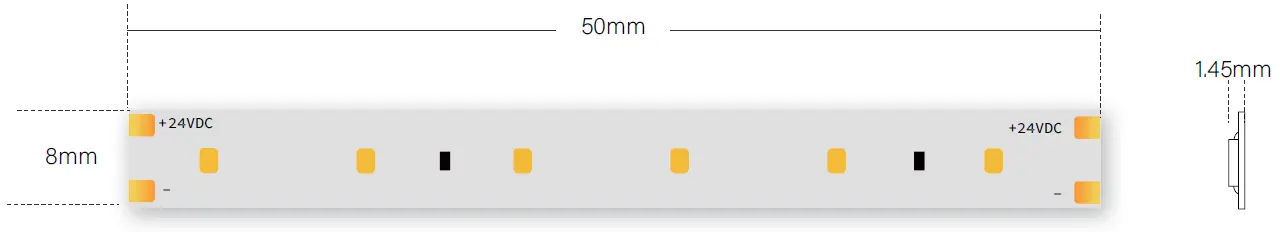

The cutting size of Unitop Flexible LED Light Strip:

This Unitop Flexible LED Strip is with below lumen:

CCT (°K)
2700K
3000K
4000K
6000K

Wirksamkeit
75lm/W
75lm/W
89.28lm/W
89.28lm/W

Lumen/M
757.22lm/m
757.22lm/m
901.4lm/m
901.4lm/m

How to install our Flexible LED Light Strip? You can find the wire diagram as below:

Möchten Sie die Verpackungsinformationen wissen? Siehe unten:

Die folgenden zwei Hinweise erfordern Ihre höchste Aufmerksamkeit:

Please also pay attention to below issues while installing our Flexible LED Light Strip:

1. It is strictly prohibited to press the LED with hard and also sharp items:The LED strip light is LED light bonded on copper wire or adaptable PCBs. When the item is installed, it is advised not to push the surface of the LED straight with your fingers or hard items. It is strictly prohibited to tip on the LED strip lights, so as not to damage the LEDs and let the LED light not light up.

2. LED strip lights cutting: When the light strip is set up, according to the length of the site installment, if there is a cutting situation, the light strip ought to be cut from the location marked with the scissors icon on the surface of the light strip. It is strictly forbidden to cut the light strip from other locations without cutting marks, which will create the strips to not light up. After the water resistant LED strip light is cut, it needs to be waterproofed at the cut point.

Flexible LED Light Strip With SMD3014 120LEDs/M has a variety of applications.

Residential Lighting: These have been used successfully to light up staircases, hallways, kitchens and bathrooms. Some people also use these lights for under cabinet lighting to give their kitchen a modern look.

Retail Lighting: This type of lighting is usually placed underneath shelving units to highlight products on display. This makes shopping more attractive as the products are being displayed in an eye-catching way which is perfect for increasing sales figures.

Nachstehend finden Sie einige Beispiele für Anwendungen:

Beleuchtung im Badezimmer

Beleuchtung im Schlafzimmer

Kommerzielle Beleuchtung

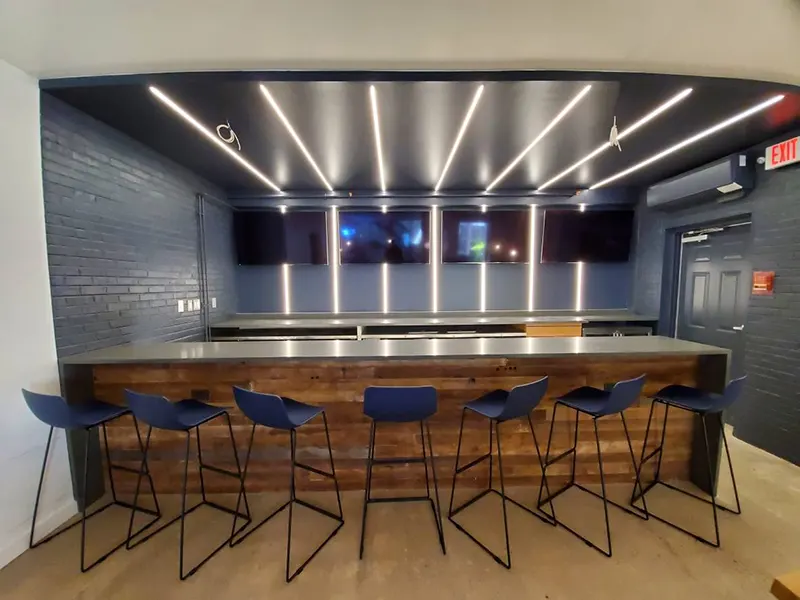

Restaurant-Beleuchtung

FAQ of Unitop Flexible LED Light Strip With SMD3014 120LEDs/M:

Are LED strip lights dimmable?

They are undoubtedly, but you likewise require to ensure you have a dimmable driver (unless you’re utilizing plug and play strip packages certainly). This is since LED strip lights rely upon a constant current source which can just be supplied by a driver that changes an a/c power supply to DC.

Do LED strip lights require a driver?

While we get on the topic of drivers, if you’re not utilizing plug as well as play strip lighting sets, you will need a LED driver to supply power to your strip lights. When discovering the LED transformer you require, the electrical power of the driver requires to cover the electrical power of the strip it will certainly be powering, plus 20%. So a 5M size LED strip with 60pcs LED chips around 25W would need a 30W LED driver.
